S410 174269 turbocharger 6I4574 116-9574 0R7200 136-7619 Various with engine 3406E C15 174248 466423-0004

Product description:

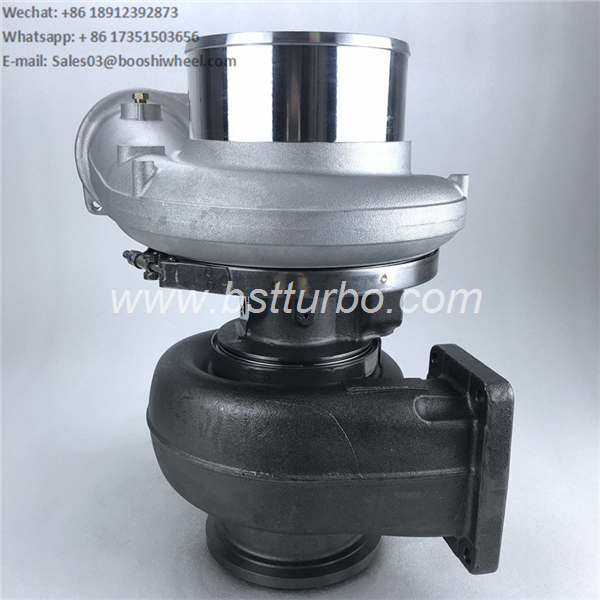

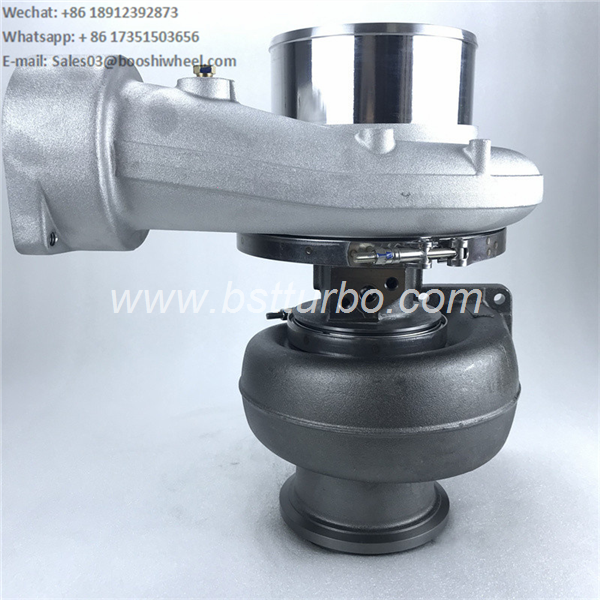

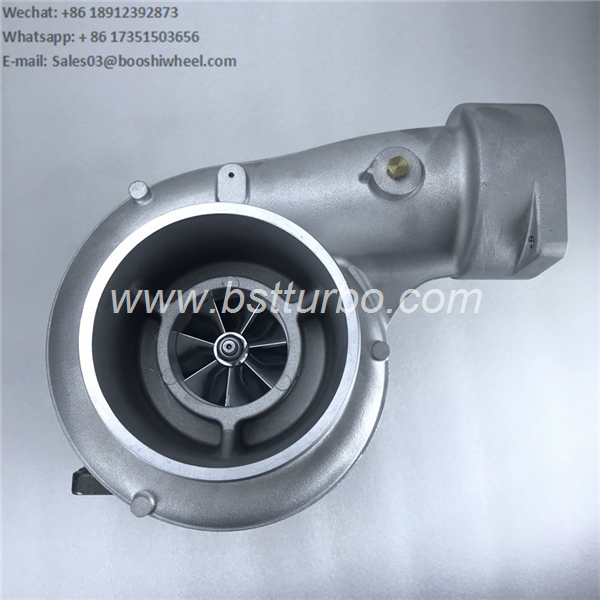

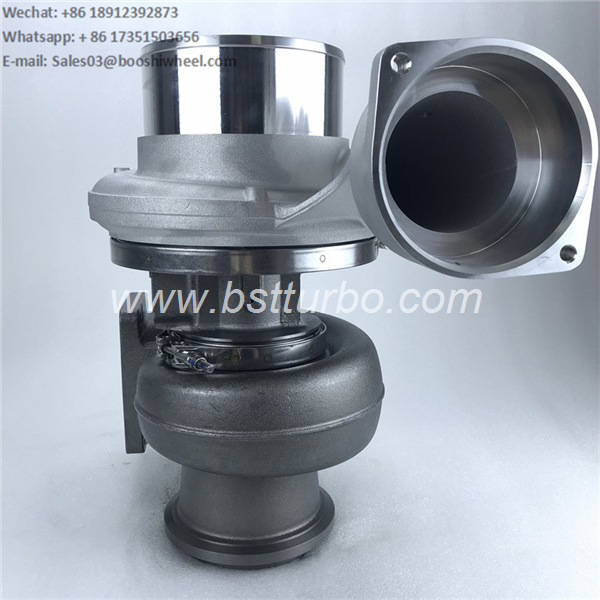

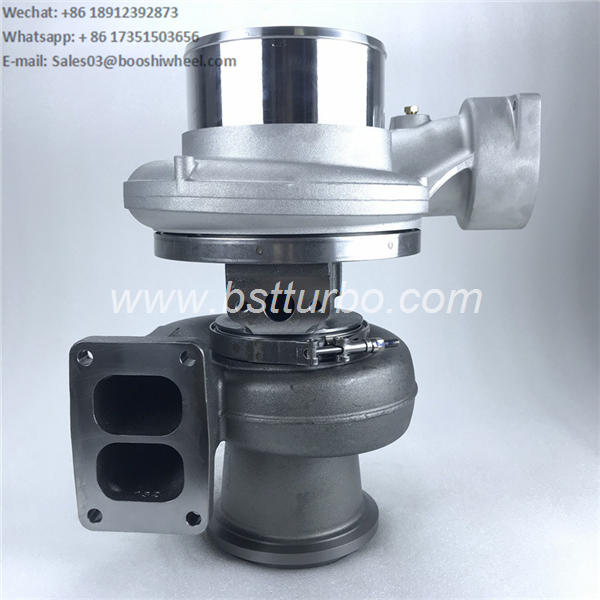

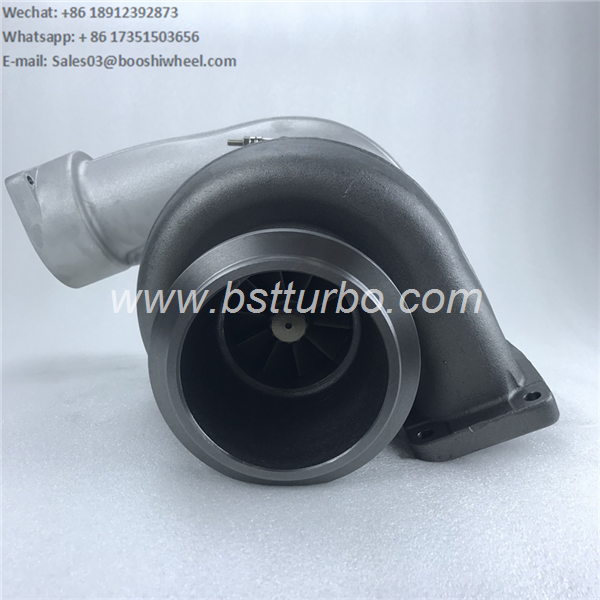

Turbo Model : S410 174269

Fuel : Diesel

Part Number : 174269

Brand Name : Booshiwheel

Displacement : 14.64L, 14640 ccm

KW : 280/325/305/435 HP

RPM Max : 1800

OE number : 0R-6694, 0R6694, 0R-6935, 0R6935, 0R-6984, 0R6984, 0R-7142, 0R7142

Year : 1996-04

Applications : 1996-07 Caterpillar Various with 3406E Engine

Welcome to contact us :

Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com

Specification

Part Number	174269
OE number	6I4574, 116-9574, 124-3030, 141-8936, 0R6694, 0R6935, 0R6984, 0R7200, 160-5550, 0R7284, 0R7200, 136-7619, 0R7142
Year	1996-07
Description	Various
Manufacturer Part Number	466423-0004
CHRA	174248 (451686-0006, 169062) $450.00 NEW IN STOCK, MADE IN USA
Turbo Model	S410, S410S019
Engine	3406E, C15
Engine Manufacturer	Caterpillar
Displacement	14.64L, 14640 ccm
KW	280/325/305/435 HP
RPM Max	1800
Fuel	Diesel
Angle α (compressor housing)	302°
Angle β (turbine housing)	72.5°
Bearing Housing	174246 NEW IN STOCK
Turbine Wheel	169346 (Ind. 81.74 mm, Exd. 91.44 mm, 10 Blades) NEW IN STOCK
Comp. Wheel (Hipped)	171691 (Ind. 74.57 mm, Exd. 105.3 mm, Trm 53, 7+7 Blades, Billet) $149.00 NEW IN STOCK
Back plate	167783 $47.75 NEW IN STOCK
Heat shield Number	167790 NEW IN STOCK
Repair Kit	318396 (318397)(1253400750) $89.90 NEW IN STOCK
Turbine Housing (W. Wastegate)	146697
Compressor Cover	174258
Actuator	170386 $99.95 NEW IN STOCK
Gasket Kit	318417 $14.00
Manufacturer	Borg Warner - 3K - Schwitzer, BWTS USA
Replaced By	466423-0001, 466423-0003, 466423-0004, 466423-0005, 466423-9001, 466423-9003, 466423-9004, 466423-9005, 170083, 466423, 169060

Application:

1996-07 Caterpillar Various with 3406E Engine
