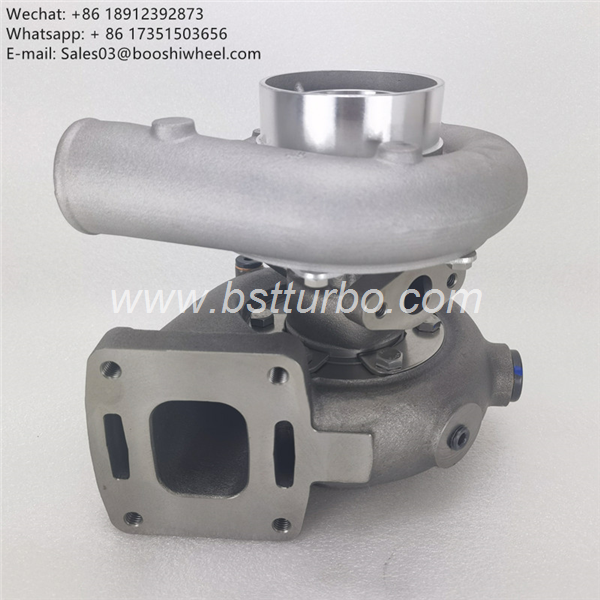

New Turbo 889341 8M0098619 S200W 319411 319683 35242181F C5240136C 12599700000 Turbocharger for VM Ship with MD704LH Engine

Product description:

Turbo Model : S200W

Brand Name : Booshiwheel

Welcome to contact us :

Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com

Products description

Part Number	319683
OE Number	524 2109F, 35242109F, C5240136C
Year	2004-07
Description	Ship Marine
Manufacturer Part Number	319411
Turbo Model	S200W, S200W/64H12AACSM/0.50YR1
Engine	MD704LH
Engine Manufacturer	VM
Displacement	2.8L, 2800 ccm
KW	147/200
RPM Max	2300
Fuel	Diesel
Angle α (compressor housing)	245°
Angle β (turbine housing)	315°
Bearing Housing	319620 (668462)(318330)(303040004)(Oil Cooled)
Turbine Wheel	319445
Comp. Wheel	318077 (Ind. 42.77 mm, Exd. 63.55 mm, 7+7 Blades)(302040001)
Back plate	167744 (166537)(1253200300)(304020003)
Heat Shield	198761 (306010011)
Repair Kit	318382 (318383)(1253200750)(309200001)
Turbine Housing (Water Cooled)	319443
Compressor Cover	319618
Application	2004-07 VM Ship with MD704LH Engine

Applications

2004-07 VM Ship with MD704LH Engine
