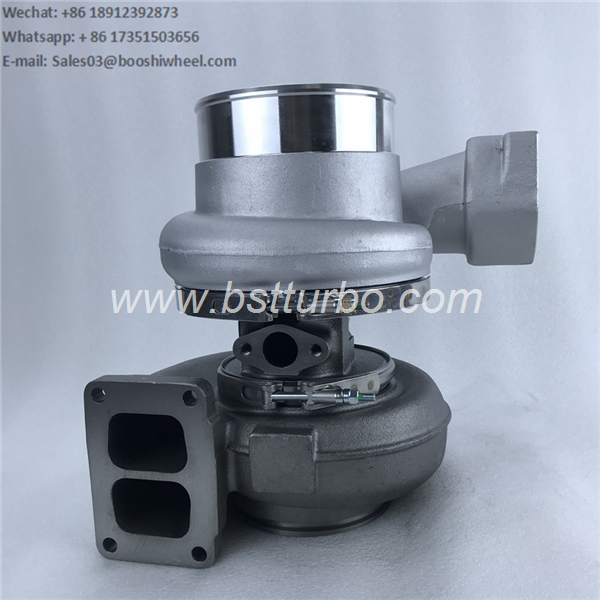

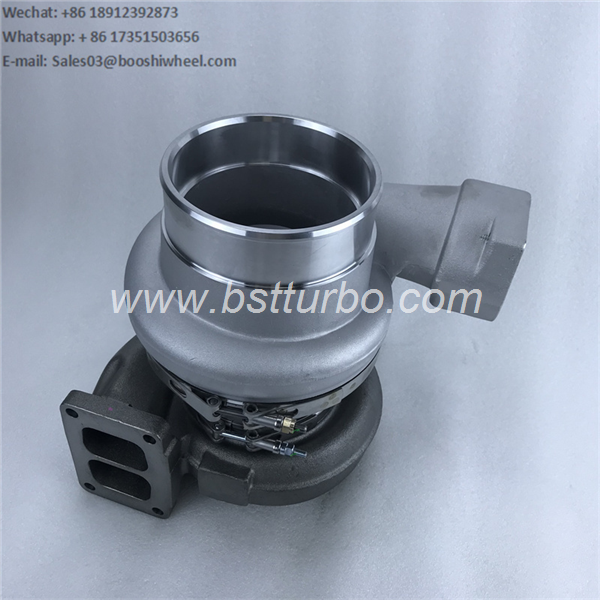

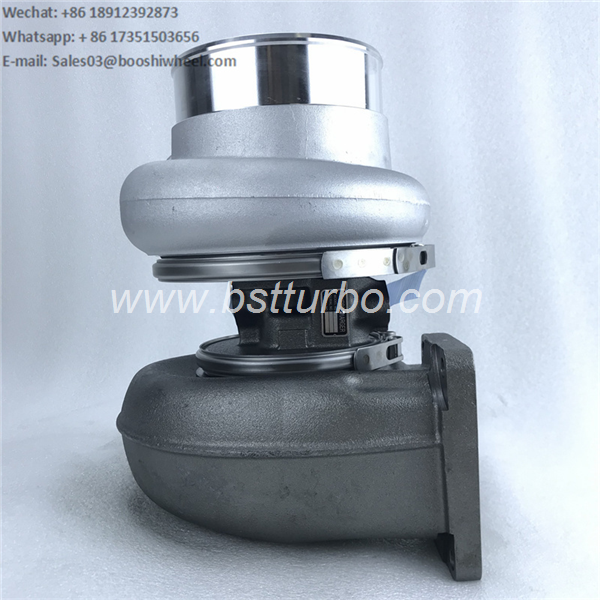

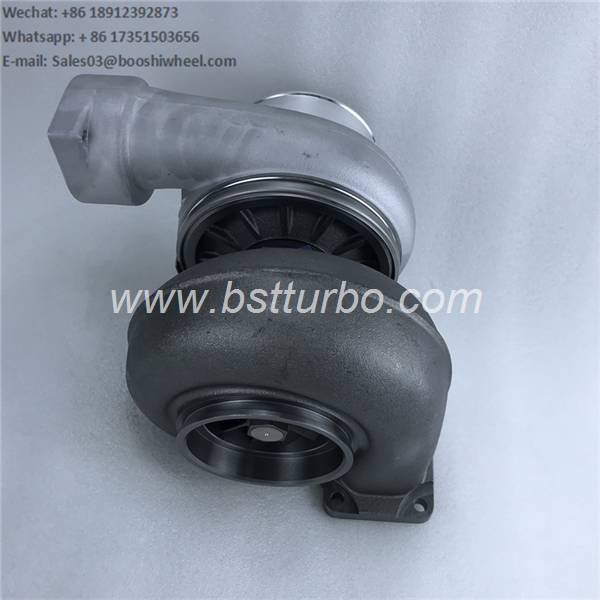

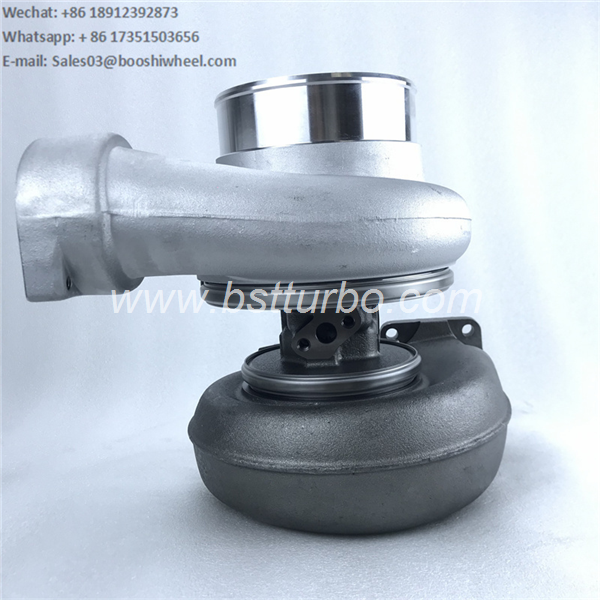

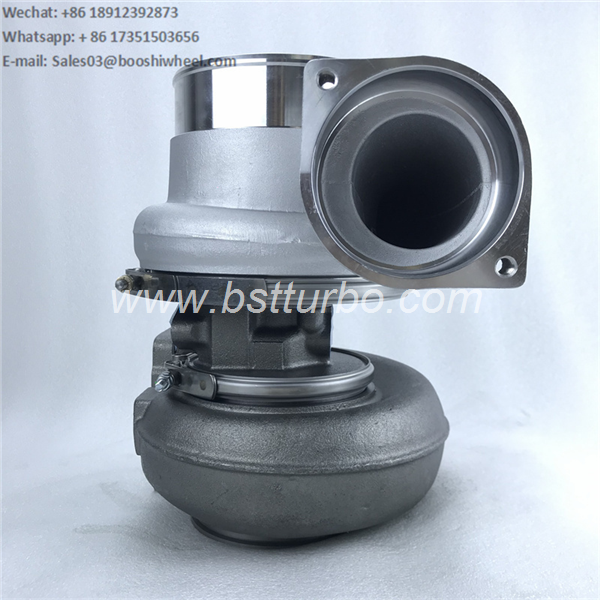

Turbo TV8112 465332-5001S 465332-0001 0R5370 1N4070 4W0208 9N2702 Turbocharger for Caterpillar 3406 DITA

Product description:

Turbo Model : TV8112

Fuel : Diesel

Part Number : 465332-5001S

Brand Name : Booshiwheel

Displacement : 14.6L, 14600 ccm

OE number : 9N2702

Applications : Caterpillar Industrial with 3406 DITA Engine

标签 : Turbocharger

Welcome to contact us :

Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com

Specification

Part Number	465332-5001S
Previous Part Number	465332-0001, 465332-0002, 465332-0003, 465332-0004, 465332-0005, 465332-1
OE number	0R5370, 1N4070, 4W0208, 4W208, 6N9624, 6N9625, 9N2702, 9N2703
Description	Industrial Construction Equipment
CHRA	408742-0011 (408742-5011S, 408742-0036, 408742-0080, 0R5926, 0R7105, 134-3668, 1343668, 1N4356, 9N3676, 180024-0000)(1101081707) $668.00 NEW IN STOCK, MADE IN USA
Turbo Model	TV8112
Prefix	65B, 90U, 92U, 85X, 86X, 87X, 13B, 2EB, 2XD, 63X, 42X
Engine	3406 DITAJWAC, 3406-Truck DITA
Fuel	Diesel
Displacement	14.6L, 14600 ccm
Angle α (compressor housing)	274°
Angle β (turbine housing)	278°

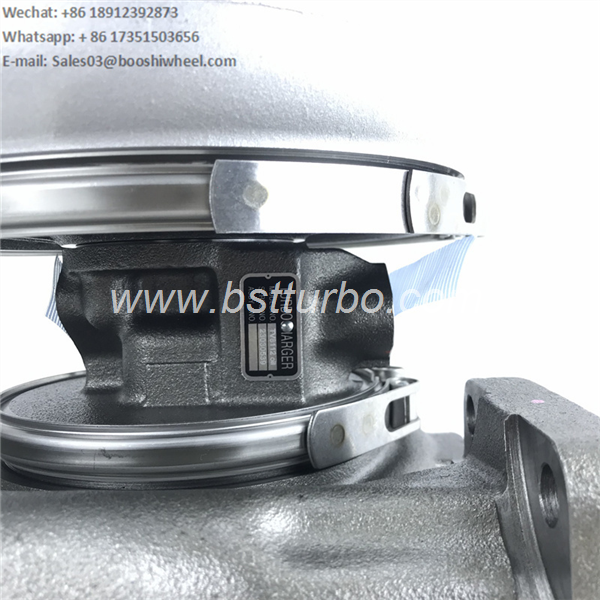

Bearing Housing	408495-0028 (408495-0009, 408495-0010)(9N2035)(Oil Cooled)(1101672450) $126.83 NEW IN STOCK

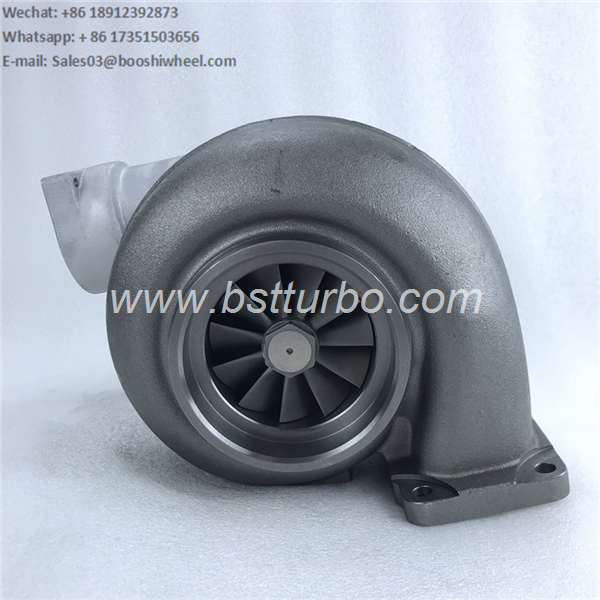

Turbine Wheel	408492-0022 (408492-0012, 408492-0018, 408492-0016, 408492-0023)(0R5393, 6N4606)(Ind. 111.4 mm, Exd. 87.73 mm, 11 Blades)(1101081436) $229.00 NEW IN STOCK

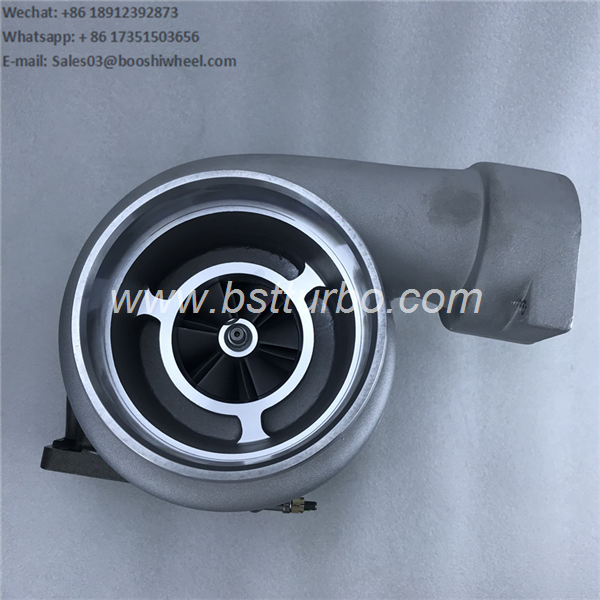

Comp. Wheel	409132-0004 (134-3668, 9N3674)(444827-0018, 444827-0004, 180019-0000)(Ind. 72.59 mm, Exd. 107.95 mm, 6+6 Blades, Superback)(1101081403) $92.80 NEW IN STOCK
Back plate	408487-0013 (6N7962)(180043-0000)(1101680360) $135.20 NEW IN STOCK
Heat shield Number	407657-0004 (9N2037, 9N3701)(409794-0000, 409794-0001, 180021-0000, 180121-0000)(1101680340) $22.00 NEW IN STOCK
Repair Kit	468211-0000 (3545836, 188002-0000) $91.20 NEW IN STOCK
Turbine Housing	408804-0024 (9N2639) $404.00
Compressor Cover	447209-0021
Turbine Housing AR	1.37
Gasket (turbine inlet)	409038-0000 (132040, 1S4295, 202873, 205396, 9749, 3500683, 210017-0000)(1900000003) $17.21
Gasket oil inlet	210019 (409266-0003, 3819900, 9737, 1S6595, 201049, 129119)(1900000035) $4.40
Gasket (oil outlet)	210018 (409267-0002, 1S4810, 3519763, 3500682, 3709738, 9738, 9988, 201048, 129120)(1900000025) $4.22
Replaces	465332-0002, 465332-0003, 465332-0004, 465332-0005, 465332-0008, 9N2702, 6N9624, 6N9625, 1N4070, 0R5370, 4W0208
Manufacturer	Honeywell-Garrett

Applications：

Caterpillar Industrial with 3406 DITA Engine
