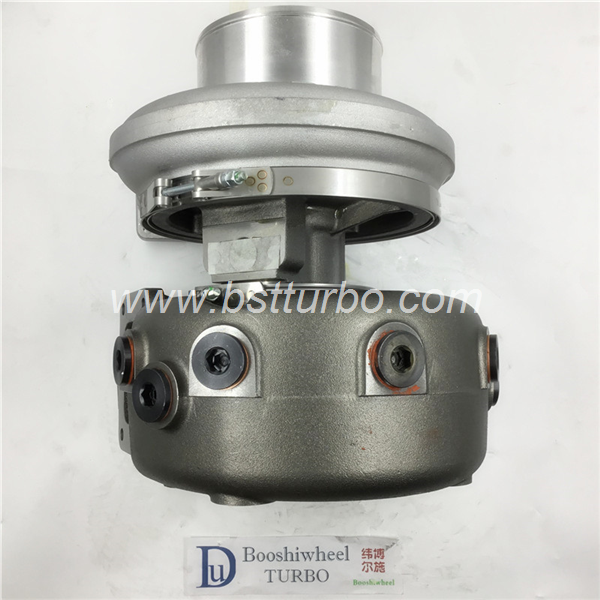

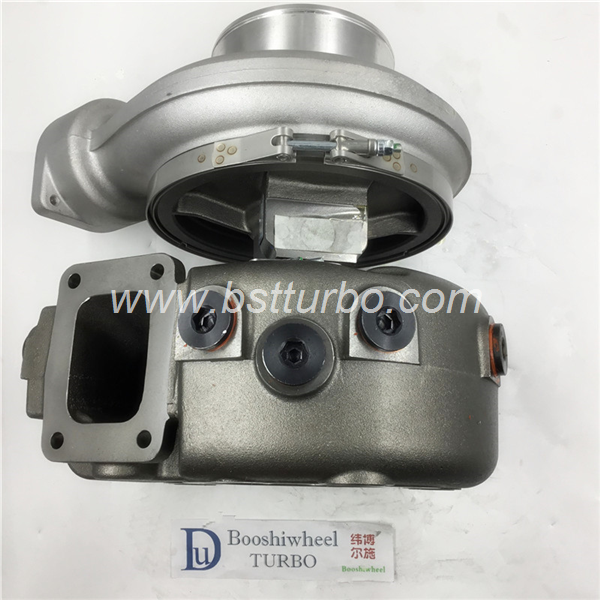

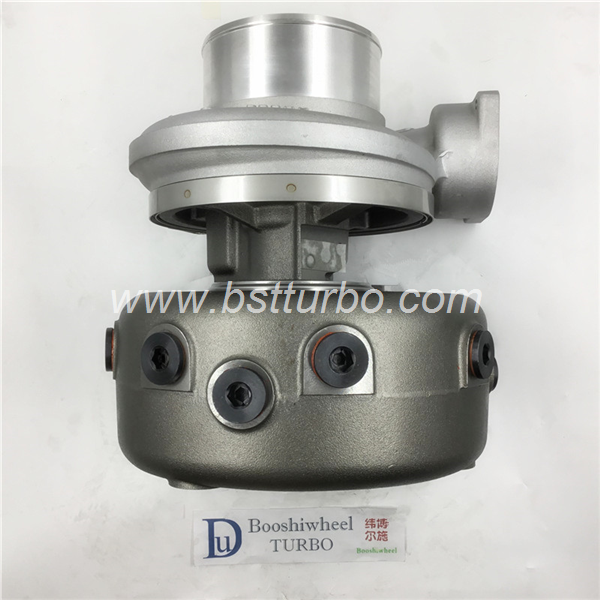

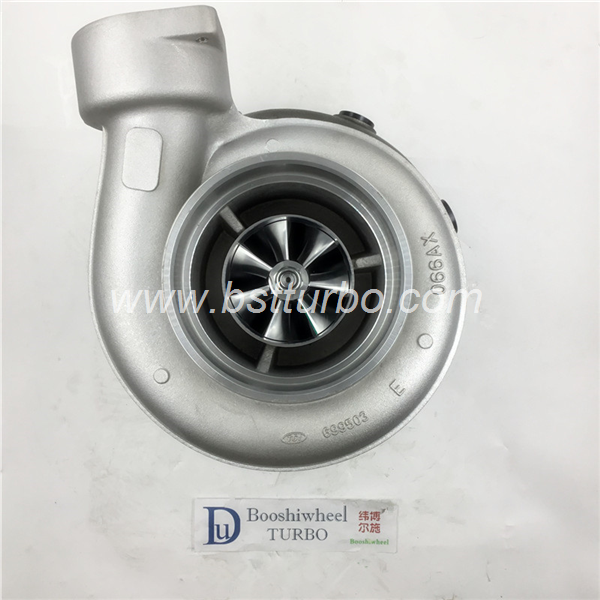

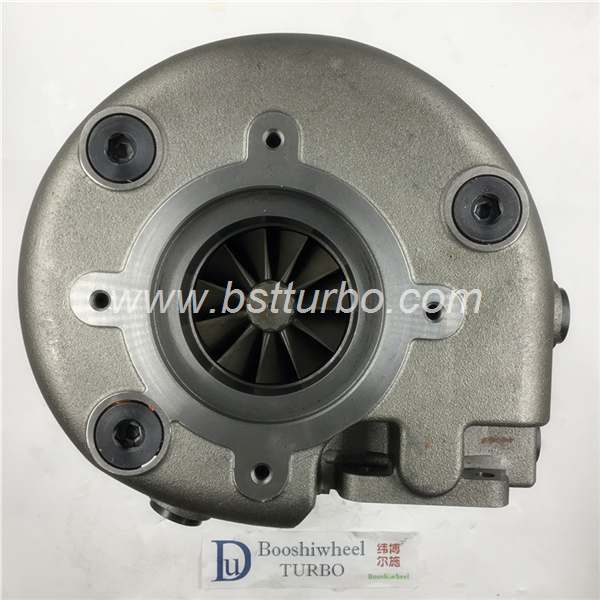

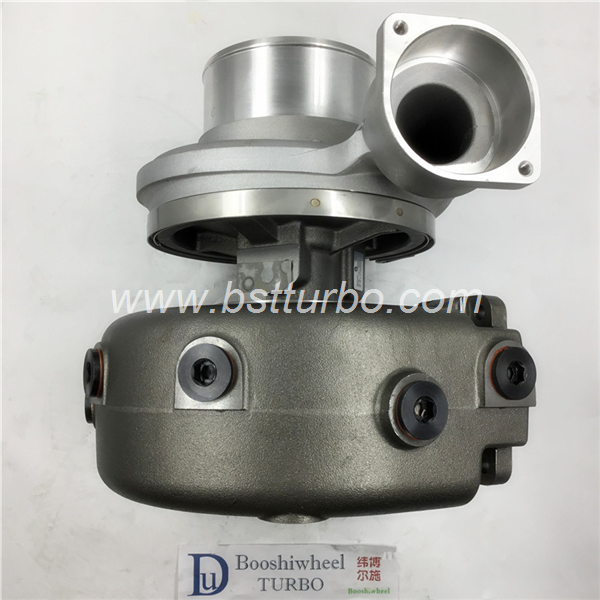

TW8501 turbo 471111-5001S 131-8687 1318687 0R-7094 471111-0001 471111-1 471111-9001 0R7094 3408E engine

Product description:

Turbo Model : UTW8501 131-8687

Fuel : Diesel

Part Number : 471111-0001, 471111-1, 471111-9001

Brand Name : Booshiwheel

Engine Manufacturer : 3408E

Displacement : 14600 ccm, 6 Cylinders

KW : 450/550 HP

RPM Max : 2300

OE number : 131-8687, 1318687, 0R-7094, 0R7094

Manufacturer Part Number : Caterpillar

Applications : Caterpillar

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Products description

Part Number	471111-5001S
Previous Version	471111-0001, 471111-1, 471111-9001
OE number	131-8687, 1318687, 0R-7094, 0R7094
Description	Ship, Marine
CHRA	449530-0016 (449530-5016S, 1318688, 0R7094) $1,945.05
Turbo Model	UTW8501
Engine	3408E
Engine Marine	3406E
Engine Manufacturer	Caterpillar
Displacement	14600 ccm, 6 Cylinders
KW	450/550 HP
Fuel	Diesel
RPM	2300
S/N	9WR00001-UP
Bearing Housing	449072-0001 (Oil Cooled) $252.10 NEW IN STOCK
Turbine Wheel	449587-0001 (Ind. 111.45 mm, Exd. 97.1 mm, 11 Blades) $242.30 NEW IN STOCK
Comp. Wheel	441831-0017
Back plate	442732-0005 $98.93 NEW IN STOCK
Heat shield Number	409794-0002 (407657-0008)(4P6527) $65.01 NEW IN STOCK
Repair Kit	711494-0001 (468267-0010)(176-4259, 125-5375)(1101085750) $188.40 NEW IN STOCK
Turbine Housing (Water Cooled)	409339-0204 (1318689, 23506458) $2007.35 NEW IN STOCK
Compressor Cover	443892-0031 (1318690) $608.97
Turbine Housing AR	1.03
Plug-Cup (Standard)	3B0645 $3.87
Plug-Cup (Standard)	4N0932 $5.96
PLUG-CUP (Optional)	3P1896 $4.89
Plug-Cup	1006816 $5.43
Gasket (turbine inlet)	409038-0001 (210835-0000, 9749, 7M7273, 7H1558, 8N2835) $13.20
Gasket oil inlet	129119 (201049, 210019-0000, 409266-0003, 409266-0004) $4.22
Gasket (oil outlet)	210018 (210018-0000, 129120, 409267-0002, 201048, 157602, 3037537, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025)
