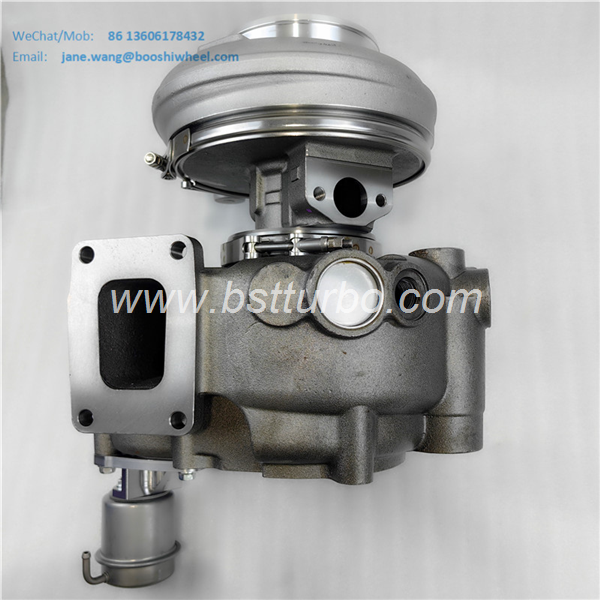

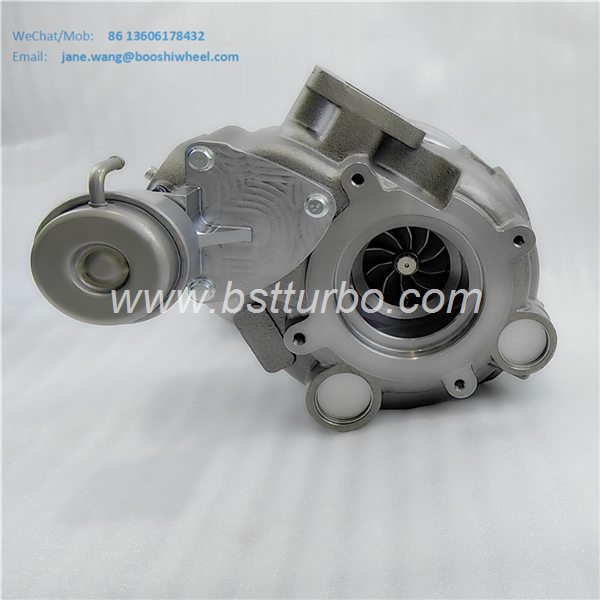

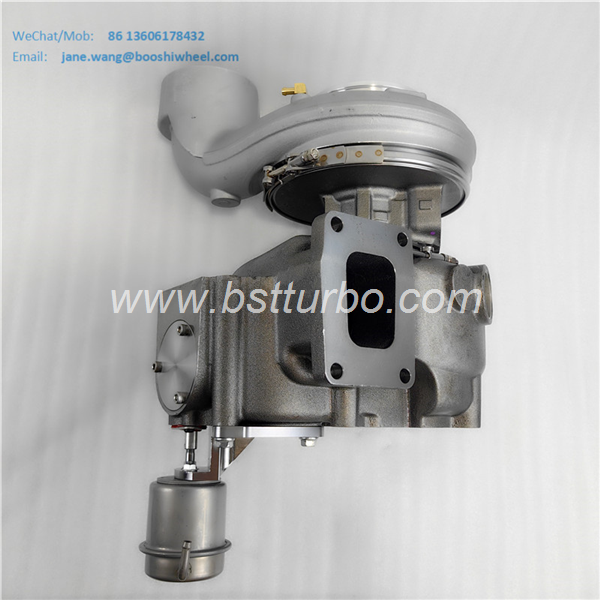

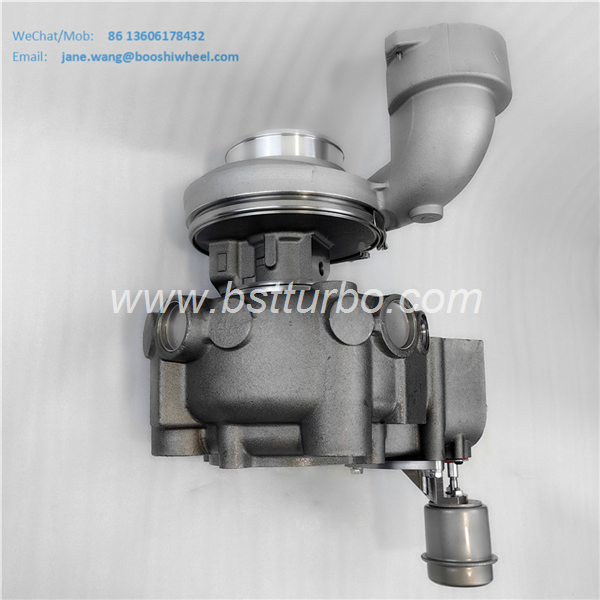

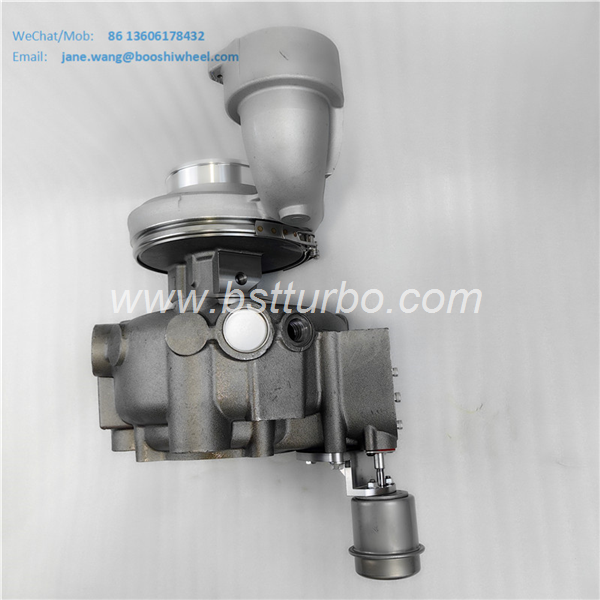

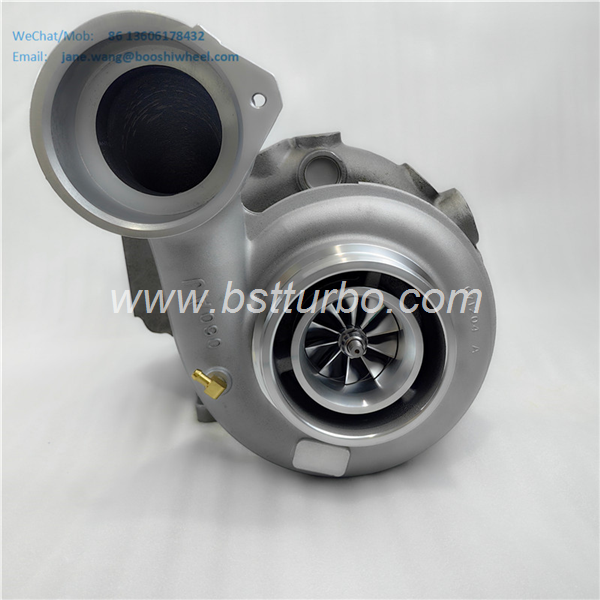

S410W S410W047 turbocharger 171650 14809880002 1480-988-0002 1942848 194-2848 tubrocharger for Marine

Product description:

Turbo Model : S410W S410W047

Fuel : Diesel

Part Number : 171650 14809880002 1480-988-0002

Brand Name : Booshiwheel

Engine Manufacturer : 3126B, C7

Displacement : 7.0L, 7000 ccm

KW : 130/245/177/334 HP

RPM Max : 2800

OE number : 1942848 194-2848

Year : 2000-05

Manufacturer Part Number : 14809700002, 1480-970-0002

Applications : Caterpillar Marine with 3126 Engine

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	171650
Previous Version	14809880002, 1480-988-0002
OE number	1942848, 194-2848
Description	Marine
CHRA	178181 (0R9930, 164-9397, 1649397)(171231, 171231R, 178181R, 471231, 478181)(14009097005) $1190.00 NEW IN STOCK
Turbo Model	S410W, S410W047
Marine Engine	3126B, C7
Manufacturer Part Number	14809700002, 1480-970-0002
KW	130/245/177/334 HP
Displacement	7.0L, 7000 ccm
Fuel	Diesel
Engine speed	2800 RPM
S/N	3GS00001-UP, 1ZJ00001-UP, 6MK00001-UP, 9ZF00001-UP, C7X00001-UP, C7B00001-UP
Angle α (compressor housing)	270º
Angle β (turbine housing)	315º
Bearing Housing	171238 (Oil Cooled) $313.49 NEW IN STOCK
Turbine Wheel	171282 (Ind. 73.28 mm, Exd. 79.37 mm, 10 Blades) $521.93 NEW IN STOCK
Comp. Wheel	171227 (Ind. 67.65 mm, Exd. 96. mm, 10 Blades, Superback) $178.94 NEW IN STOCK
Back plate	NEW IN STOCK
Heat shield Number	167789 (2030016012) $27.57 NEW IN STOCK
Repair Kit	318396 (318397, 169637)(1253400750) $139.00 NEW IN STOCK
Turbine Housing (Water Cooled)	1942849 (194-2849) $1188.91
Compressor Cover	2075281 (207-5281) $576.44
Wastegate	14801009003 (2063050165) $1,448.67
Plug-Cup	3S8313 $4.93
Plug-Cup	4K0149 $5.14
Replaced By	14809880002, 1480 988 0002
NOTE	Restricted to Caterpillar
Manufacturer	Borg Warner - 3K - Schwitzer, BWTS USA

Applications

2000-05 Caterpillar Marine with 3126 Engine
