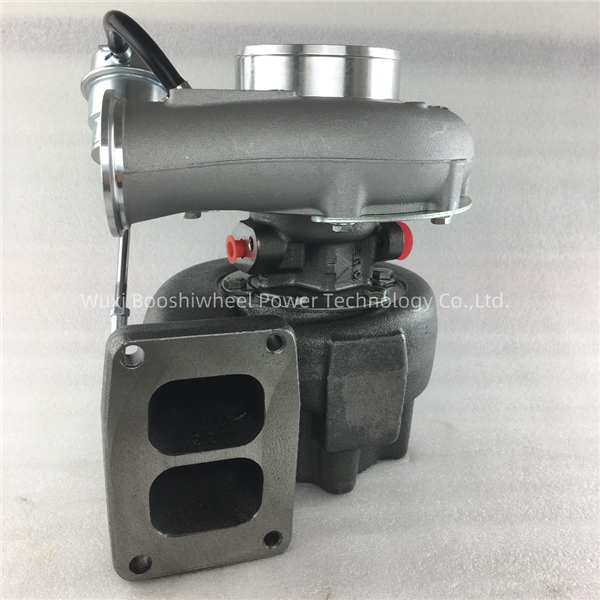

HX50W Turbocharger 2836658 3596693 500390351 for Engine F3B CURSOR 13

Product description:

Turbo Model : HX50W 2836658

Part Number : 2836658

Brand Name : Booshiwheel

现价 : 147

Displacement : 13000 ccm

KW : 380 HP

OE number : 05003903510 500390351

Year : 2001-09

Manufacturer Part Number : 3594505 3596693 3768323 3768324 3796924 3796925 4033106 403310600 4033106H

Applications : 2001-09 Iveco F3B Truck Euro Trakker (Cursor 13) with F3B CURSOR 13 Engine

标签 : F3B,CURSOR,13

Wuxi Booshiwheel Power Technology Co.,Ltd.

Name:Adam Xu

Wechat:T13606178234

E-mail:Sales03@booshiwheel.com

Web Site:https://wuxibswe.en.alibaba.com

Part Number 2836658

Previous Version 3594505 3596693 3768323 3768324 3796924 3796925 4033106 403310600 4033106H

OE number 05003903510 500390351

Year 2001-09

Description EURO-TRACKER Buses Truck

CHRA 4027597 (4027227)(1000020179) $295.00 NEW IN STOCK, MADE IN USA

Turbo Model HX50W

Engine F3B CURSOR 13

KW 380 HP

Displacement 13000 ccm

Angle α (compressor housing) 270º

Angle β (turbine housing) 270º

Bearing Housing 3591772 (3533052)(Oil Cooled)(1900011253) $76.00 NEW IN STOCK

Turbine Wheel 3534287 (Ind. 86. mm, Exd. 77.03 mm, Trm 13.41, 12 Blades)(1153050436, 1100016122) $138.00 NEW IN STOCK

Comp. Wheel 3596134 (Ind. 69.01 mm, Exd. 99. mm, Trm 6.88, 7+7 Blades, Superback)(1200016595) $66.00 NEW IN STOCK

Back plate 3528096 (352809600)(1153055300, 1800016024) $21.82 NEW IN STOCK

Heat shield Number 3533038 (3529846)(1153055340, 2030016003) $13.22 NEW IN STOCK

Repair Kit 3545627 (3575181, 3580762)(876991, 876896)(1153050750, 5000020028B) $85.20 NEW IN STOCK

Gasket (turbine inlet) 409038-0000 (210017-0000) $15.49

Gasket (turbine outlet) 210239

Gasket oil inlet 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper) $4.48

Gasket (oil outlet) 210021 (148062, 311496, 3519807, 210021-0000, 413671-0000, 409037-0000)(1900000027) $3.32

Gasket Kit 215093 (2090505008)

Manufacturer HOLSET

Applications

2001-09 Iveco F3B Truck Euro Trakker (Cursor 13) with F3B CURSOR 13 Engine
