Turbo cartridge HX60W core 4043620 4025320 3592158 5324942 3596624 4089760NX 4090043RX 3594595 3594763 turbocharger chra for with ISX2 Engines

Product description:

Turbo Model : HX60W core

Fuel : Diesel

Part Number : 4043620

Brand Name : Booshiwheel

Displacement : 15.0L, 1500 ccm

KW : 600 HP

OE number : 4025320 4025320NX 4025320RX 4089760 4090043 5324942 4089760

Applications : 2006-08 Cummins Various with ISX2 Engine

标签 : Core

Welcome to contact us :

Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com

Specification

Part Number	4043620
Previous version	3590901, 3590902, 3592158, 3592518, 3592544, 3592548, 3593613, 3593614, 3594595, 3594763, 3596617, 3596624, 3596625, 3800652, 3800652NX, 3800652RX, 3800770, 3800770NX, 3800770RX, 3800997, 3800997NX, 3800997RX
OE number	4025320, 4025320NX, 4025320RX, 4089760, 4090043, 5324942, 4089760, 4089760NX, 4089760RX, 4090043, 4090043NX, 4090043RX
Description	Truck, Industrial Various Kenworth, Peterbilt, Komatsu Industrial Gen Set
Manufacturer Part Number	3596624, 3596625, 4038282, 4038283, 4040850, 4040851, 4043621, 4043622, 53227754H, 5323079, 5327752, 5327753, 532775300, 532775300H, 532775300HX, 5327753H, 5327753HX, 5327754, 532775400, 532775400HX, 5327754H, 5327754HX

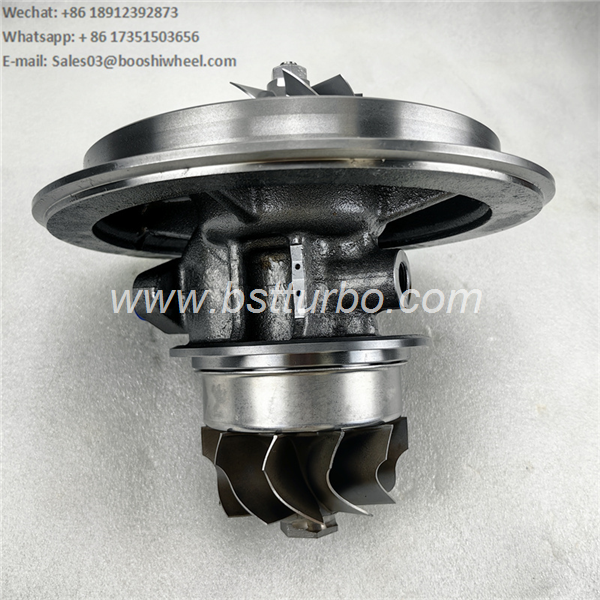

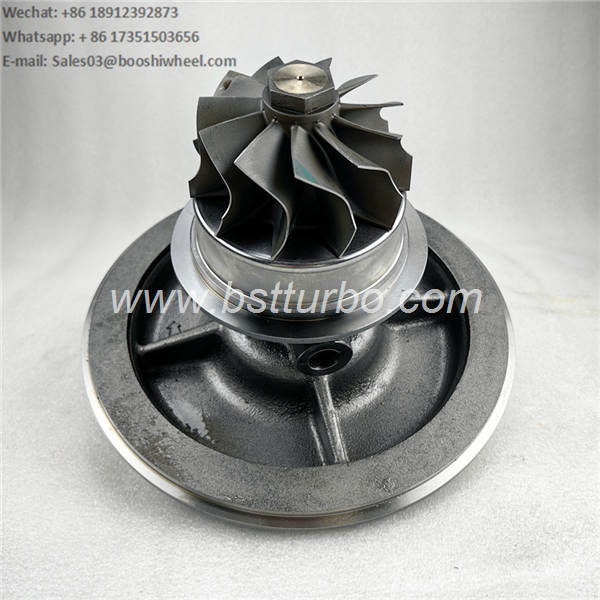

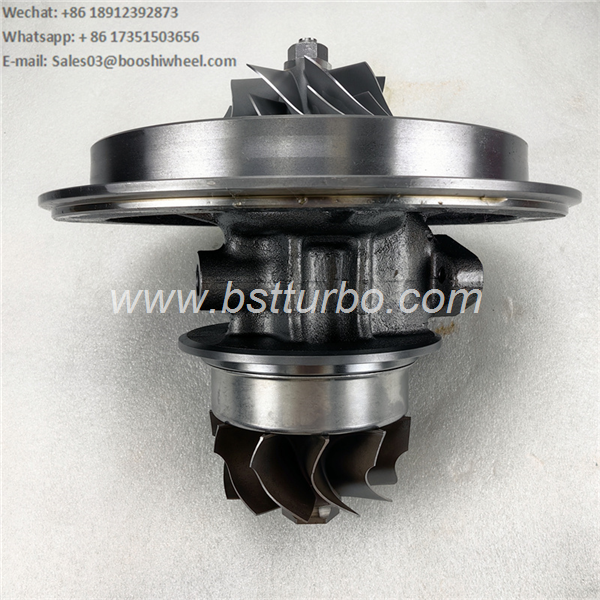

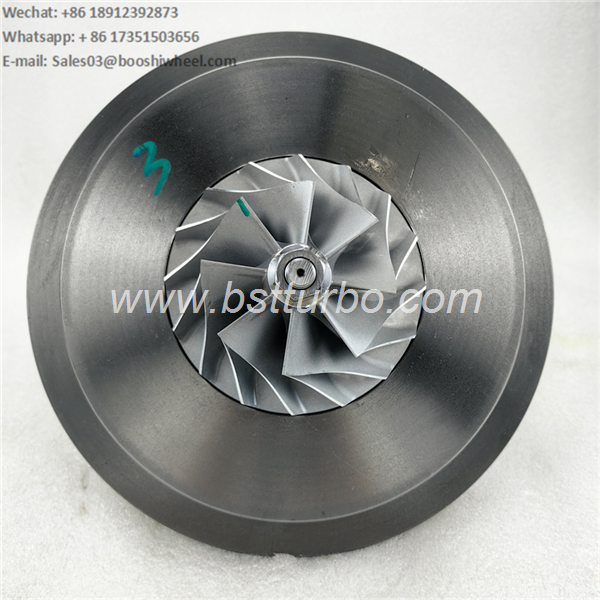

CHRA	4027674 (4027674H) $1180.00 NEW IN STOCK
Turbo Model	HE600WG, HX60W
Engine	ISX2 Non-EGR Engine, Signature ISX3
Engine Manufacturer	Cummins
Displacement	15.0L, 1500 ccm
KW	600 HP
Fuel	Diesel
Angle α (compressor housing)	180/270°
Angle β (turbine housing)	136/160°
Bearing Housing	4027673 (Oil Cooled) $226.90 NEW IN STOCK
Turbine Wheel	3539388 (Ind. 85.11 mm, Exd. 97.3 mm, 11 Blades) $675.90 NEW IN STOCK
Comp. Wheel	4036701 (Ind. 73.45 mm, Exd. 107.32 mm, 8+8 Blades, Superback) $490.94 NEW IN STOCK
Back plate	3531917 (1250403300) $67.06 NEW IN STOCK
Heat shield Number	3519155 (18373)(351915500) $15.58 NEW IN STOCK
Repair Kit	3580568 (3545345, 4027880)(1153060750) $125.00 NEW IN STOCK
Gasket Kit	4032516 $23.97
Superseded	5327752

Applications

2006-08 Cummins Various with ISX2 Engine

2000-08 Komatsu Industrial Gen Set S500 with ISX2 Engine
