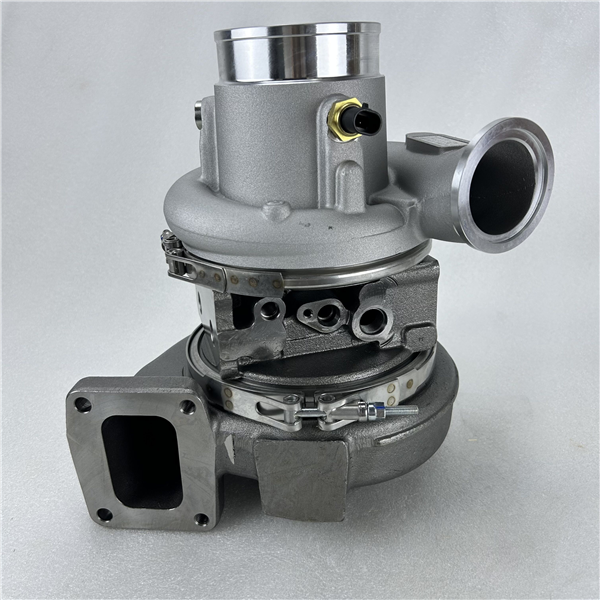

HE400VG Turbocharger 4309124 4955428 5350607 2836368 3774353 4039980 5350526 3792244 2840540 for Engine ISC, ISL, B3, B4, ISM

Part Number 5350607

Previous Version 19700523D, 2836368, 2836369, 2836373, 2838786, 2838787, 2838788, 2838791, 2840539, 2840540, 2840541, 2840544, 2840545, 2840548, 2840549, 2840550, 2881791, 2881791NX, 2881791RX, 2881792, 2881792NX, 2881792RX, 2881793, 2881793NX, 3774353, 3774354, 3774355, 3774356, 3774358, 3774623, 3774624, 3774637, 3774638, 3774650, 3775131, 3775132, 3775141, 3775650, 3776837, 3776838, 3776839, 3792242, 3792244, 3792246, 3792247, 3792247NX, 3792247RX, 3792248, 3792250, 379225000HX, 3792250H, 3792250HX, 3792251, 3795128, 3795150, 3795151, 3795152, 3797541, 3797542, 379754200, 3797542HX, 4039980, 4040648, 4040649, 4040650, 4040651, 4042426, 4042428, 4042430, 4042432, 4044519, 4044520, 4045268, 4045269, 4046226, 4046227, 4309083, 4309083NX, 4309083RX, 4309124, 430912400, 4309124NX, 4309124RX, 4955428, 4955428NX, 4955429, 4955429NX, 4955582, 4956026, 4956026NX, 4956027, 4956027NX, 4956028

OE Number 4956C26, 4955428

Year 2006-14

Description Industrial Crane

Manufacturer Part Number 5350526, 5350607, 5350627, 5350627NX, 5350627RX, 5350629, 5355262, 5355263, 5355264, 5355981NX, 5359981, 5359981RX, 5455669, 5456971, 545697100, 545697100H, 545697100HX, 5456971H, 5456971HX, 5457032, 5457032H, 5457032HX, 5457203, 5457203NX, 5457203RX, 5458510, 5458510NX, 5458510RX, 5458511, 5458511NX, 5458511RX

Turbo Model HE451Ve, HE400VG

CHRA N/A

Engine ISC, ISL, B3, B4, ISM

Engine Manufacturer Cummins

Displacement 320V

Fuel Diesel

Angle α (compressor housing) 257º

Angle β (turbine housing) 158º

Turbine Wheel 2840238RX (Ind. 66.35 mm, Exd. 71.28 mm, 11 Blades) NEW IN STOCK

Comp. Wheel (Ind. 61.95 mm, Exd. 92.96 mm, 7+7 Blades, Superback) NEW IN STOCK

Nozzle Ring Assemble $340.00 NEW IN STOCK

Repair Kit $124.00 NEW IN STOCK

Turbine Housing AR VGT

Speed Sensor Kit 4034201H

Electronic Actuator Kit 4034289 (28087185, 28087185-10, 2808718510, 28169119, 28169119-10, 2816911910, 2835940, 2837201, 3789667, 3789676, 3789677, 3791991, 379199100, 4032066, 4032673, 4032760, 4032760NX, 4032760RX, 4034116, 4034208, 4034210, 4034210NX, 4034210RX, 4034289, 403428900, 403428900HX, 4034289H, 4034289HX, 4034289NX, 4034289RX, 4034403, 4034403NX, 4034403RX, 4042307, 4043340, 4045108, 4045991)(12 Volts) $750.00 NEW IN STOCK

Electronic Actuator 4034290H (24V) Reman $750.00 Exchange only

Gasket (turbine inlet) 3088984 $14.02

Gasket Kit 3685535 $21.48

NOTE Does not include actuator, Actuator it needs to be calibrated to the turbo

Manufacturer Holset



Applications

2006-14 Cummins (CTT) Industrial Crane with ISC, ISL, B3, B4, ISM Engine
