  • HE551V 5350518 4309078 4309078RX 2882000NX 3792795H turbocharger for Truck Bus Various With ISX ISX3 ISX 07 STA15 Engine

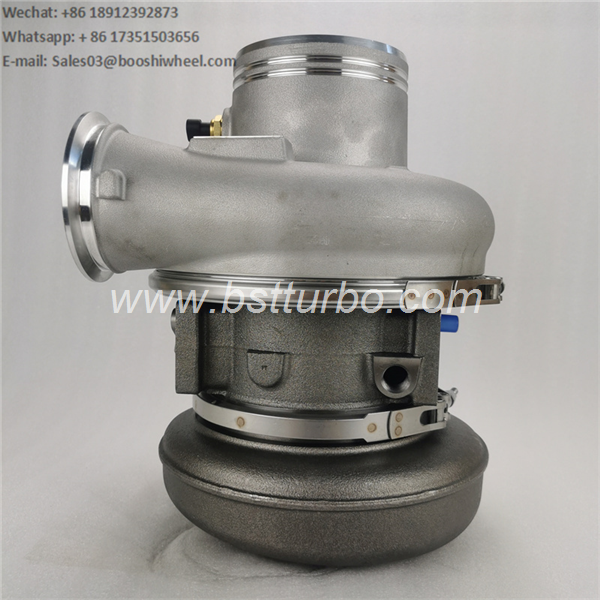

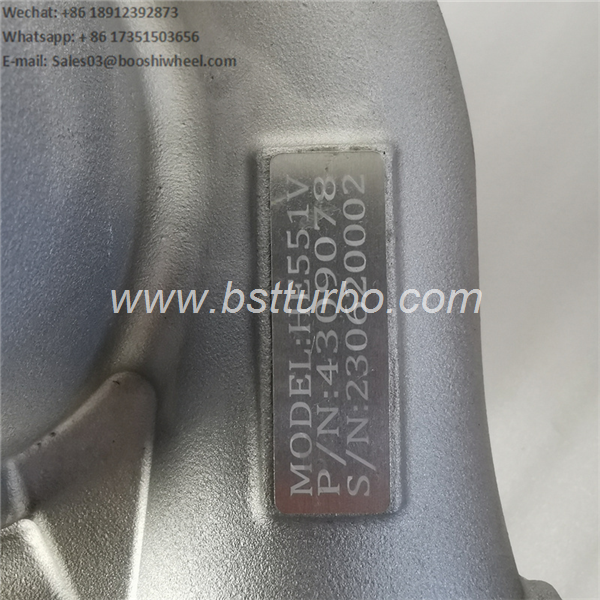

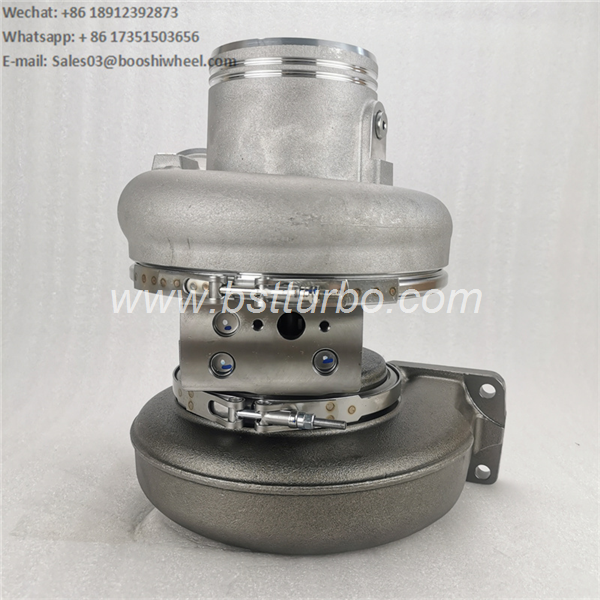

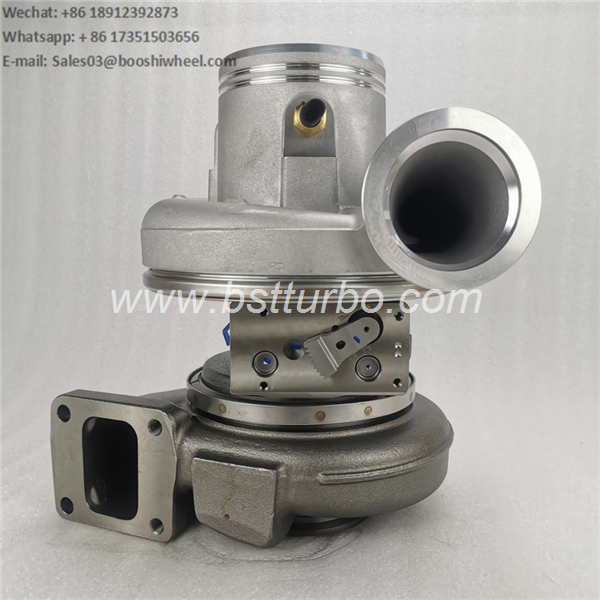

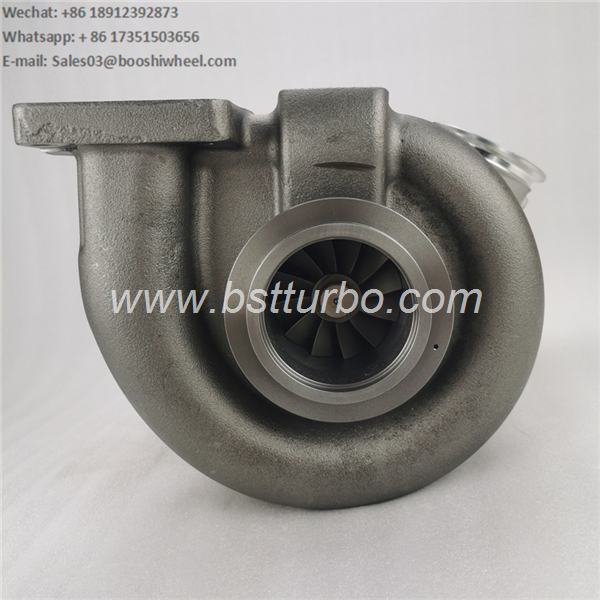

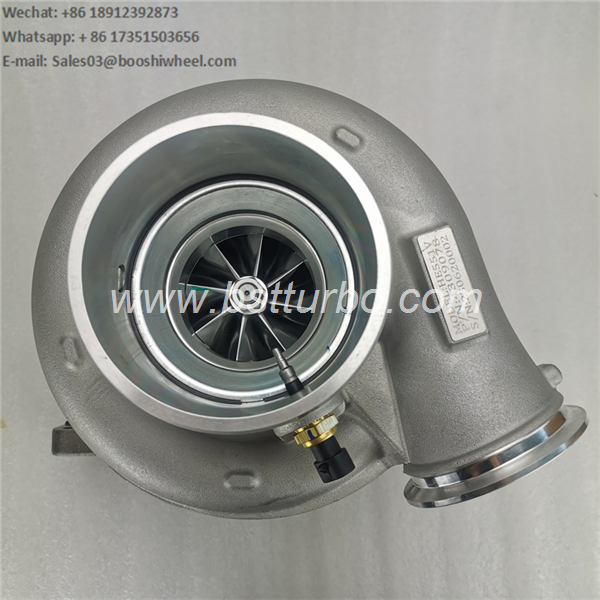

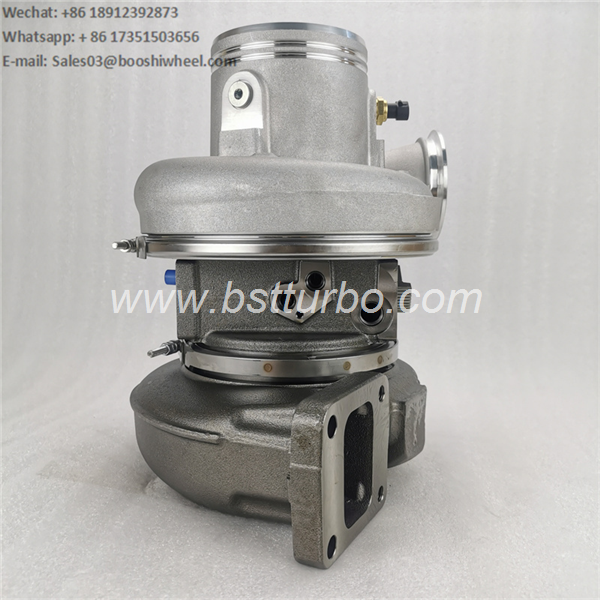

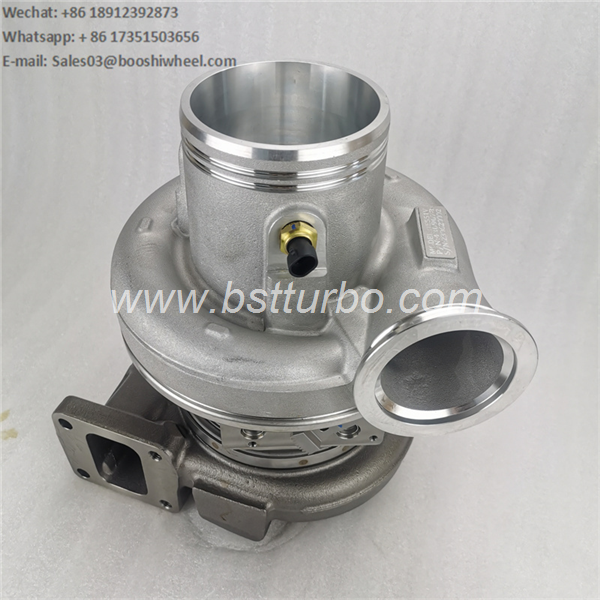

HE551V 5350518 4309078 4309078RX 2882000NX 3792795H turbocharger for Truck Bus Various With ISX ISX3 ISX 07 STA15 Engine

Product description:

Turbo Model : HE551V

Fuel : Diesel

Part Number : 5350518

Brand Name : Booshiwheel

Displacement : 15.L, 1500 ccm

KW : 480/550

OE number : 4956014NX, 4956014, 4955801

Applications : 2007-10 turbocharger for Cummins Truck, Bus, Various With ISX, ISX3, ISX 07, STA15 Engine

标签 : Turbocharger

Welcome to contact us :



Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com



Specification





Part Number 5350518
Previous Part Number 2836364, 2836365, 2838149, 2838150, 2840531, 2840532, 2881789, 2881789NX, 2881789RX, 2882000, 2882000NX, 2882000RX, 3767612, 3767618, 3767625, 3767633, 3774604, 3774614, 3774628, 3774642, 3792775, 3792785, 3792795, 379279500, 379279500H, 3792795H, 3792795HX, 3795165
OE number 4956014NX, 4956014, 4955801
Description FITS FOR Cummins Various, Truck, Bus, VOLVO, PETERBILT, KENWORTH
CHRA N/A
Turbo Model HE500VG, HE551Ve
Manufacturer Part Number 2836365, 2838150, 2840532, 3767625, 3774628, 3792785, 4048097, 4048098, 4309078, 4309078NX, 4309078RX, 4955801, 4955801NX, 4955801RX, 4956014, 4956014NX, 4956014RX, 5350591, 5350951, 5355397, 5355403, 5495611, 5495611H, 5495611HX
Engine ISX, ISX3, ISX 07, STA15
Displacement 15.L, 1500 ccm
KW 480/550
Fuel Diesel
Angle α (compressor housing) 132°
Angle β (turbine housing) 155°
Bearing Housing (Water Cool) IN STOCK
Turbine Wheel 3599629 (3590433, 359962900)(Ind. 86.1 mm, Exd. 80.03 mm, Trm 10.66, 12 Blades)
Rotor Assembly 4034236
Repair Kit 4032255 (4032255H)(1154055757)
Nozzle Ring Assy ORDER ACCEPTABLE
Turbine Housing AR VGT
NOTE No Actuator

Applications

2007-10 turbocharger for Cummins Truck, Bus, Various With ISX, ISX3, ISX 07, STA15 Engine
