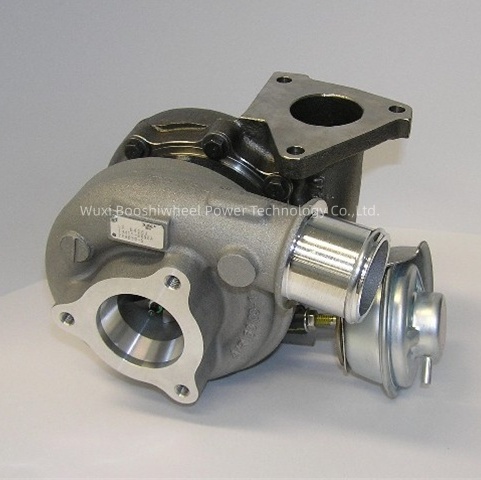

GT2052V Turbocharger 724639-5006S 705954-0008 14411-2X90A for Engine 123ZD30ET, ZD30ETi

Product description:

Turbo Model : GT2052V GTA2052V 724639-5006S

Fuel : Diesel

Part Number : 724639-5006S

Brand Name : Booshiwheel

现价 : 147

Engine Manufacturer : Nissan

Displacement : 3.0L, 3000 ccm

KW : 113/116/125

RPM Max : 3600

OE number : 144112X900 14411-2X900 14411VC100 14411-VC100 144112X90A 14411-2X90A 14411VC100 14411-VC100 1679410G01

Year : 2000-09

Manufacturer Part Number : 705954-0008 705954-0009 705954-0011 705954-0013 705954-0015 723739-0002 723739-0003 724639-0002 724639-0004

Applications : 2000-09 Nissan Patrol, Safari, Terrano II with 123ZD30ETi, ZD30ETi Engine

标签 : 123ZD30ET,ZD30ETi

Wuxi Booshiwheel Power Technology Co.,Ltd.

Name:Adam Xu

Wechat:T13606178234

E-mail:Sales03@booshiwheel.com

Web Site:https://wuxibswe.en.alibaba.com

Part Number 724639-5006S

Previous Version 705954-0008 705954-0009 705954-0011 705954-0013 705954-0015 723739-0002 723739-0003 724639-0002 724639-0004

OE Number 144112X900 14411-2X900 14411VC100 14411-VC100 144112X90A 14411-2X90A 14411VC100 14411-VC100 1679410G01

Year 2000-09

Description Patrol, Terrano II

CHRA 702793-0024 (702793-5024S, 702793-0015)(1102020924, 1000010151) $295.00 NEW IN STOCK, MADE IN USA

Turbo Model GT2052V GTA2052V

Engine 123ZD30ET ZD30ETi

Engine Manufacturer Nissan

Displacement 3.0L, 3000 ccm

KW 113/116/125

RPM Max 3600

Fuel Diesel

Angle α (compressor housing) 175º

Angle β (turbine housing) 90º

Bearing Housing 724639-0002 (705181-0012)(Oil Cooled)(1102020456, 1900011330) $42.88 NEW IN STOCK

Turbine Wheel 434883-0030 (434883-0003, 434883-0011, 434883-0017)(Ind. 46.99 mm, Exd. 38.6 mm, Trm 8.25, 9 Blades)(1102020436, 1100030018) $57.60 NEW IN STOCK

Comp. Wheel 702492-0004 (436131-0005, 436131-0050, 702492-0001, 702492-0040)(Ind. 38.6 mm, Exd. 51.99 mm, Trm 4.19, 6+6 Blades, Superback)(1102015406, 1200030118) $49.62 NEW IN STOCK

Back plate 701335-0001 (703682-0050)(1300011007) $18.40 NEW IN STOCK

Heat shield Number 443768-0003 (1102015340, 2030016030) $21.80 NEW IN STOCK

Repair Kit (1102015782, 5000010066) $80.12 NEW IN STOCK

Nozzle Ring (1102017833, 3000016014) $98.10

Actuator 702616-0023 (1102020380, 2061016106) $85.00

Turbine Housing AR VNT1, VNT2

Gasket (turbine inlet) 210560 (Inox Steel)

Gasket (turbine outlet) 210561 (Inox Steel)

Gasket (oil inlet and outlet) 210642 (Graphitized Steel)

Gasket (water inlet and outlet) 210815 (Inox Steel)

Gasket (turbine inlet) (compressor housing) 210814 (Graphitized Steel)

Gasket Kit 215038 (1900100399, 2090505433) $18.59

Replaced By 726442-0004, 724639-0007

NOTE Internal Waste gate, VNT

NOTE The 705954 and 723739 range turbos with water cooled center housing has been replaced by Nissan and Garrett by turbos with air cooled center housings. Fore service, Nissan use the air cooled turbos plus the following Nissan kits to plug the water cooling ports on the engine: 2 Quantity x 089314441A plus 2 Quantity x 1679410G01

Manufacturer Honeywell-Garrett

Applications

2000-09 Nissan Patrol, Safari, Terrano II with 123ZD30ETi, ZD30ETi Engine
