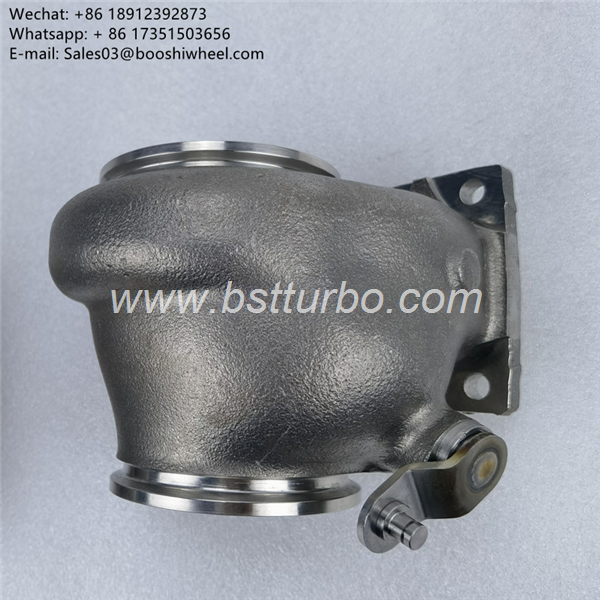

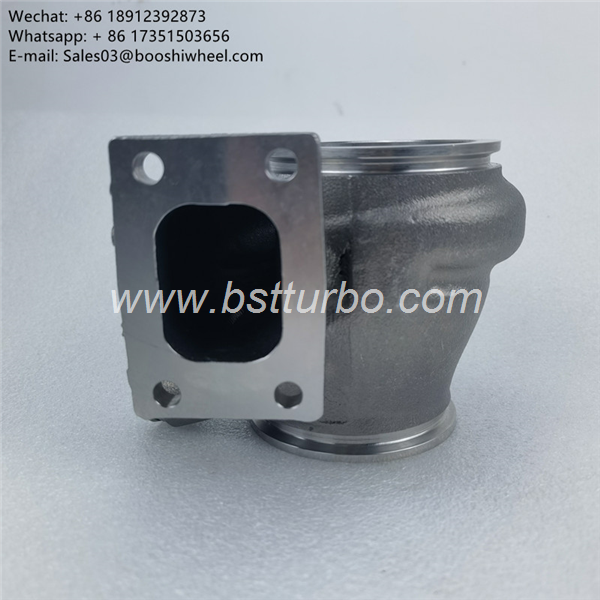

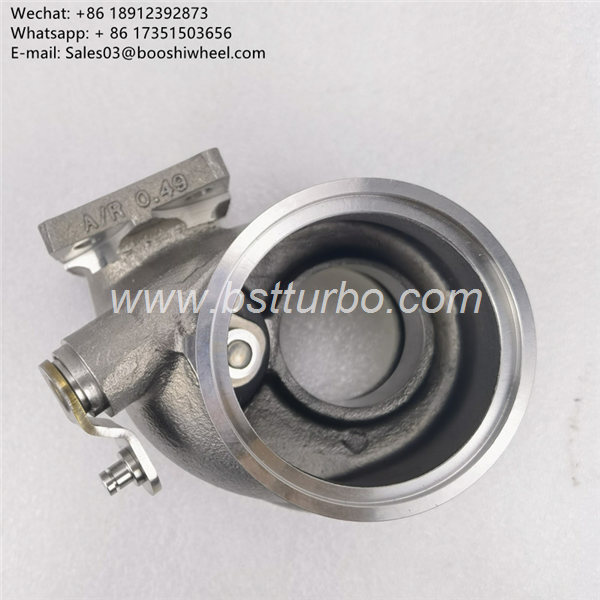

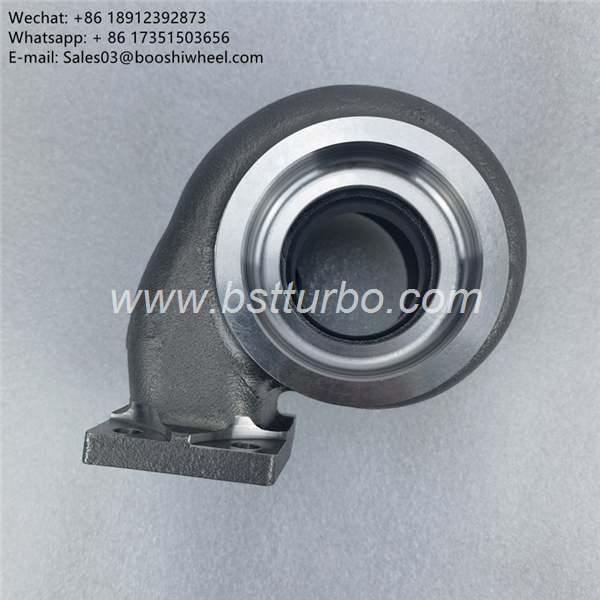

  • G25 Standard Rotation AR 0.49 T25 Turbine Housing stainless steel flapper K418 material G25 871389-5001S 858161

G25 Standard Rotation AR 0.49 T25 Turbine Housing stainless steel flapper K418 material G25 871389-5001S 858161

Product description:

Turbo Model : G25 871389-5001S

Fuel : Diesel

Part Number : 871389-5001S 858161

Brand Name : Booshiwheel

OE number : G25

标签 : turbine,housing

Welcome to contact us :



Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com

Web Site: https://wuxibswe.en.alibaba.com



G25 Standard Rotation AR 0.49 T25 Turbine Housing stainless steel flapper K418 material G25 871389-5001S 858161

Specification

Part Number 871389-5001S
Previous Version 877895-5001S, 877895-5011s
OE number 871389-5002s
Year 2018-
Description for racing vehicles
CHRA 858161-5002S
Turbo Model G25 G25-550
Displacement 1.4L- 3.0L
KW 550-660 HP
turbine housing kit 740902-0080
inlet T25 /T4
outlet V-BAND
turbine housing A/R 0.49
Compressor housing A/R 0.70
Turbine O.D.mm 54.0
Turbine I.D.mm 49
Turbine TRIM 84
Compressor TRIM 65
Actuator 1.0 bar
compressor O.D.mm 60.0
Compressor  I.D.mm 48
Cooled type water cooled
turbine housing type stainless steel
Condition

Brand new



The Garrett G-Series G25-550 advanced small frame ball bearing turbocharger;


including a Garrett stainless steel V-Band Inlet & V-Band Outlet .92 A/R turbine housing (Garrett Part #871389-5005S). 550HP from a small frame package!

Ultra High Flow G-Series Compressor Wheel
Revolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
Includes -4AN oil feed fitting and -6AN coolant/water fittings

PRODUCT SPECIFICATIONS:
Compressor Wheel Inducer: 48mm
Compressor Wheel Exducer: 60mm
Compressor Wheel Trim: 65
Compressor Housing Inlet: 3 Inch Diameter
Compressor Housing Outlet: 2 Inch Diameter
Compressor Housing A/R: .70
Turbine Wheel Inducer: 54mm
Turbine Wheel Exducer: 49mm
Turbine Wheel Trim: 84
Turbine Housing Inlet: 3 Inch O.D. V-Band
Turbine Housing Outlet: 3.55 inch O.D. V-Band
Includes Oil Feed (1mm) Restrictor Fitting to -4AN
Includes two Coolant Fittings to -6AN
