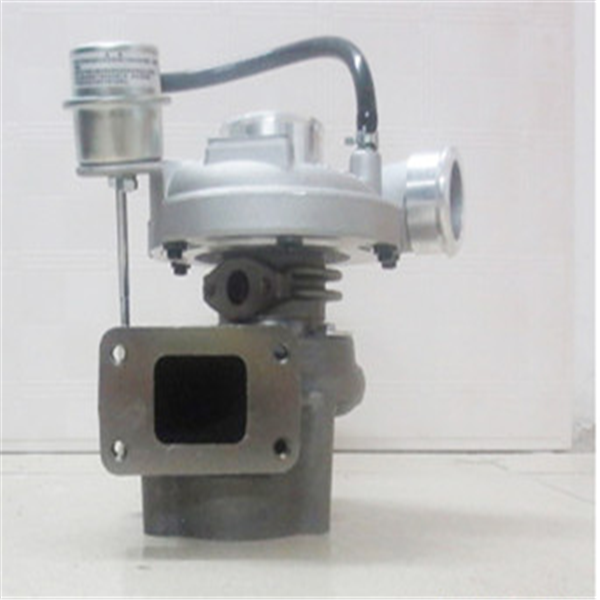

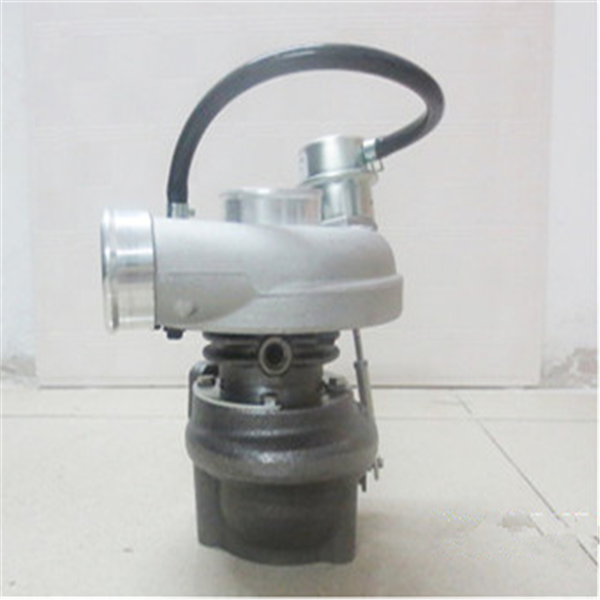

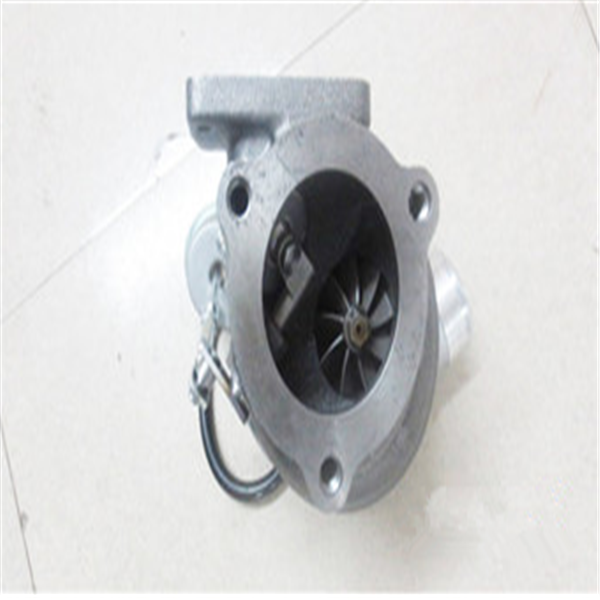

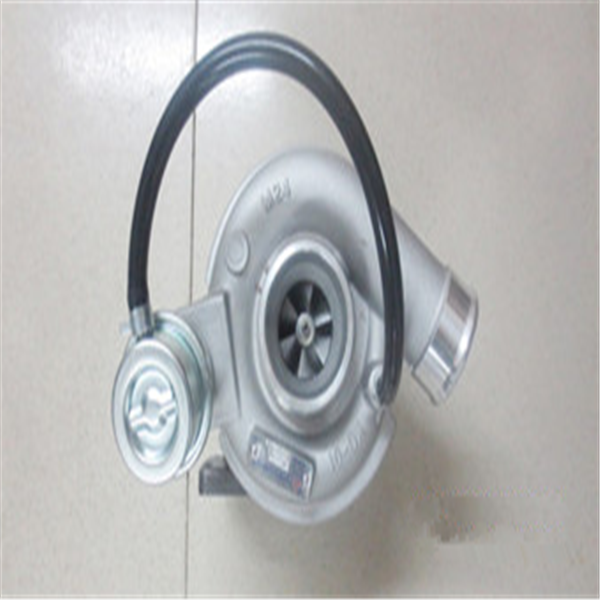

GT2256S  762931-5001S 32006047 turbo  for Perkins

  product describtion

Part Number 762931-5001S
Previous Version 762931-0001, 762931-0002, 762931-0003, 762931-1
OE number 32006047, 320/06047, 320/06079, 32006079, 32006081, 320/06081
Year 2005-06
Description JCB Agricultural Backhoe loaders, Backhoe, Loadall
CHRA 433289-0284 (433289-5284S)
Turbo Model GT2556S, GT2256S
Engine Scout 4.4L, Dieselmax Euro-2 EPA Tier 2
Engine Manufacturer JBC
Displacement 4.4L, 4400 ccm, 4 Cylinders
KW 68/101
RPM 2200
Fuel Diesel
Angle α (compressor housing) 317.5
Angle β (turbine housing) 327.5/163.5
Heat shield Number 434686-0001
Repair Kit 732252-0001
Turbine Housing 760428-0005/760428-0004
Compressor Cover 762930-0002/434613-0001
Turbine Housing AR 0.45
Actuator 436806-0028
Compressor housing + actuator 762930-0001/762930-0008
Settings waste gate (pressure) 0.766-0.814/1.370-1.450 bar
Settings Waste gate (lift shaft) 1.00 mm
Gasket (oil outlet) 210553 (Paper Gasket)
Gasket (turbine outlet) 210853 (Stainless Steel)
Gasket (turbine inlet) 210852 (Inox Steel)
Note Tier 2 (68kw and 74kw). Mechanical injection.
Note two power ratings covered by this turbo. Tier ii Emissions.

Applications
2005-06 Perkins Backhoe loaders with Scout 4.4, Dieselmax Engine
2005-06 JCB Backhoe loader, Various with Dieselmax Euro-2 Engine
