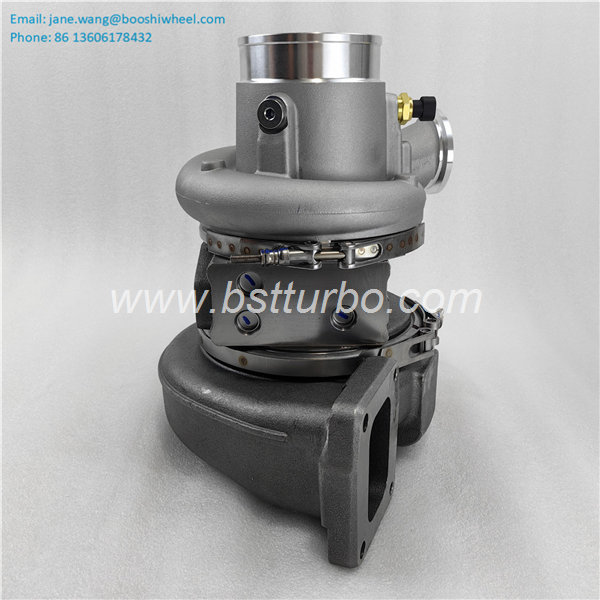

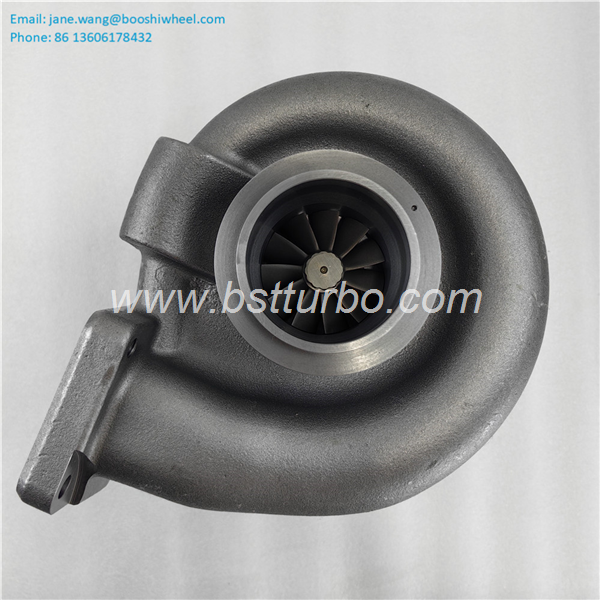

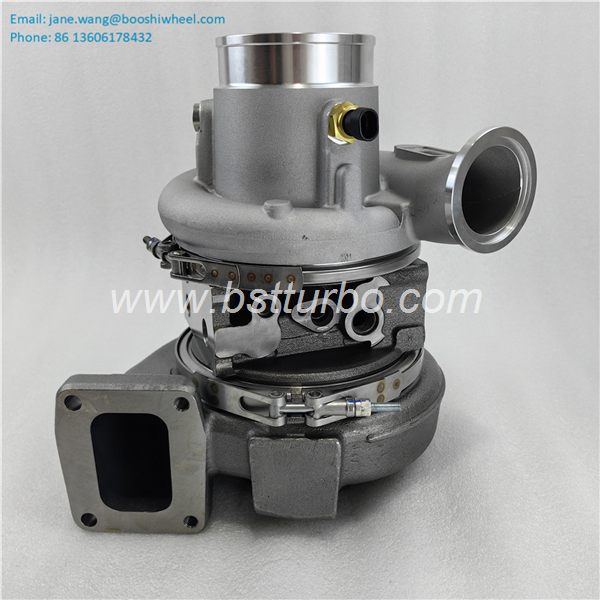

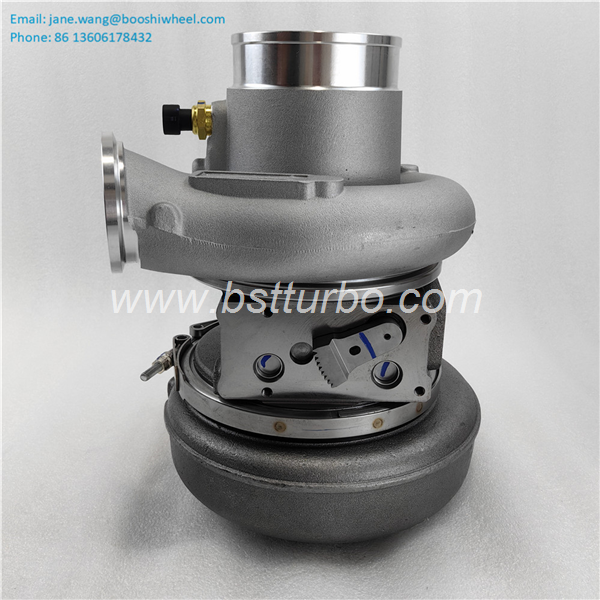

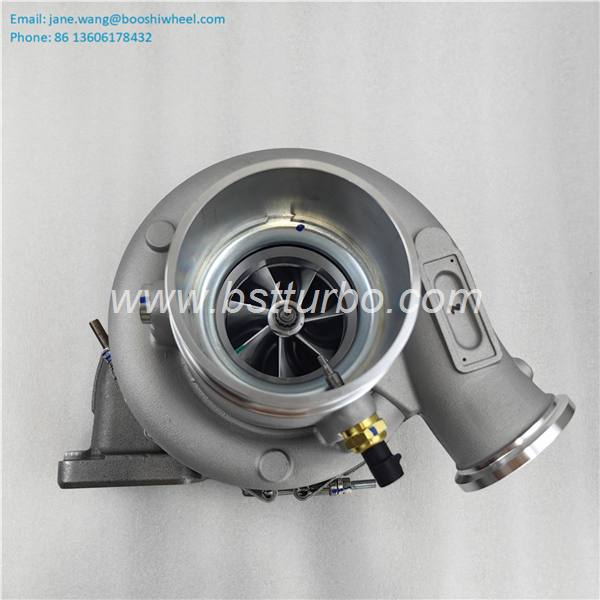

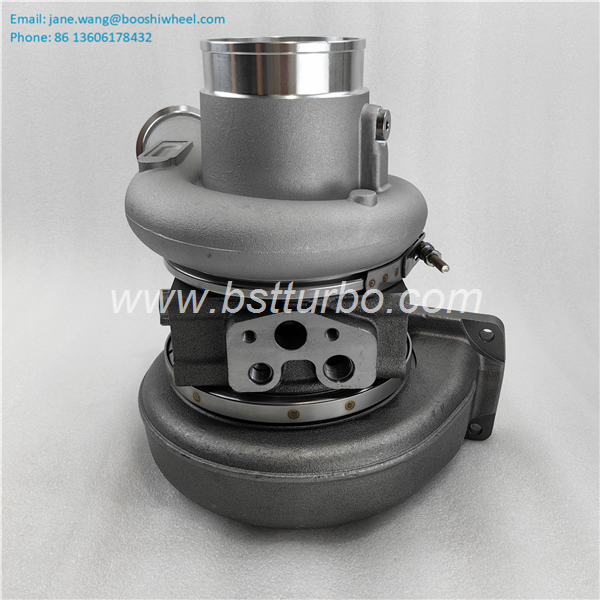

HE400VG Turbocharger 4309124 4955428 2881791 2836369 2838787 2840541 3775141 3776839 3776838 3776839 3792250 4309124NX 4309124RX 5458510 5458510RX Cummins (CTT) Industrial Crane with ISC Engine

Part Number

5350607

Previous Version

19700523D, 2836368, 2836369, 2836373, 2838786, 2838787, 2838788, 2838791, 2840539, 2840540, 2840541, 2840544, 2840545, 2840548,
2840549, 2840550, 2881791, 2881791NX, 2881791RX, 2881792, 2881792NX, 2881792RX, 2881793, 2881793NX, 3774353, 3774354, 3774355,
3774356, 3774358, 3774623, 3774624, 3774637, 3774638, 3774650, 3775131, 3775132, 3775141, 3775650, 3776837, 3776838, 3776839,
3792242, 3792244, 3792246, 3792247, 3792247NX, 3792247RX, 3792248, 3792250, 379225000HX, 3792250H, 3792250HX, 3792251, 3795128,
3795150, 3795151, 3795152, 3797541, 3797542, 379754200, 3797542HX, 4039980, 4040648, 4040649, 4040650, 4040651, 4042426, 4042428,
4042430, 4042432, 4044519, 4044520, 4045268, 4045269, 4046226, 4046227, 4309083, 4309083NX, 4309083RX, 4309124, 430912400,
4309124NX, 4309124RX, 4955428, 4955428NX, 4955429, 4955429NX, 4955582, 4956026, 4956026NX, 4956027, 4956027NX, 4956028

OE Number

4956C26, 4955428

Year

2006-14

Description

Industrial Crane

Manufacturer Part Number

5350526, 5350607, 5350627, 5350627NX, 5350627RX, 5350629, 5355262, 5355263, 5355264, 5355981NX, 5359981, 5359981RX, 5455669,
5456971, 545697100, 545697100H, 545697100HX, 5456971H, 5456971HX, 5457032, 5457032H, 5457032HX, 5457203, 5457203NX, 5457203RX,
5458510, 5458510NX, 5458510RX, 5458511, 5458511NX, 5458511RX

Turbo Model

HE451Ve, HE400VG

CHRA

N/A

Engine

ISC, ISL, B3, B4, ISM

Engine Manufacturer

Cummins

Displacement

320V

Fuel

Diesel

Angle α (compressor housing)

257º

Angle β (turbine housing)

158º

Turbine Wheel

2840238RX (Ind. 66.35 mm, Exd. 71.28 mm, 11 Blades) NEW IN STOCK

Comp. Wheel

(Ind. 61.95 mm, Exd. 92.96 mm, 7+7 Blades, Superback) NEW IN STOCK

Nozzle Ring Assemble

$340.00 NEW IN STOCK

Repair Kit

$124.00 NEW IN STOCK

Turbine Housing AR

VGT

Speed Sensor Kit

4034201H

Electronic Actuator

4034289H (12V) Reman $750.00 Exchange only

Electronic Actuator

4034290H (24V) Reman $750.00 Exchange only

Gasket (turbine inlet)

3088984 $14.02

Gasket Kit

3685535 $21.48

NOTE

Does not include actuator, Actuator it needs to be calibrated to the turbo

Manufacturer

Holset
