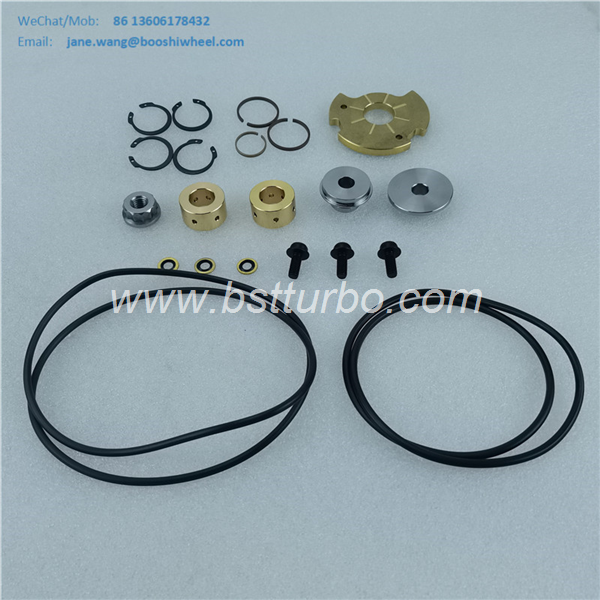

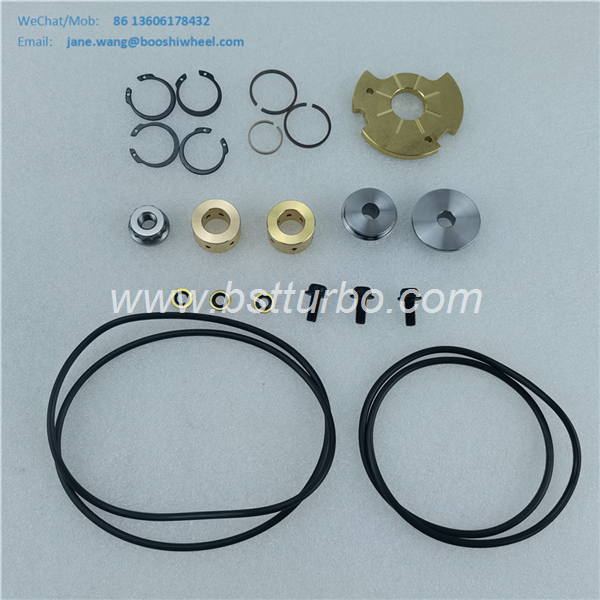

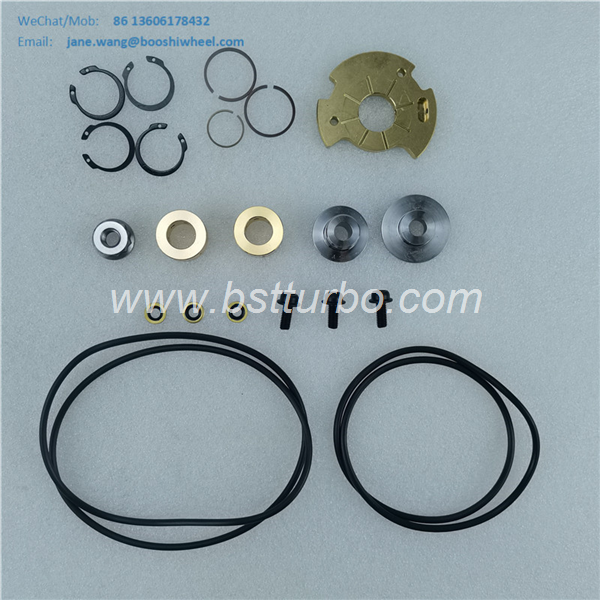

HE561V turbo repair kit 4309076 5350611 4956010 4955425 CPL-2732 turbocharger Cummins, Volvo Truck, Various with ISX1 Engine

Product description:

Turbo Model : HE561V turbo repair kit

Fuel : Diesel

Part Number : 5350611

Brand Name : Booshiwheel

Engine Manufacturer : Cummins

Displacement : 15.0L 15000 ccm

OE number : 4956010 4955425 CPL-2732

Year : 2007-13

Manufacturer Part Number : 2836357, 2838153, 2838154, 2840519

Applications : Cummins, Volvo Truck, Various with ISX1 Engine

标签 : turbo,parts

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	5350611
Previous Version	2836357, 2838153, 2838154, 2840519, 2840520, 2840521, 2881785, 2881785NX, 2881785RX, 2881997, 2881997NX, 2881997RX, 3767615, 3767622, 3767630, 3774601, 3774612, 3774626, 3774640, 3780526, 3792776, 3792786, 3795162, 4042413, 4045031, 4045034, 4309076, 430907600, 430907600HX, 4309076HX, 4309076NX, 4309076RX, 4955425, 4955425NX, 4955425RX, 4956010, 4956010NX, 4956010RX
OE Number	4956010, 4955425, CPL-2732
Manufacturer Part Number	2836357, 2838153, 2838154, 2840519, 2840520, 2840521, 2881785, 2881785NX, 2881785RX, 2881997, 2881997NX, 2881997RX, 2836357, 2838154, 2840520, 2840521, 3767622, 3774612, 2881785, 3774626, 3792786, 4042413, 2881997, 5350641, 535064100, 5350893, 535089300H, 5350893H, 5350893HX, 5359785, 5359785NX, 5359785RX, 5456738, 545673800H, 5456738H, 5457297, 5457297NX, 5457297RX
Year	2007-13
Description	Truck, Various Volvo
Engine Manufacturer	Cummins
CHRA	$1080.00
Turbo Model	HE500VG, HE561VE
Displacement	15.0L 15000 ccm
Engine Model	ISX EGR, ISX1, ISX EGR 15, STA15, ISX 07
Fuel	Diesel
Serial Number	P1001080185
Angle α (compressor housing)	132°
Angle β (turbine housing)	155°
Turbine Wheel	3593822 (Ind. 86. mm, Exd. 72. mm, 12 Blades) $220.00
Comp. Wheel	2843589 (Ind. 70. mm, Exd. 111.7 mm, 8+8) $260.00
Repair Kit	(1154500755) $250.00 NEW IN STOCK
Turbine Housing AR	VGT
Actuator	4034289 (28087185, 28169119, 4034289H, 2835940, 2837201, 3789667, 3789676, 3789677, 3791991, )(12 Volts) $699.00
Control Sensor	4032760NX, 4032673, 4032066, 4045108
Gasket (turbine inlet)	3102314 $19.49
Note	Actuator 12 Volt
NOTE	without actuator 2881786

Applications

2007-13 Cummins, Volvo Truck, Various with ISX1 Engine
