Product description:

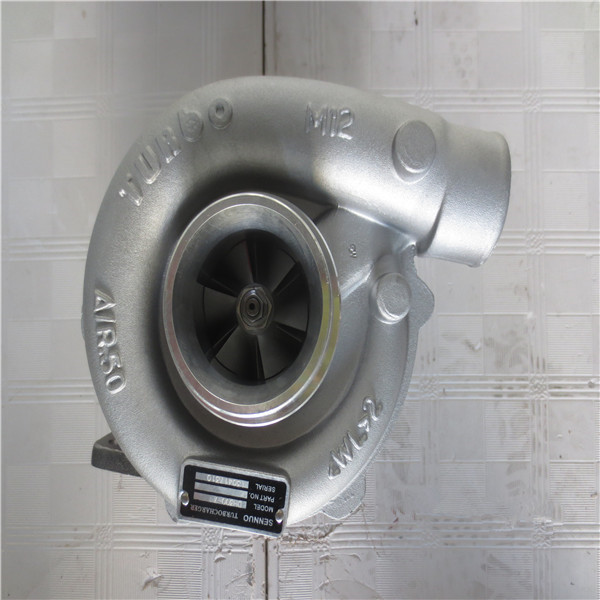

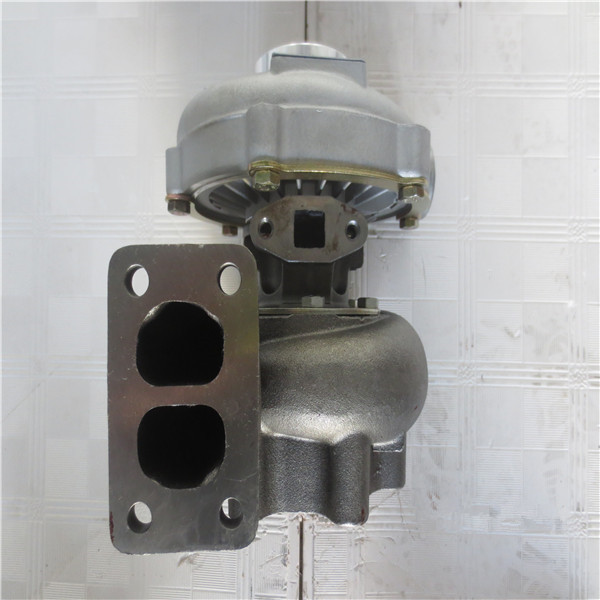

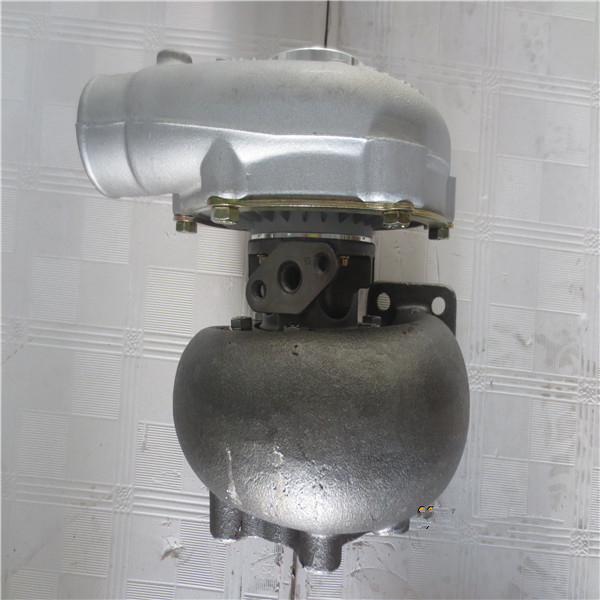

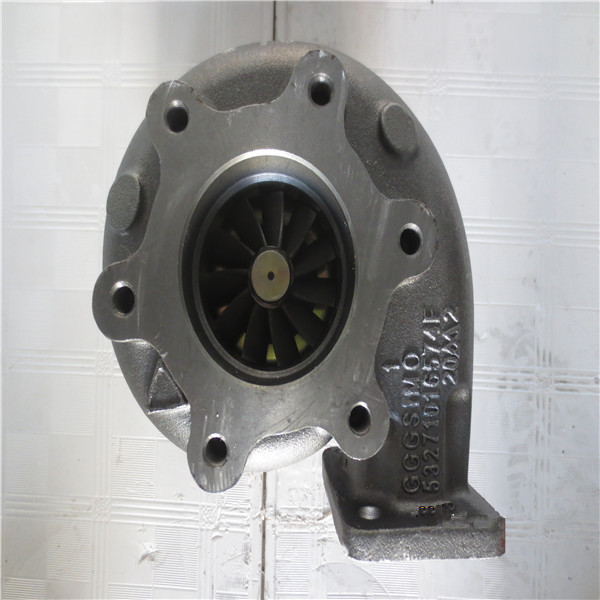

Turbo Model : T04E55
Part Number : 730505-5002S
Brand Name : Booshiwheel
Engine Manufacturer : Daewoo
Displacement : 8.0L, 8000 ccm, 8 Cylinders
KW : 194/260 HP
RPM Max : 2300
OE number : 65091007083, 65.09100-7082, 65.09100-7137
Year : 2006-
Manufacturer Part Number : 730505-0001
Applications : 2006- Daewoo Loader, Excavator 194/260 with DE08TIS Engine
T04E55 730505-0001 65.09100-7082 Turbo for Daewoo
| Part Number | 730505-5002S |
| Previous Version | 730505-0001, 730505-0002 |
| OE number | 65091007083, 65.09100-7082, 65.09100-7137 |
| Year | 2006- |
| Description | Loader, Excavator Earth Moving |
| CHRA | 447450-0137 (447450-5137S) NEW IN STOCK |
| Turbo Model | T04E55 |
| Engine | DE08 Tier II emissions |
| Engine Manufacturer | Daewoo |
| Displacement | 8.0L, 8000 ccm, 8 Cylinders |
| KW | 194/260 HP |
| RPM Max | 2300 |
| Fuel | Diesel |
| Bearing Housing | 430027-0025 (186879, 186881, 312379, 430027-0022, 430027-0048) (1100030450)(Oil Cooled) NEW IN STOCK |
| Turbine Wheel | 446905-0002 (407276-0006, 407276-0019, 410188-0006, 410188-0037, 446905-0005, 446905-0007, 446905-0010, 451309-0003) (Ind. 64. mm, Exd. 73. mm, Trm 77, 11 Blades) NEW IN STOCK |
| Comp. Wheel | 446618-0026 (Ind. 53. mm, Exd. 82. mm, Trm 42, 6+6 Blades) NEW IN STOCK |
| Back plate | 408045-0064/408045-0061 NEW IN STOCK |
| Heat shield Number | 409299-0000/409299-0001 (311943, 7N0012, 3524773B) NEW IN STOCK |
| Repair Kit | 468265-0000 (1100040760) NEW IN STOCK |
| Turbine Housing | 441619-0010 |
| Compressor Cover | 443219-0204 |
| Gasket (turbine inlet) | 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006) |
| Gasket (turbine outlet) | 210274 (Stainless Steel) |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) |
| Gasket oil inlet | 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) |
| Manufacturer | Honeywell-Garrett |
Interchangeable with 730505-5001S, but changes the orientation.Tier II emissions.
2006- Daewoo Loader, Excavator 194/260 with DE08TIS Engine
