  • MYDH Marine turbo RHC61W 119173-18041 119173-18040 VC240101 VD240101 turbocharger for Yanmar Marine 4LHA-DTZE 4LHA-DTE Engine

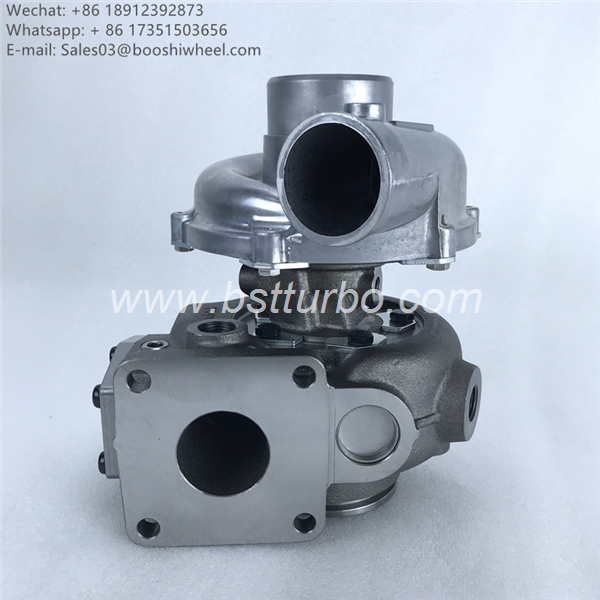

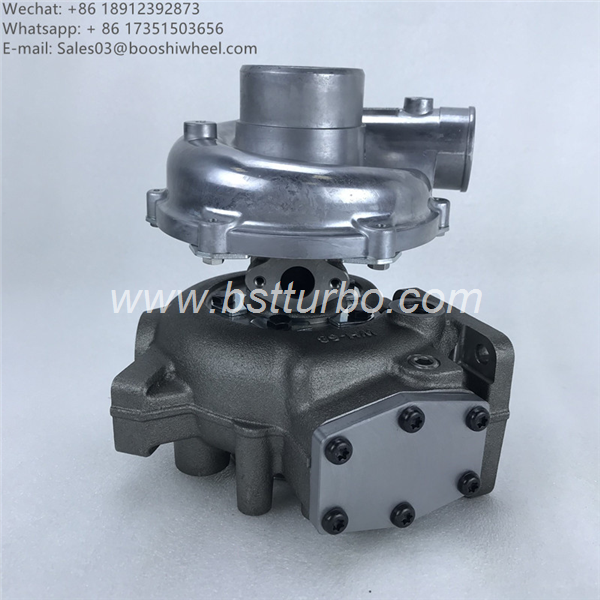

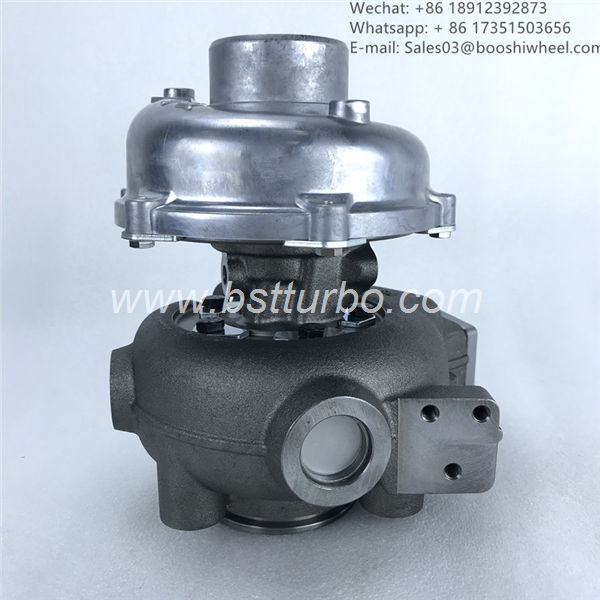

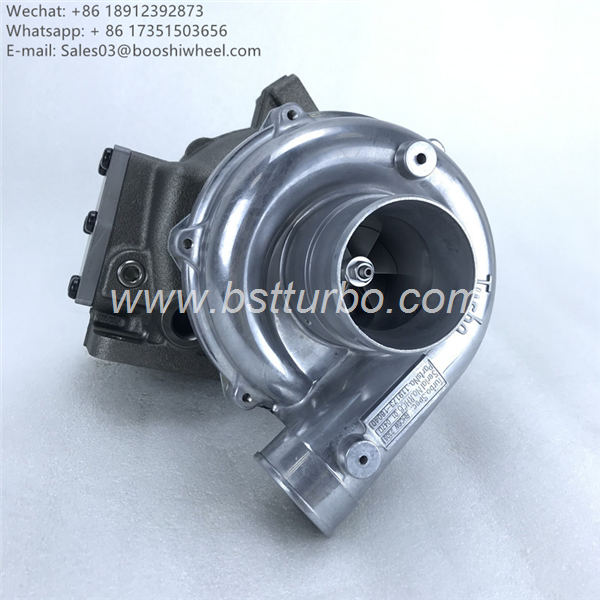

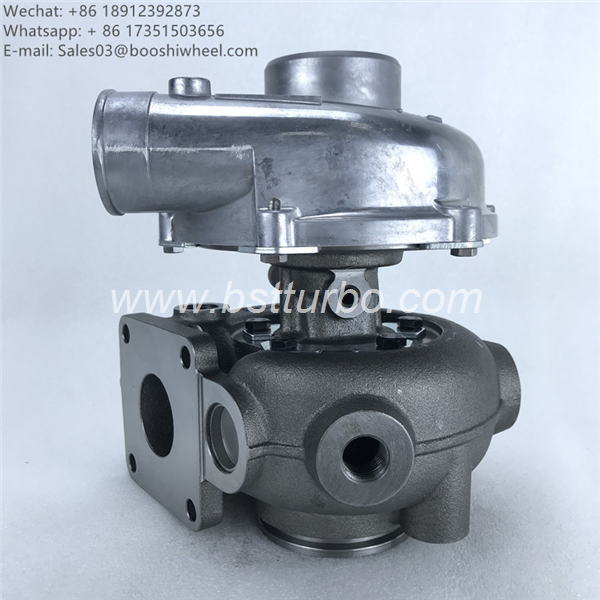

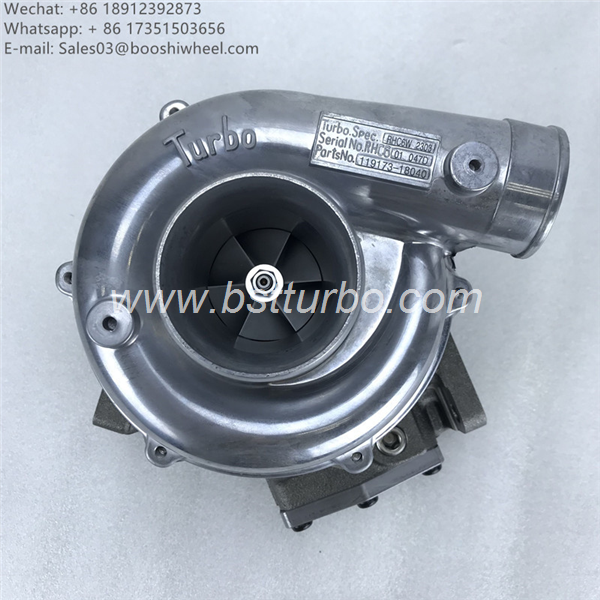

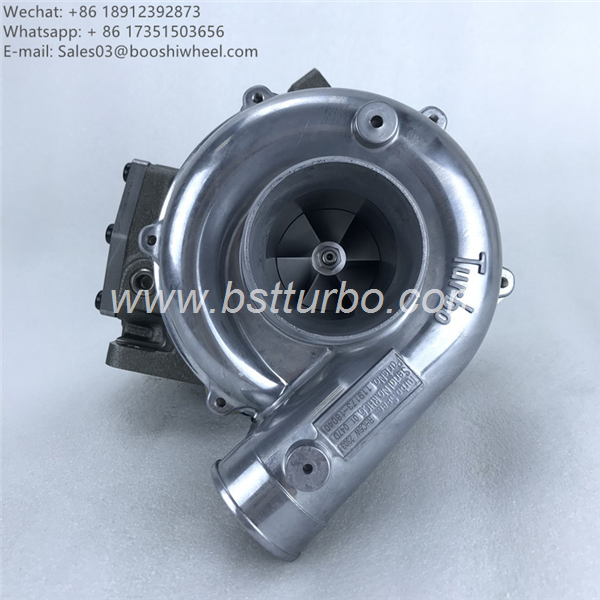

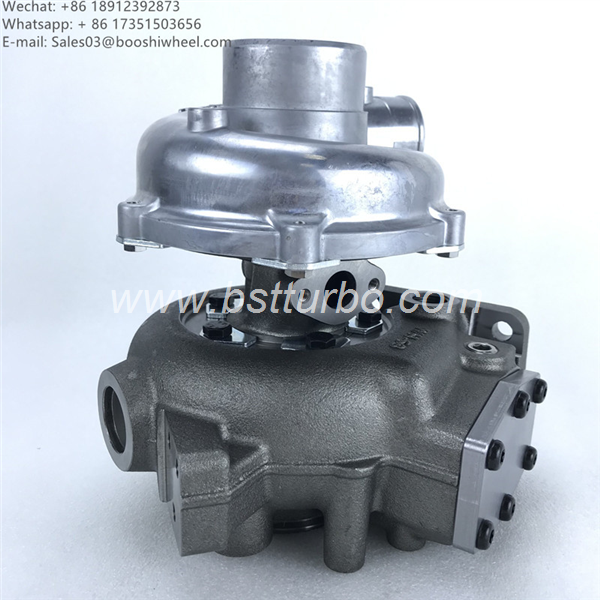

MYDH Marine turbo RHC61W 119173-18041 119173-18040 VC240101 VD240101 turbocharger for Yanmar Marine 4LHA-DTZE 4LHA-DTE Engine

Product description:

Turbo Model : RHC6W

Fuel : Diesel

Part Number : VD240101

Brand Name : Booshiwheel

Displacement : 3.5L, 3456 ccm, 4 Cylinder

OE number : 119173-18040, 119173-18041, 11917318040, 11917318041, C61CND-S0101B, C61CND-S0101G, C61CNDS0101B, C61CNDS0101G

Applications : Yanmar Marine with 4LHA-DTE Engine

标签 : Turbocharger

Welcome to contact us :



Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com



Specification



Part Number VC240101
Previous Part Number VA240101, VB240101, VD240101
OE number 119173-18040, 119173-18041, 11917318040, 11917318041, C61CND-S0101B, C61CND-S0101G, C61CNDS0101B, C61CNDS0101G
V-Spec. MYDH
Description Marine
CHRA NZ854798 (NZ870535) $448.00 NEW IN STOCK, MADE IN USA
Turbo Model RHC61W-1036P16NWBRLL4715CC
Engine 4LHA-DTZE, 4LHA-DTE, 4LHA-DTP, 4LHA-DT(Z)E(P)
Displacement 3.5L, 3456 ccm, 4 Cylinder
Power 140/190/200 HP
Fuel Diesel
Angle α (compressor housing) 70°
Angle β (turbine housing) 100°
Bearing Housing NH163376 (NH163331)(831211260)(831211090)(Oil Cooled) $143.52 NEW IN STOCK
Turbine Wheel NH261301D (171012)(Ind. 62. mm, Exd. 54.71 mm, 11 Blades) $106.80 NEW IN STOCK
Comp. Wheel NH265520 (170268)(Ind. 46.78 mm, Exd. 69. mm, 6+6 Blades, Superback) $125.90 NEW IN STOCK
Back plate NN193012 (171124) $18.55 NEW IN STOCK
Heat shield Number NH163329 (171056) $14.82 NEW IN STOCK
Repair Kit NH169843 (509T-538)(171079) $129.00 NEW IN STOCK
Compressor Cover NH264962
Turbine Housing AR 16
Actuator NH961640 (NH961641)
Gasket (turbine Outlet) 128300-13230
Gasket (oil outlet) 210161 (128300-1323, Gasket paper)

Application:

Yanmar Marine with 4LHA-DTE Engine
