  • RHC7W 119593-18021

RHC7W 119593-18021 Marine MYANE 6LYM-STE 119593-18020 VB290024 Turbo

Product description:

Turbo Model : 119593-18020

Fuel : Diesel

Part Number : 11959318023 11959318022 11959318021 11959318020 11959318024, 119593-18023, 119593-18022, 119593-18021 119593-18020 119593-18024 7T-547

Brand Name : Booshiwheel

Engine Manufacturer : 6LYM-STE, 6LY-STE, 6LY-SIE

Displacement : 5183 ccm , 4 Cylinders

KW : 350HP

OE number : VB290024, VC290024, VD290024

Applications : Marine

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432    Skype : jane.wang_15

QQ: 1127776325

Products description





Part Number

VD290024
Previous versions VB290024, VC290024, VD290024
OE number 11959318023, 11959318022, 11959318021 11959318020 11959318024, 119593-18023, 119593-18022, 119593-18021 119593-18020 119593-18024, 7T-547
IHI Part Number 7T-547
IHI Short spec. MYBN, MYAN, MYBNE
Description Marine
CHRA N/A
Turbo Model RHC7W-12507P22NWBRB6136SUC
Engine 6LYM-STE, 6LY-STE, 6LY-SIE
Displacement 5183 ccm , 4 Cylinders
Power 350 HP
Fuel Diesel
Angle α (compressor housing) 90°
Angle β (turbine housing) 65°
Bearing Housing NH173425
Turbine Wheel NH271343
Comp. Wheel NH175902
Repair Kit NH179874 (509T-533, 509T-534, NN179810) $149.00 NEW IN STOCK
Turbine Housing (Water-Cooled) NH178390
Compressor Cover NH174825
Turbine Housing AR 22
Silencer 119593-18870/119593-18871 $344.41
Compressor Cover 119593-18070 $154.15
Gasket (turbine inlet) 119593-18080 $42.35
Gasket (turbine inlet) 119593-18110 $35.75
Gasket (turbine outlet) 119593-13250 $64.35
Replaced By VA290024, MYANE
Manufacturer IHI















Applications





                                                                                                                        1994-97 Yanmar Marine with 6LYM-STE, 6LY-STE Engine









Products Show

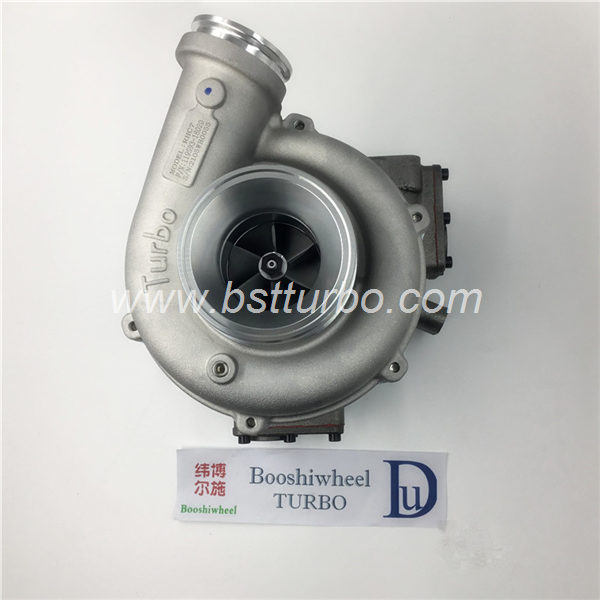

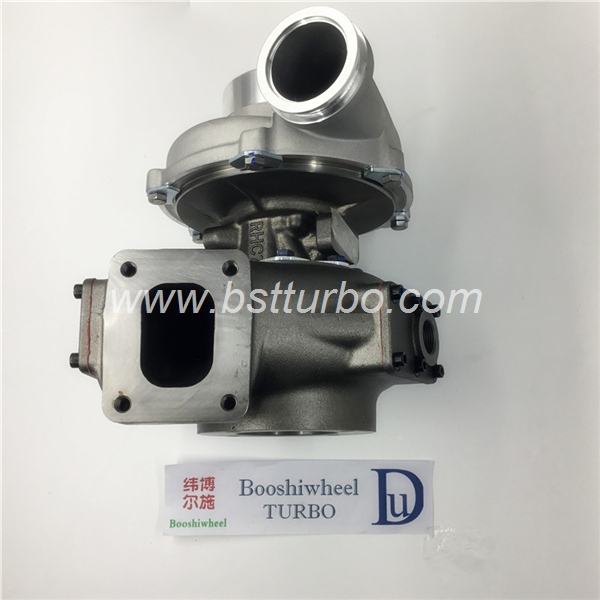

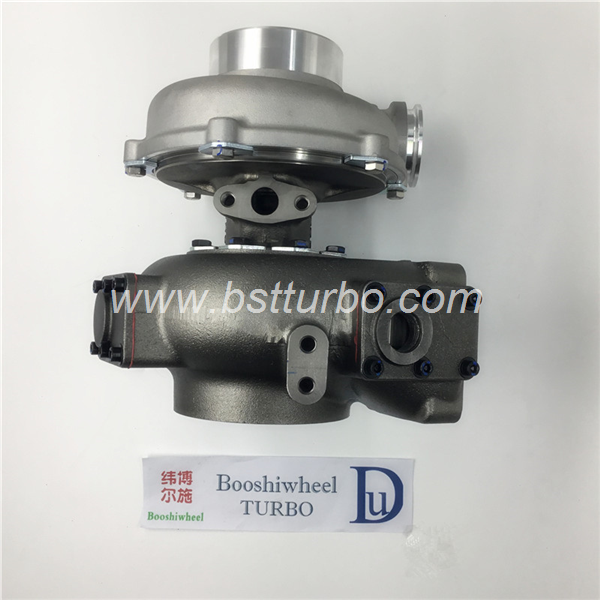

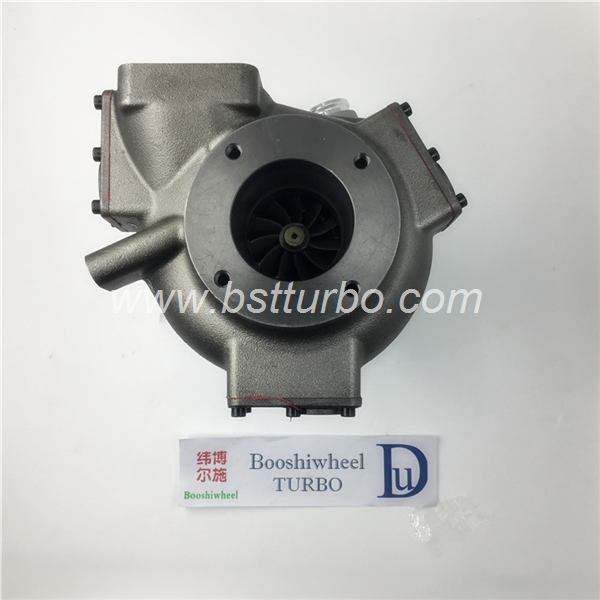

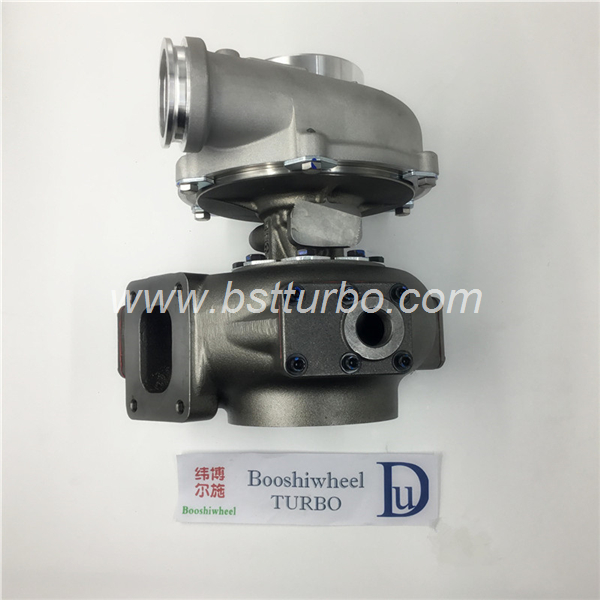

IMG_3111IMG_3114IMG_3119IMG_3121IMG_3122IMG_3125



Company Information

CVE Electron Beam Welding from UK



Studer CNC grinding machine from Switzerland



Okuma CNC machine from Japan



Schenck balancing machine from Germany



db4b5ae09fe4adc47df32967481c35f



Workshop Show

PTD21W}CTUTSHF5I9G`L3VG

1994-97 Yanmar Marine with 6LYM-STE, 6LY-STE Engine
