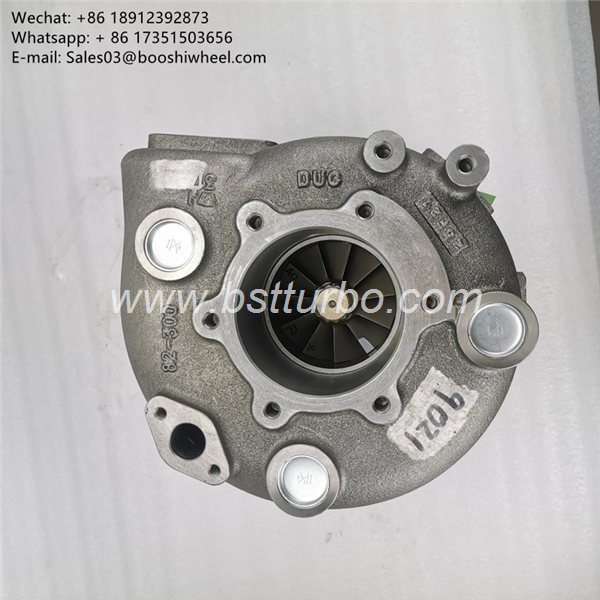

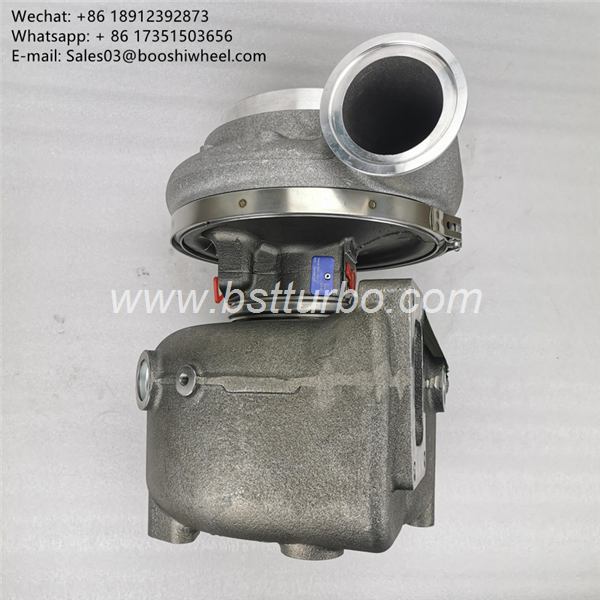

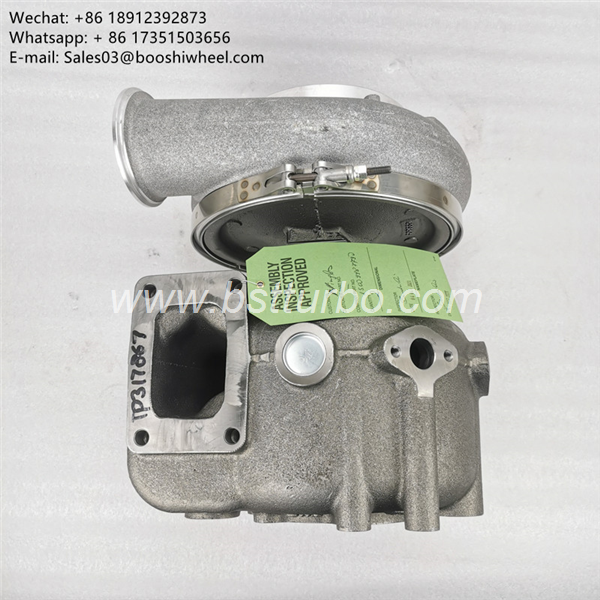

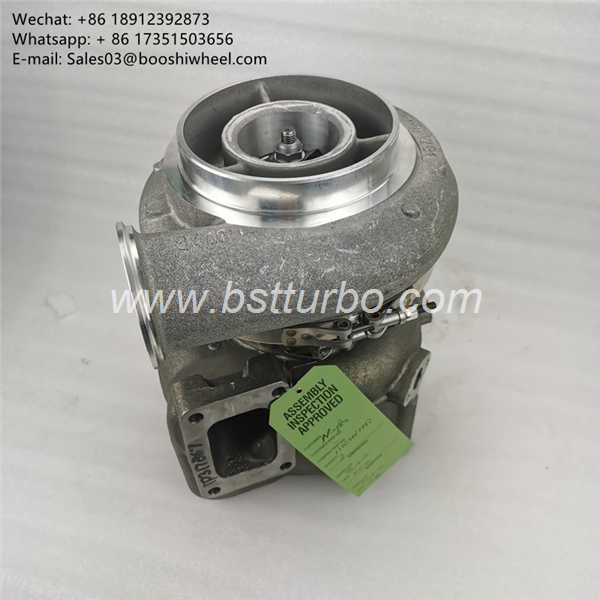

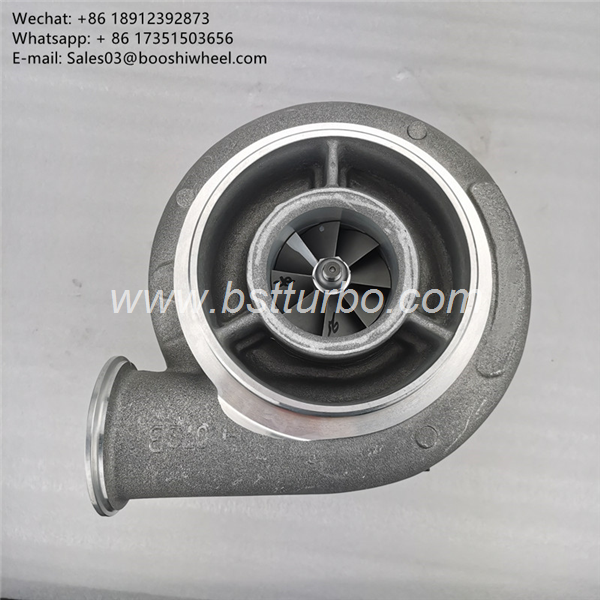

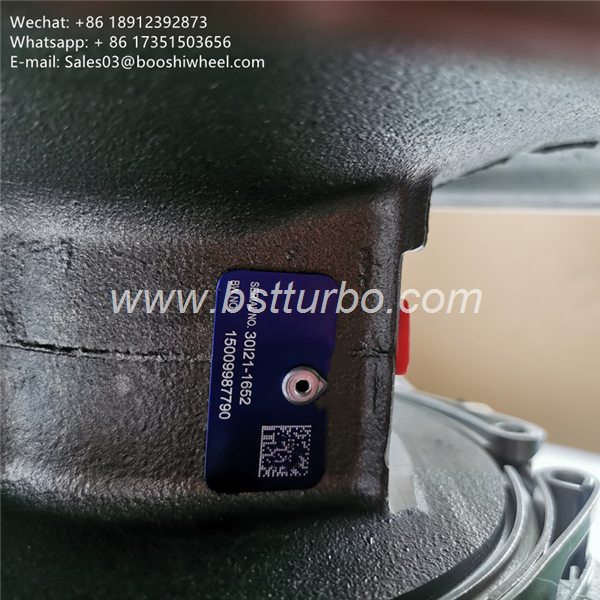

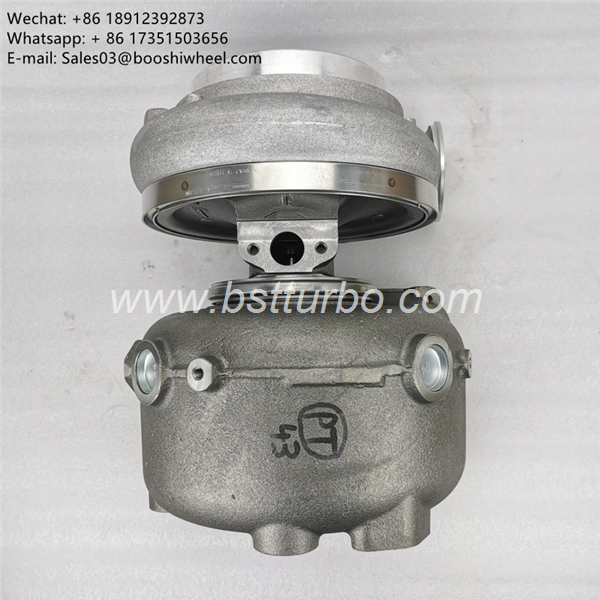

High performance new turbocharger S500W 15009987790 15009707790 317790 3826598 3802116 3802114 ship turbo with MD11 EURO 3 Engine

Product description:

Turbo Model : S500W

Fuel : Diesel

Part Number : 15009987790

Brand Name : Booshiwheel

Displacement : 12.0L, 12000 ccm

KW : 507/680

RPM Max : 2300

OE number : 3826598 3802116 3802114

Year : 1999-11

Applications : 1999-11 Volvo Penta Ship with MD11 EURO 3 Engine

Welcome to contact us :

Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com

Products description

Part Number	15009987790
Previous Version	1500-998-7790, 317790, 1500-988-7790, 1500 998 7790
OE number	3826598, 3802116, 3802114
Year	1999-11
Description	Ship, Marine
Manufacturer Part Number	317790, 1500-970-7790
CHRA	317865
Turbo Model	S500W-110_55AABM/0.82HJ2
Engine Model	D12, D31A, D31B and D31D, MD11 EURO 3
Interchangeable Turbo Part OE No	317790, 3802116, 3826598
Fuel	Diesel
Source Reference	866720
Displacement	12.0L, 12000 ccm
Engine Manufacturer	Volvo - Penta
KW	507/680
RPM Max	2300
Fuel	Diesel
Angle α (compressor housing)	90°
Angle β (turbine housing)	320°
Bearing Housing	317303 (Oil Cooled)
Turbine Wheel	318156 (Ind. 88.95 mm, Exd. 99. mm, 11 Blades)
Comp. Wheel	317294 (Ind. 78.32 mm, Exd. 114.57 mm, Trm 8.99, 8+8 Blades, Billet)
Back plate	317311 (171524)
Heat shield Number	318032
Repair Kit	318416
Turbine Housing (water-cooled)	317867
Compressor Cover	317295
Gasket (turbine inlet)	470939 (417382, 20784537) (Stainless Steel)
Gasket oil inlet	420641 (1006177)
Gasket (oil outlet)	470993 (1027702)
