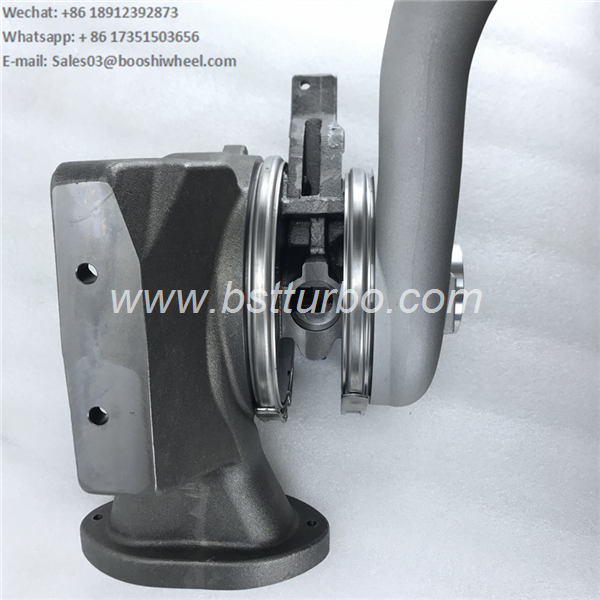

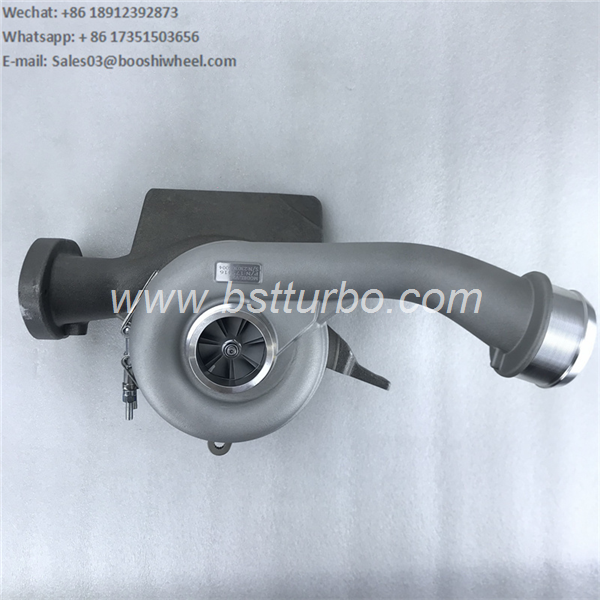

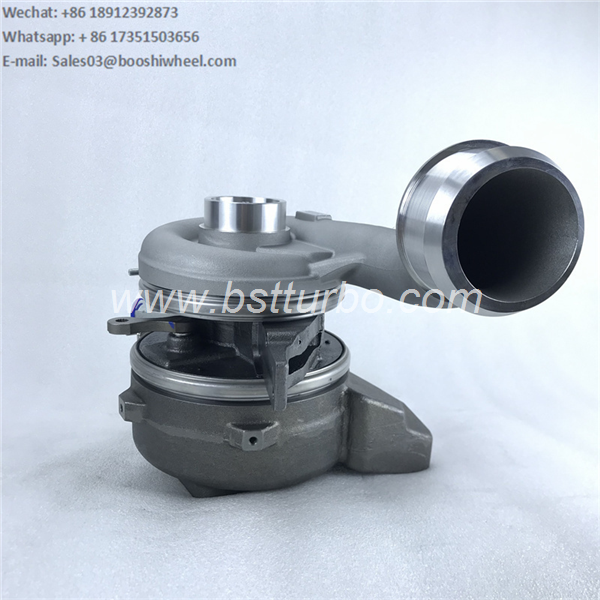

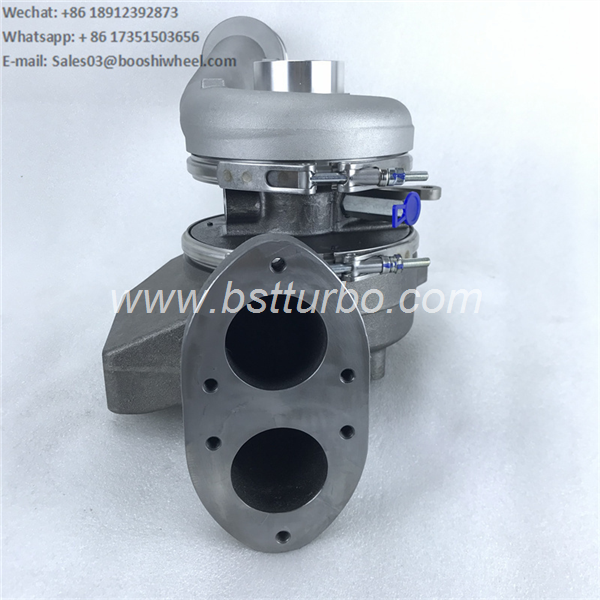

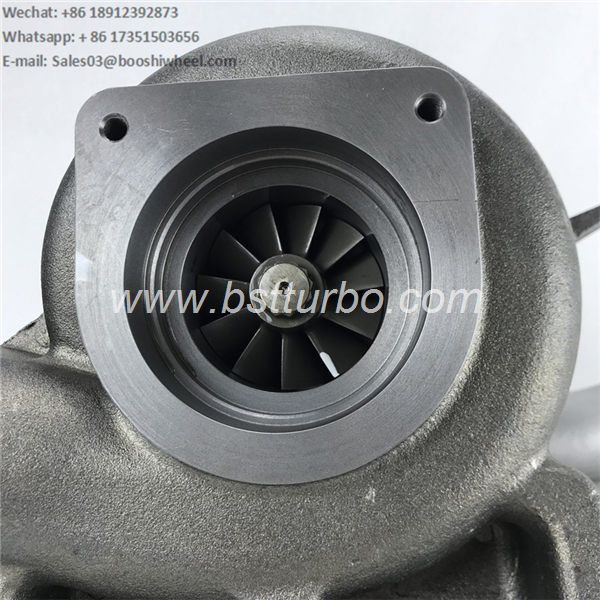

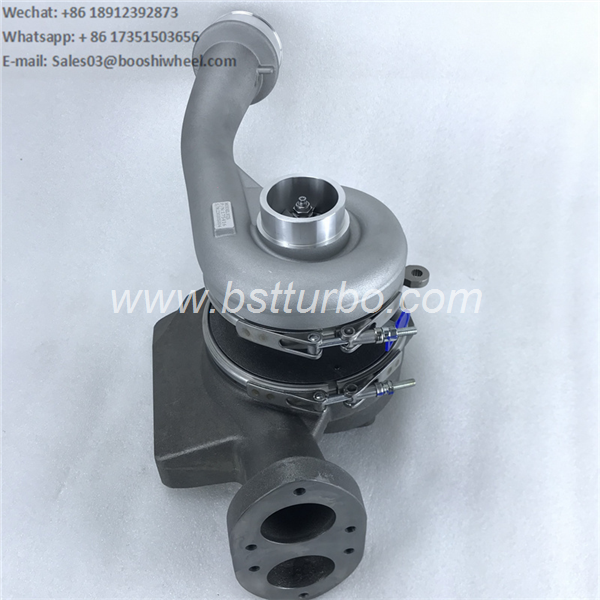

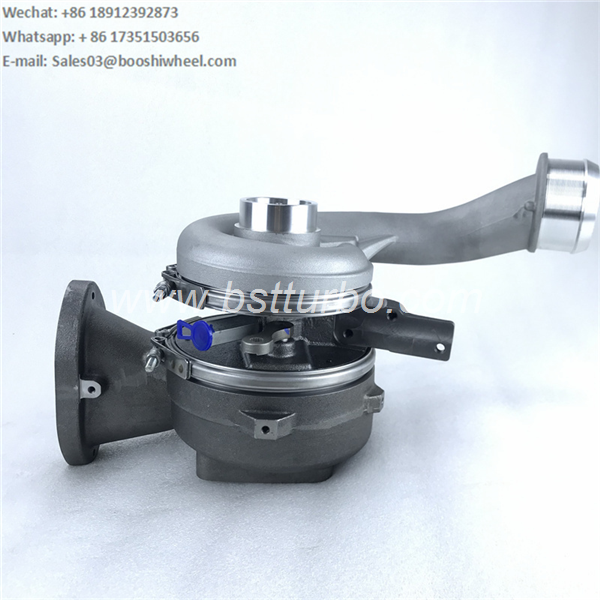

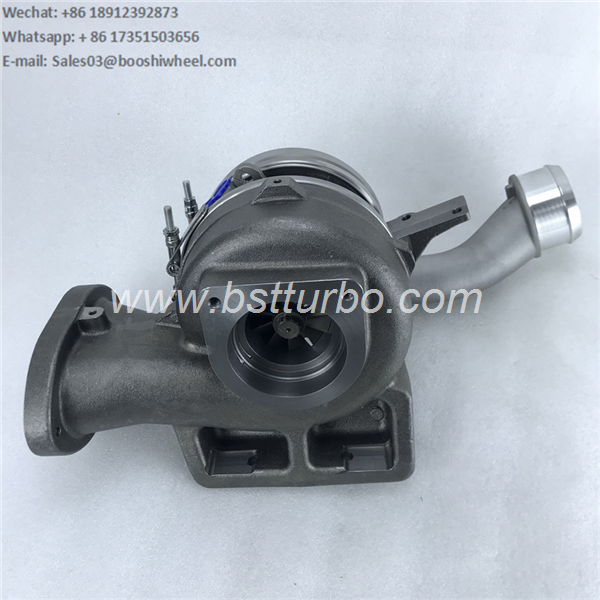

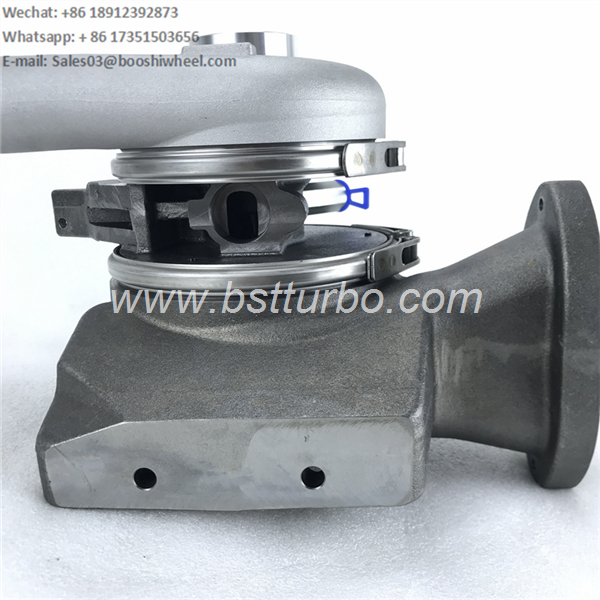

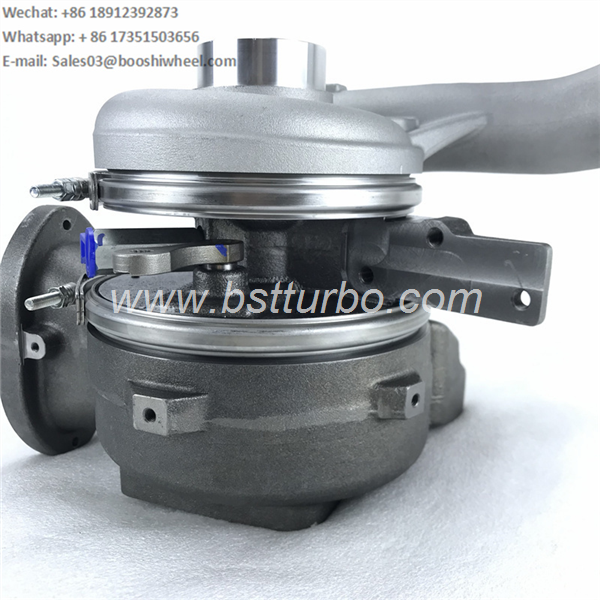

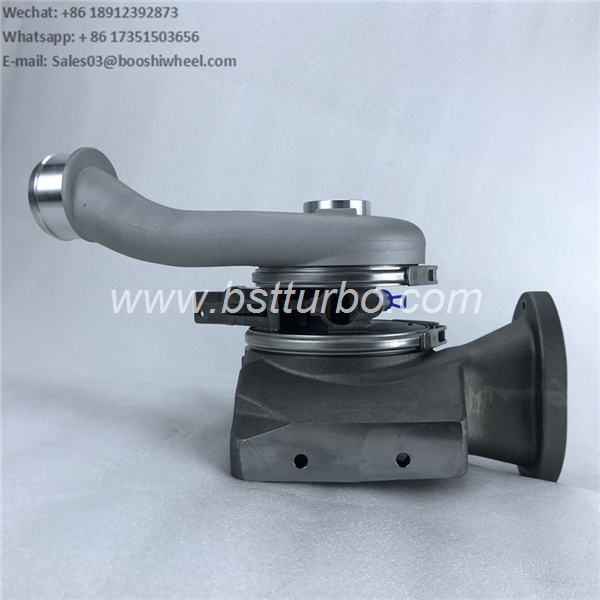

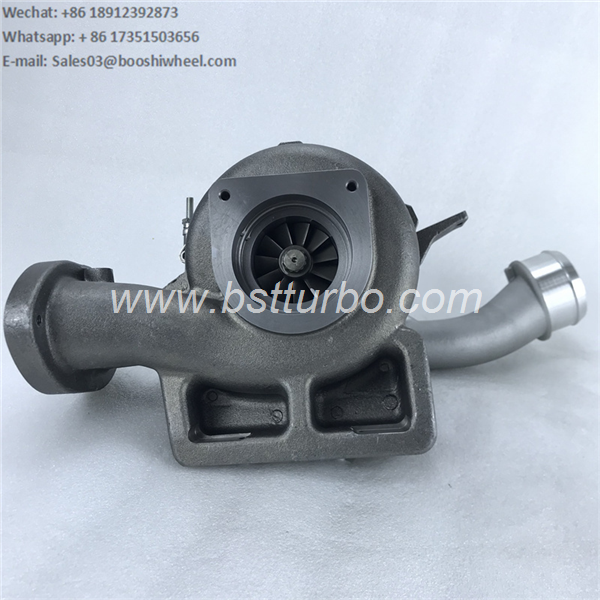

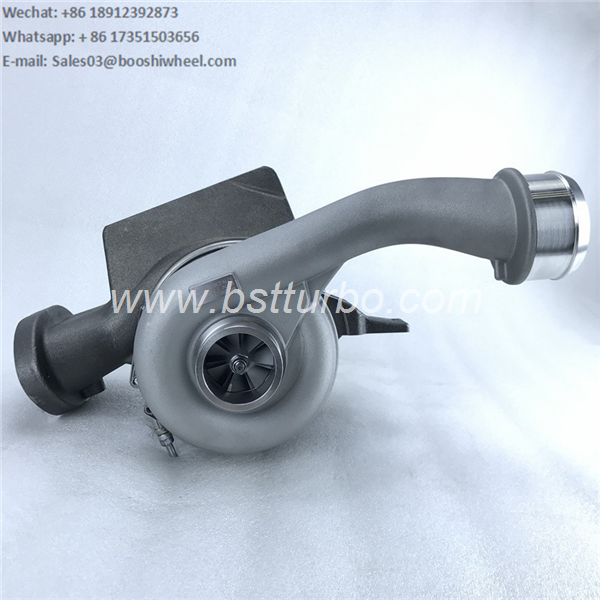

New twin turbocharger V2S BV70 175416 179523 176013 1848300C92 twin turbos for Industrial/Ford with V114 Power Stroke engines

Product description:

Turbo Model : V2S 175416

Part Number : 176013

Brand Name : Booshiwheel

Displacement : 6.4L, 6400 ccm

KW : 350 HP

RPM Max : 3000

OE number : 175416

Year : 2007-10

Applications : 2007-10 International Industrial, Ford (F250/F350/F450/F550) with V114 Power Stroke

标签 : Turbocharger

Welcome to contact us :

Name: Cindy Yang

QQ: 3472219925

Wechat: + 86 18912392873

Whatsapp: + 86 17351503656

E-mail: Sales03@booshiwheel.com

Specification

Part Number	176013
Previous Part Number	176013R, 179514, 179514R,479514, 479515, 479523
OE number	1848300C92, 1848300C93, 1848303C1, 1848300C94, 1848300C95, 1848300C96, 1848303C2, 8C3Z-6K682-B, 1848303C3, 8C3Z-6K682-A, 1848301C1, 1848300C97, 1848300C98, 5010361R92, P4307200R1, P1848300C96, 8C3Z6K682AARM, 8C3Z6K682DARM
Year	2007-10
Description	Truck, Industrial, Ford F250/F350/F450/F550, Twin Turbos
Engine	V114 Power Stroke, B2V HP stage
Displacement	6.4L, 6400 ccm
KW	350 HP
RPM Max	3000
A1 Cardone	2T-220
Turbo Model	BV70, V2S
Manufacturer Part Number (High Pressure)	176466, 177100, 179514, 179523
High Pressure CHRA	175416 (179519, 475416, 479519, S175412N)(1000-070-039, 1000070039) $499.20 NEW IN STOCK, MADE IN USA
Bearing Housing	175411 (Oil Cooled)(1900011388) $198.00 NEW IN STOCK
Turbine Wheel	12701205001 (Ind. 69.97 mm, Exd. 62.61 mm, Trm 8.63, 11 Blades)(1332-002-438, 1270-120-5001, 2100011872) $110.00 NEW IN STOCK
Comp. Wheel	175417 (Ind. 51.96 mm, Exd. 74.29 mm, Trm 12.85, 7+7 Blades, Superback)(1332002402, 1200016526) $48.50 NEW IN STOCK
Back plate	12657100500 (1332002300) $16.96 NEW IN STOCK
Heat shield Number	$15.31 NEW IN STOCK
Repair Kit	(Major)(1332002755) $184.00 NEW IN STOCK
Nozzle Ring	(3000016074) $198.00 NEW IN STOCK
Electronic Actuator	176840 (476840, 5900-110-7387, 59001107387, 8C3Z-9J559-ARM, 8C3Z-9J559-BA, 8C3Z9J559ARM, 8C3Z9J559BA) $606.01
Gasket Kit	GS33566 (8C3Z9T514C, 8C3Z 6N640-B, 1873429C92, 1873429C96, W302511, W302512, 904-263, 904263, 2K220) $68.59
Manufacturer Part Number (Low Pressure)	176013, 177100, 179514, 479514, 177100, 179523, 479523
Low Pressure CHRA	175412 (179526, 475412, 479526, S175416N, 1332-003-900, 1332003900)(1000070040) $450.00 NEW IN STOCK, MADE IN USA
Bearing Housing	(Oil Cooled)(1900011387) $119.20 NEW IN STOCK
Turbine Wheel	(Ind. 79.75 mm, Exd. 73.45 mm, Trm 13.38, 10 Blades)(1100016379) $140.00 NEW IN STOCK
Comp. Wheel	175239 (Ind. 64.44 mm, Exd. 92.32 mm, Trm 13.13, 7+7 Blades, Superback)(1200-016-527) $44.50 NEW IN STOCK
Back plate	$19.00 NEW IN STOCK
Heat shield Number	$15.90 NEW IN STOCK
Repair Kit	(5000040037) $184.00 NEW IN STOCK
High Pressure	479523, 8C3Z6K682B, 8C3Z6K682BRM (B2 model)
Low Pressure	479515, 8C3Z6K682A, 8C3Z6K682ARM (B3 model)
Repair Kit High Pressure	1640301-2 $225.00
Repair Kit Low Pressure	1640301-1 $225.00
NOTE	Electronic Smart Remote Actuator
Installation Kit	179618 $96.99
Manufacturer	Borg Warner - 3K - Schwitzer, BWTS USA

Applications：

2007-10 International Industrial, Ford (F250/F350/F450/F550) with V114 Power Stroke
