  • GT1852V Turbocharger 718089-5008S 718089-0004 8200267138 for Engine G9T 700, G9T 702, G9T702 Euro-3

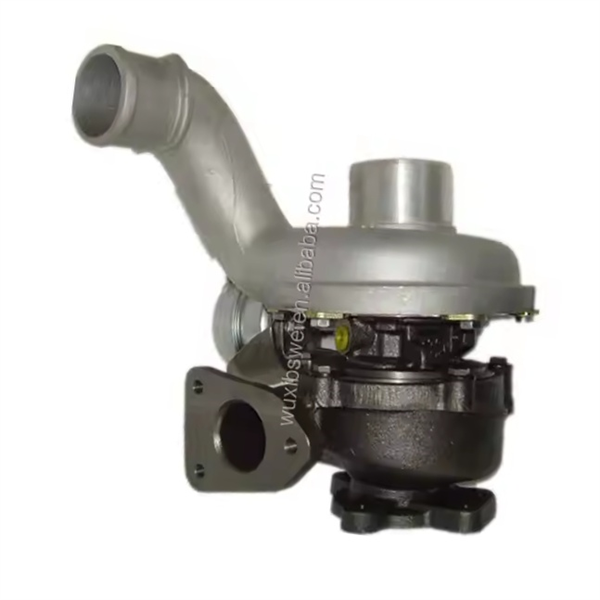

GT1852V Turbocharger 718089-5008S 718089-0004 8200267138 for Engine G9T 700, G9T 702, G9T702 Euro-3

Product description:

Turbo Model : GTA1852V GT1852V 718089-5008S

Fuel : Diesel

Part Number : 718089-5008S

Brand Name : Booshiwheel

现价 : 184

Engine Manufacturer : Renault

Displacement : 2.2L, 2200 CCM, 4 Cylinders

KW : 98/110/150

RPM Max : 4250

OE number : 8200267138 8200447624A 7701475282 8200447624 7711134877 8200683860 7701476620 8200267138A 8200221363

Year : 2001-06

Manufacturer Part Number : 718089-0001 718089-0002 718089-0003 718089-0004 718089-0005 718089-0006 718089-0007 718089-5007S

Applications : 2004-06 Renault Laguna dCi with G9T 700, G9T 702 Engine

标签 : G9T,700,,G9T,702,,G9T702,Euro-3

Wuxi Booshiwheel Power Technology Co.,Ltd.

Name:Adam Xu

Wechat:T13606178234

E-mail:Sales03@booshiwheel.com

Web Site:https://wuxibswe.en.alibaba.com

Part Number 718089-5008S
Previous Version 718089-0001 718089-0002 718089-0003 718089-0004 718089-0005 718089-0006 718089-0007 718089-5007S
OE Number 8200267138 8200447624A 7701475282 8200447624 7711134877 8200683860 7701476620 8200267138A 8200221363
Year:2001-06
Description:Espace, Avantime, Vel Satias dCi
CHRA:703890-0138 (S2)
Turbo Model GTA1852V GT1852V
Engine G9T 700, G9T 702, G9T702 Euro-3
Engine Manufacturer:Renault
Displacement:2.2L, 2200 CCM, 4 Cylinders
KW:98/110/150
RPM Max:4250
Fuel:Diesel
Angle α (compressor housing):90
Angle β (turbine housing):157
Bearing Housing:722282-0091 (S2)
Turbine Wheel:704580-0008/704580-0003
Comp. Wheel:702492-0011
Back plate:701335-0004
Heat shield Number:433112-0001
Repair Kit:732252-0001
Nozzle Ring Assembly:717505-0001/704013-13
Turbine Housing:715697-0002
Compressor Cover:725381-0004
Turbine Housing AR:VNT2
Actuator:434855-0074
Settings waste gate (pressure):0.197-0.203/0.520-0.560 bar
Settings Waste gate (lift shaft):1.0-3.5/0.2 mm
Gasket (turbine inlet):210587
Gasket (turbine outlet):210588
Gasket (oil outlet):210243

Applications:
2003-06 Renault Vel Satis dCi with G9T 700, G9T 702 Engine
2003-06 Renault Espace dCi with G9T 700, G9T 702 Engine
2004-06 Renault Laguna dCi with G9T 700, G9T 702 Engine
2001-06 Renault Avantime with G9T 700, G9T 702 Engine
