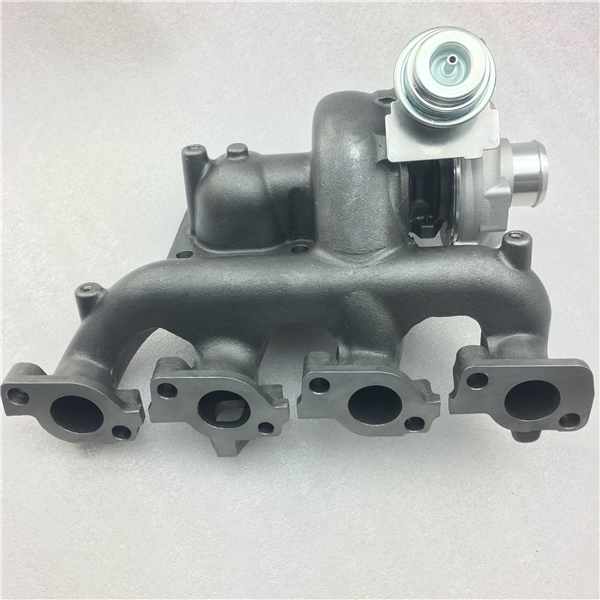

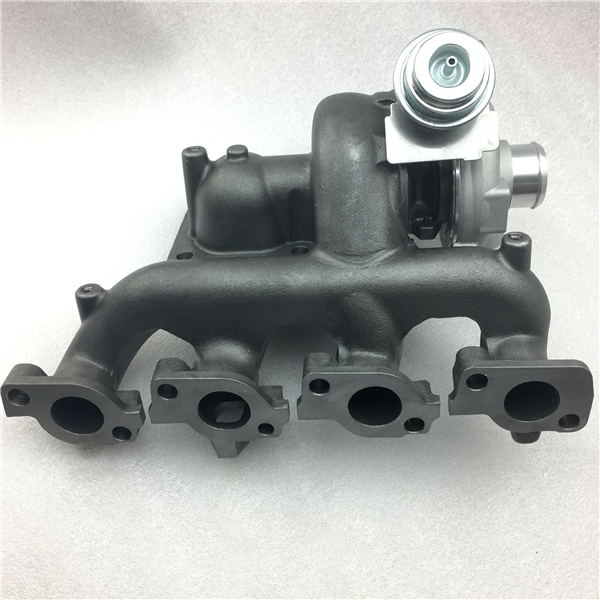

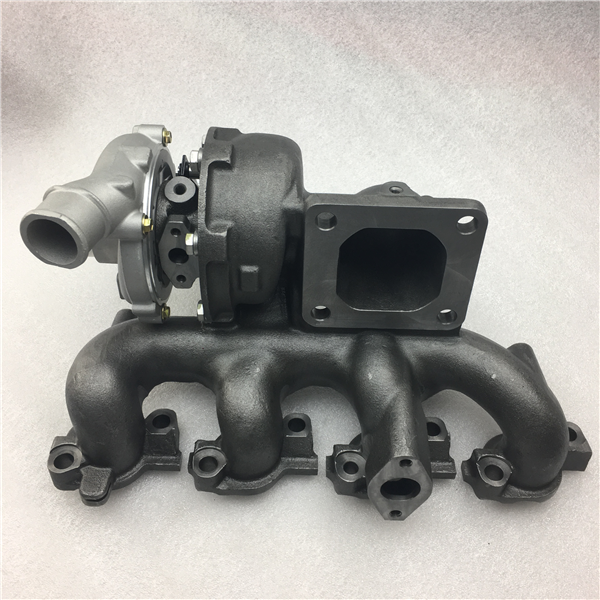

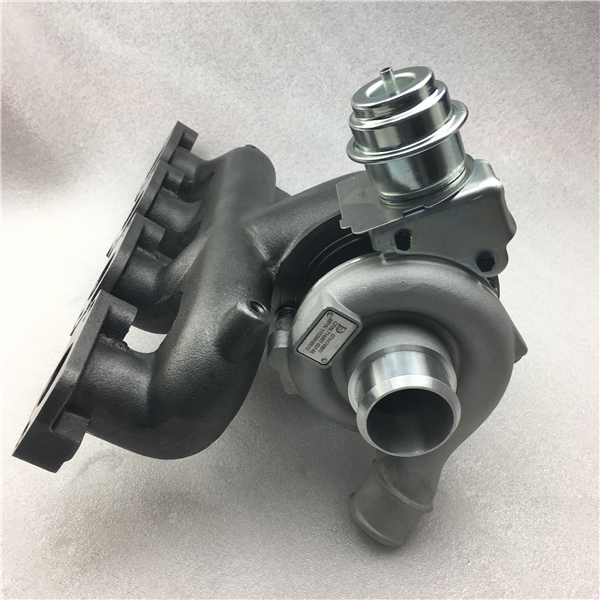

GTA1749MV 714467-0014 714467 Turbo for Ford 2.0L

Product description:

Turbo Model : GTA1749MV

Fuel : Diesel

Part Number : 714467-5014S

Brand Name : Booshiwheel

Engine Manufacturer : Ford

Displacement : 2.0L, 2000 ccm, 4 Cylinders

OE number : 2S7Q6K682AG 2S7Q6K682AC

Manufacturer Part Number : 714467-0003, 714467-0004, 714467-0005, 714467-0007, 714467-0008,

Applications : 2001-05 Ford Mondeo TDCi with Duratorq DI Engine

GTA1749MV 714467-0014 Turbo for Ford 2.0L

Part Number	714467-5014S
Previous Version	714467-0003, 714467-0004, 714467-0005, 714467-0007, 714467-0008, 714467-0012 , 714467-0013, 714467-5013S
OE number	2S7Q6K682AG, 2S7Q6K682AC, 2S7Q6K682AE, 2S7Q6K682AF, 2S7Q6K682AD, 3S7Q6K682AE, 3S7Q6K682AF, 1383646, 3S7Q6K682AD, 1435150, 2S7Q6K682AJ, 1132648, 1202122, 1219649, 1256751
Year	01-05
Description	Ford Mondeo III, Jaguar X Type
CHRA	433395-0030 (433395-0025) NEW IN STOCK, MADE IN USA
Turbo Model	GT1749V, GTA1756
Engine	Duratorq DI
Engine Manufacturer	Ford
Displacement	2.0L, 2000 ccm, 4 Cylinders
KW	96/130 HP
RPM Max	4000
Fuel	Diesel
Bearing Housing	722282-0077
Turbine Wheel	434533-0006
Comp. Wheel	702489-0002
Back plate	700593-0003
Heat shield Number	433112-0001
Turbine Housing AR	VNT2
Gasket exhaust manifold	210538
Gasket (turbine outlet)	210537
Gasket (oil outlet)	210243
Gasket actuator EGR	210546
Settings Waste gate (pressure)	0.264-0.269 bar
Settings Waste gate (lift rod)	0.5-2.5 mm
Manufacturer	Honeywell-Garrett
