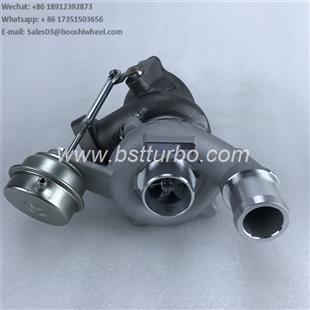

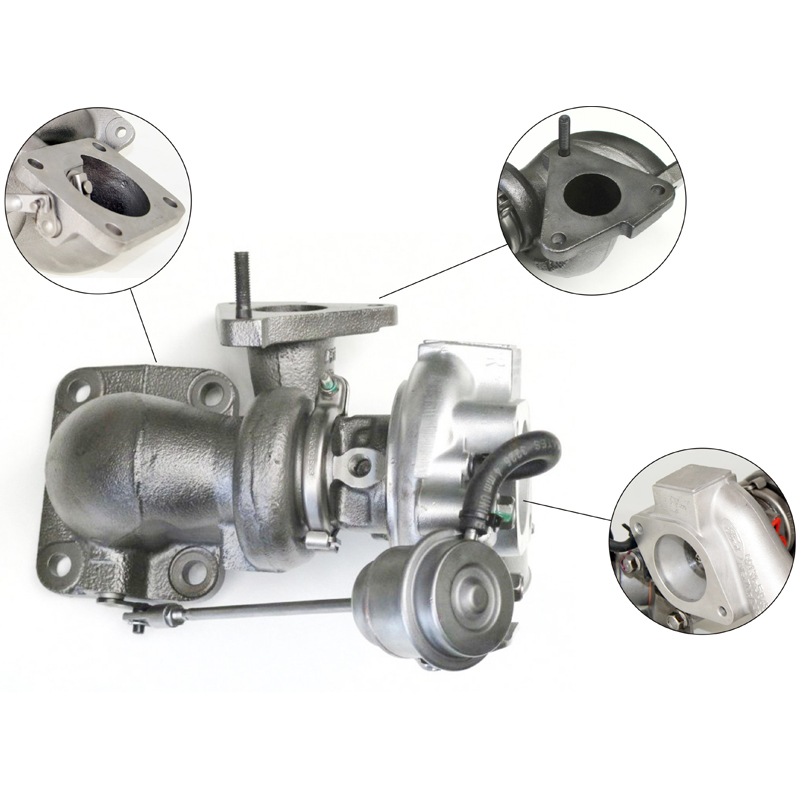

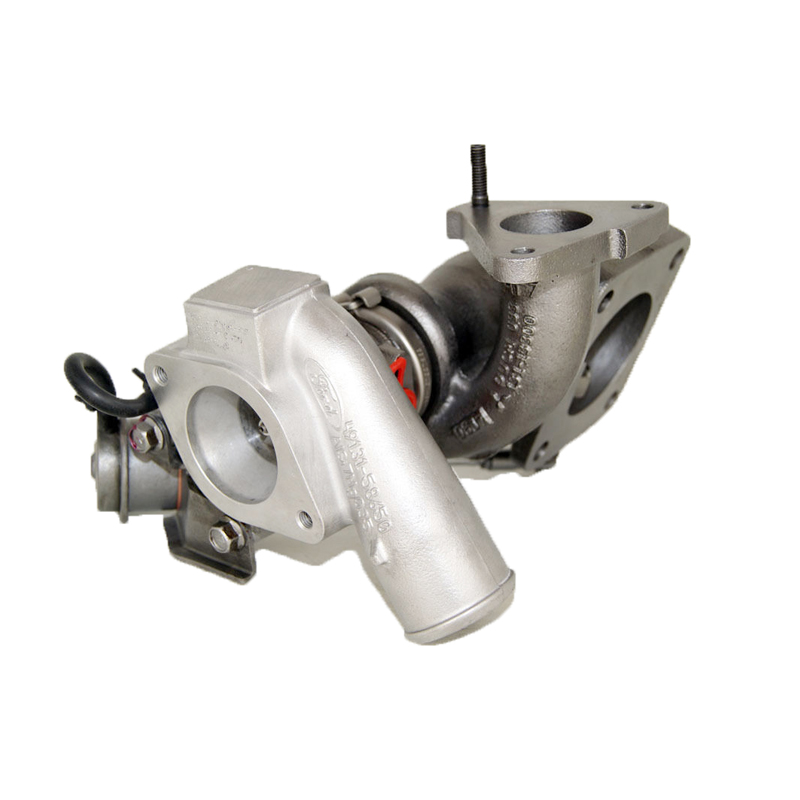

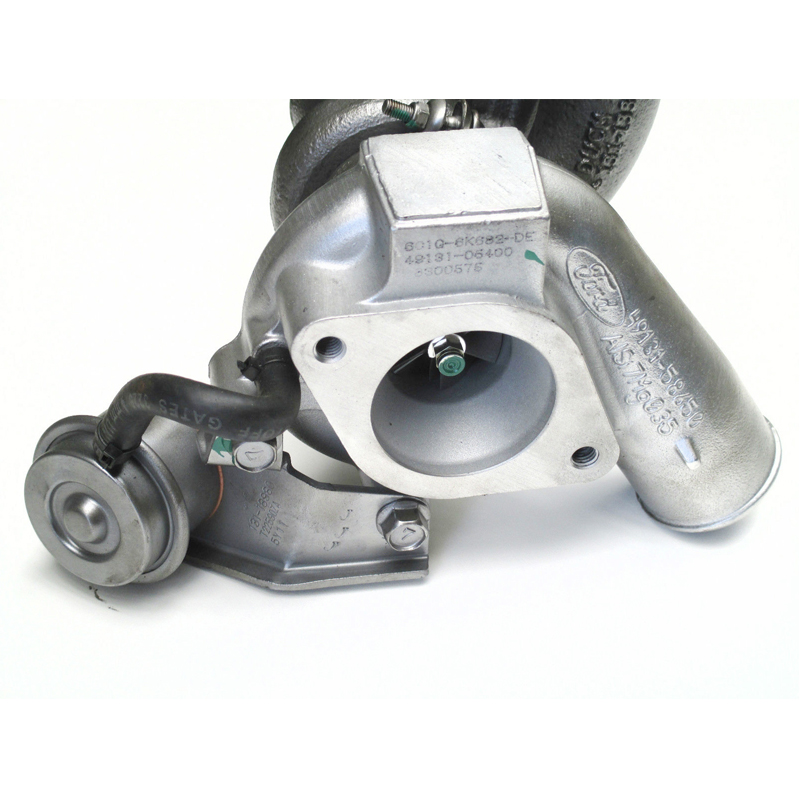

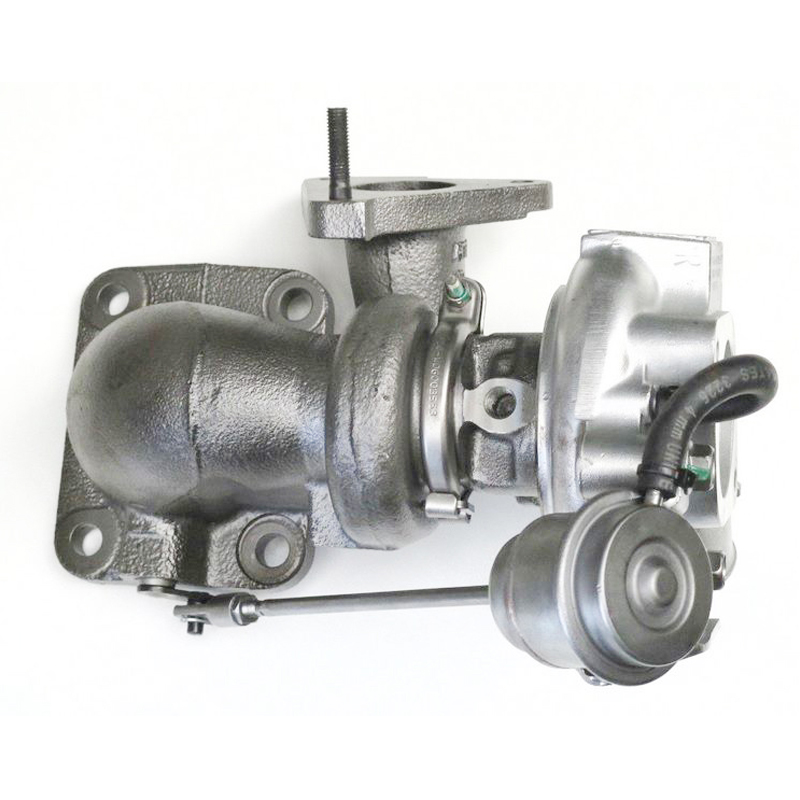

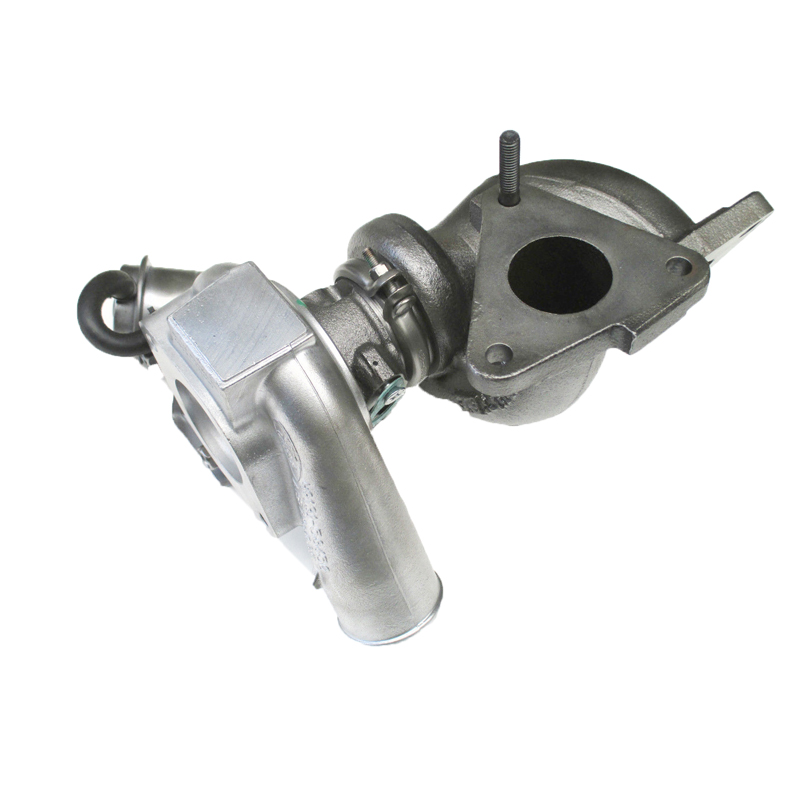

TD03 49131-05400 turbo for ford

Product description:

Turbo Model : TD03L4-09GK-3.3

Fuel : Gasoline

Part Number : 49131-05400

Brand Name : Booshiwheel

Engine Manufacturer : Ford

Displacement : 2.4L, 2400 ccm

KW : 99114/119

OE number : 6C1Q-6K682-DE,6C1Q6K82DE,6170432,1449608

Year : 2006

Applications : 2006- Ford Transit TDCi 100, 115, 120 Engine Puma

product describtion

previous Part Number	4913105400, 49131-05401 49131-05402
CHRA	49131-08610
Engine	JXFC/JXFA, PHFA/PHFC, Puma, V348 2.4 74/85 kW
Bearing Housing	NEW IN STOCK
Turbine Wheel	NEW IN STOCK
Comp. Wheel	NEW IN STOCK
Back plate	NEW IN STOCK
Repair Kit	NEW IN STOCK
Actuator	49131-18980
Settings waste gate (pressure)	1.560-1.620/1.790-1.870 Bar
Settings Waste gate (lift shaft)	1.00/5.00 mm
Gasket (turbine inlet)	210868
Gasket (oil outlet)	210243
Replaced by	49131-05403, 49S31-05452

05400

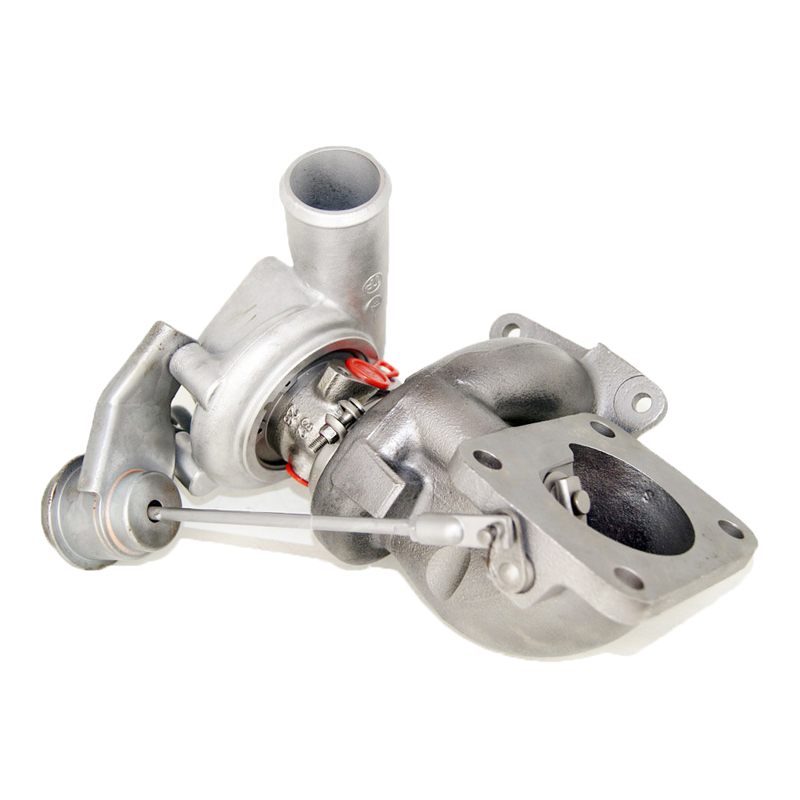

57 (1)

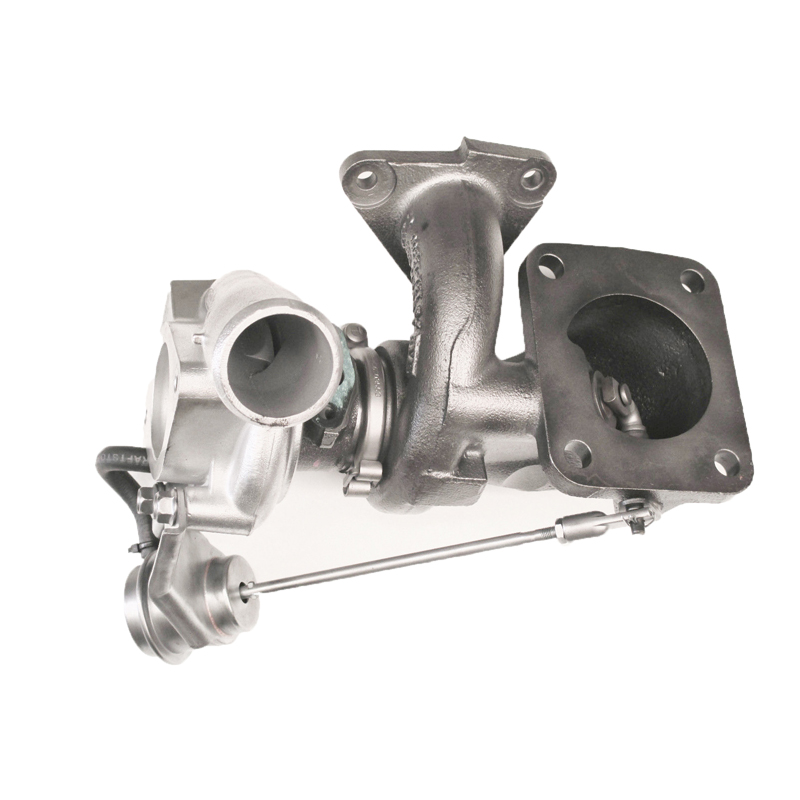

57 (3)
