Products description

Product Specifications:
* * Horsepower: 700 - 1050HP
Displacement: 2.5 - 5.5L
* Garrett® G Series Compressor Aerodynamics for maximum HP.
* Fully machined Speed Sensor and pressure ports.

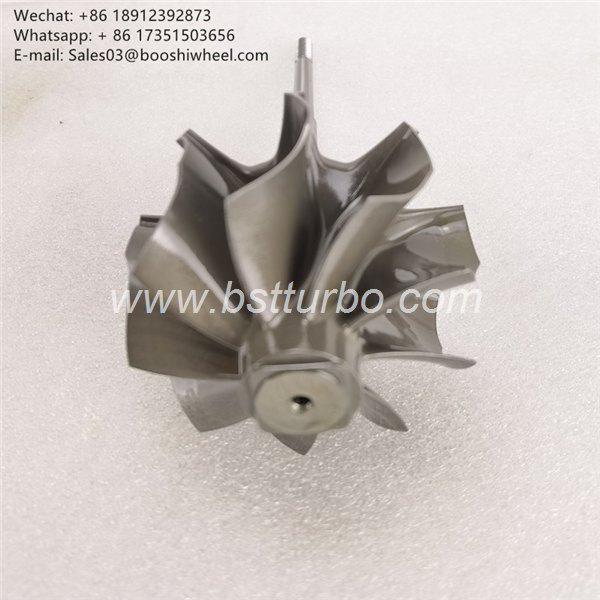

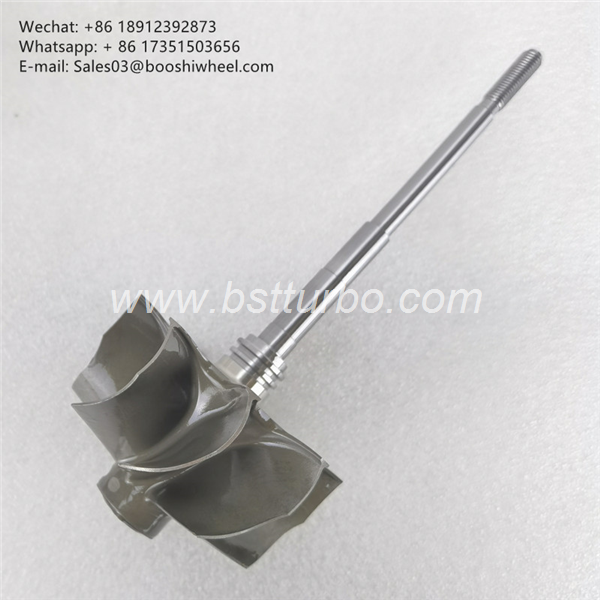

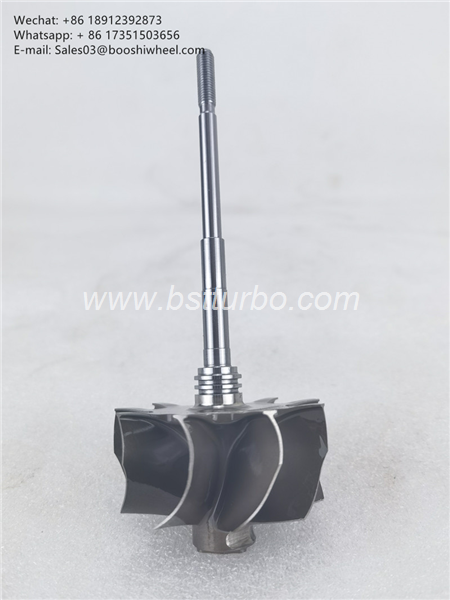

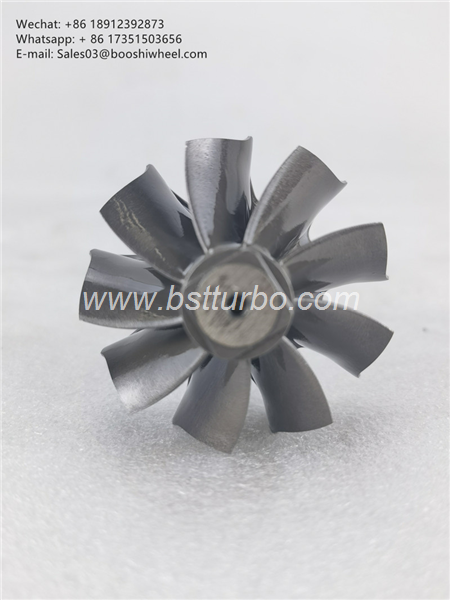

* New Turbine Wheel Aero constructed of MAR-M alloy rated 1055ºC
* Stainless Steel wastegated and non wastegated turbine housing option capable of 1050°C.
* Oil restrictor and water fittings included.
* Reverse rotation.
* Compressor side: TRIM 65 A/R 0.75
* Compressor Air Inlet: Hose 4.00" (101.60mm)
* Compressor Air Outlet: Hose 2.00" (51.15mm)
* Bearing housing: Water and Oil cooled system.

* Product Description:
* Garrett® G35-1050 REVERSE Rotation Supercore (Turbo without turbine housing).
*


Product Features:
* New G Series compressor wheel aerodynamics
* Fully machined speed sensor and pressure ports
* Standard and reverse rotation configurations available
* Oil restrictor and water fittings included with purchase
* One piece center housing and backplate for increased durability
* 4 water jacket ports for customizable installation
* Mar-M turbine wheel material rated up to 1050° C | 1922° F
* Product Specifications:
* Compressor Wheel Inducer: 68mm
* Compressor Wheel Exducer: 84mm
* Compressor Wheel Trim: 65
* Compressor Housing A/R: 0.72
* Turbine Wheel Inducer: 68mm
* Turbine Wheel Exducer: 62mm
* Turbine Wheel Trim: 84
* Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
* Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
* Oil feed fitting with .035" restrictor: ATP-OIL-021
* Oil drain flange: Product Code: ATP-FLA-010
* Oil drain gasket: Product Code: GRT-GSK-008
* Oil drain fasteners: Product Code: MIA-FST-034
* Boost Pressure Port Fitting: ATP-FTG-198


NOTE: Alternate coolant and oil fittings and flanges are available.
