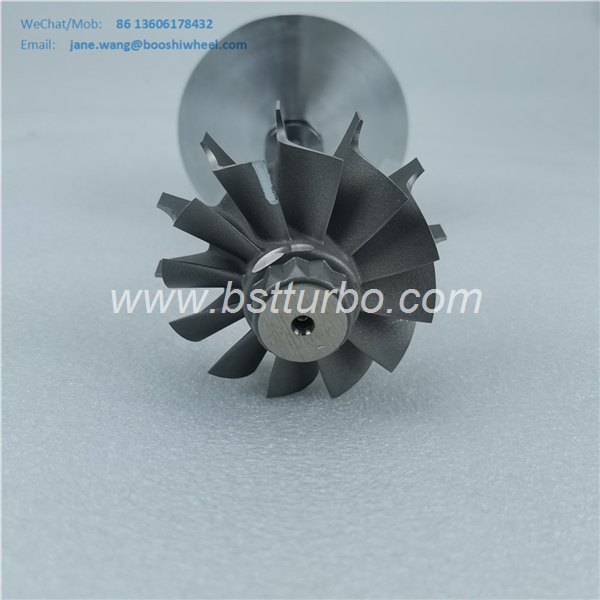

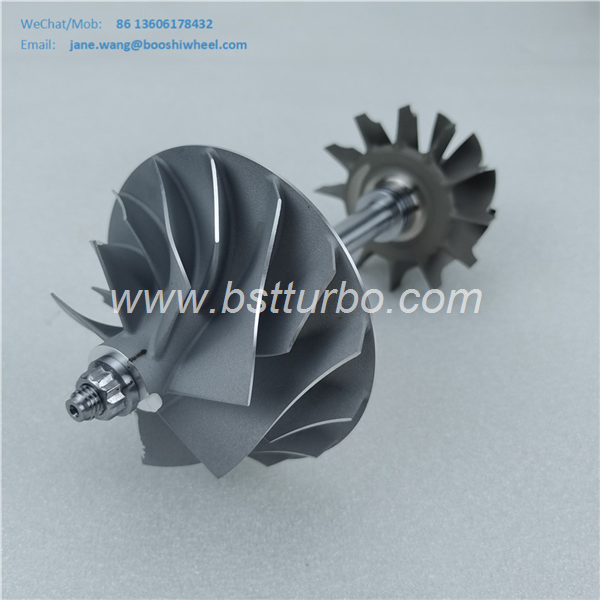

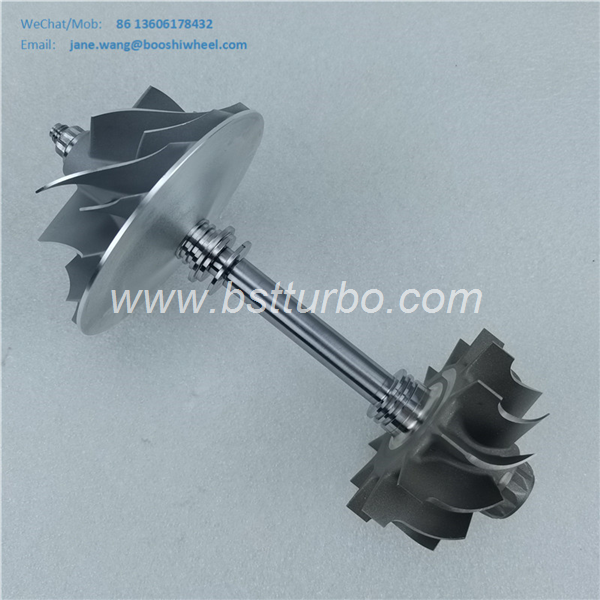

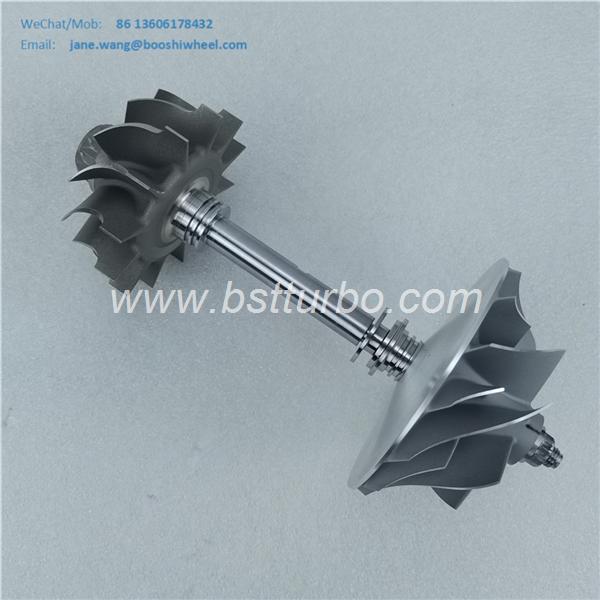

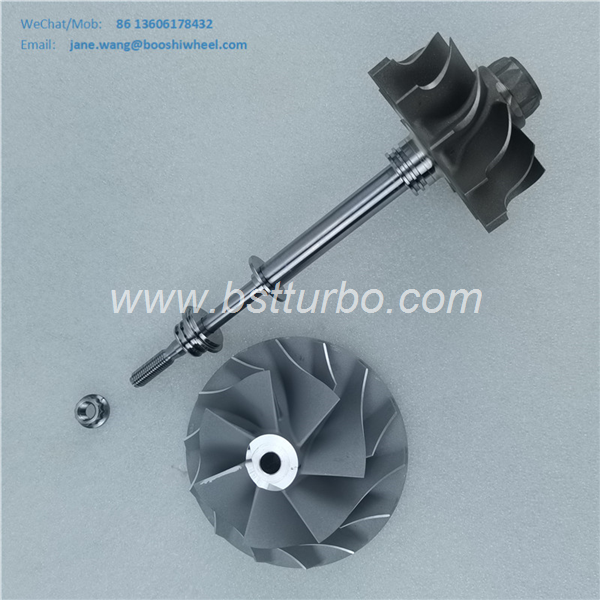

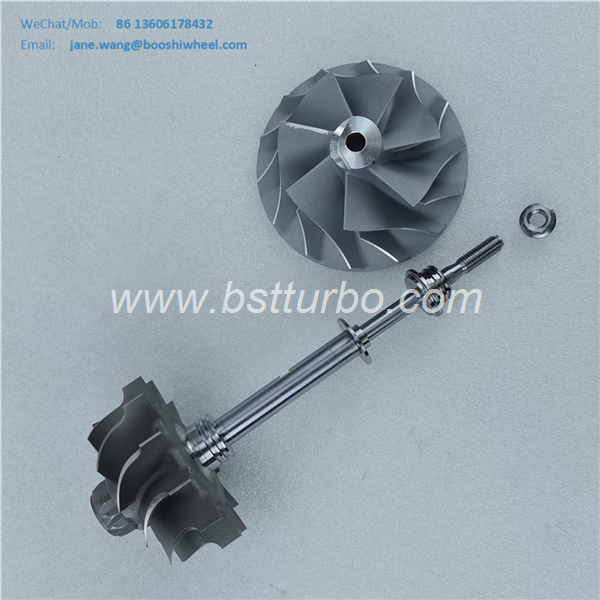

H300VG HE300VG HE300 rotor shaft turbo 3775427 3775439 3779986 3779987 3781633 3781755 3787607 3787608 3794756 Dodge Ram Pickup Trucks 2500/3500 , Various All Engine ISB

Product description:

Turbo Model : H300VG

Fuel : Diesel

Part Number : 5326055

Brand Name : Booshiwheel

Engine Manufacturer : ISB13, ISB, 6BTA EURO 6

Displacement : 6.7L, 6700 ccm

OE number : 4352218NX, 4352218RX, 68212739AA, 68253984AA, 68319155AA, 68321378AA

Year : 2003-12

Manufacturer Part Number : , 532605800HX, 5326058H, 5326058HX, 5327045, 5327045NX

Applications : turbocharger for Dodge Ram 2500 All Engine ISB

标签 : HE300VG,turbo,back,wheel

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	5326055
Previous Version	3775427, 3775439, 3779986, 3779987, 3781633, 3781755, 3787607, 3787608, 3794756, 3794758, 3798535, 3798539, 3798573, 3798573NX, 3798573RX
OE number	4309356, 4309356NX, 4309356RX, 4352218, 4352218NX, 4352218RX, 68212739AA, 68253984AA, 68319155AA, 68321378AA
Year	2013-20
Description	fits for Dodge Ram Pickup Trucks 2500/3500 , Various
Manufacturer Part Number	5326048, 5326055, 5326058, 532605800, 532605800H, 532605800HX, 5326058H, 5326058HX, 5327045, 5327045NX, 5327045RX, 5501330
Turbo Model	H300VG, HE300VG, HE300
CHRA	N/A
Engine	ISB13, ISB, 6BTA EURO 6
Displacement	6.7L, 6700 ccm
Fuel	Diesel
Angle α (compressor housing)	175°
Angle β (turbine housing)	189°
Bearing Housing	3791604 (Water Cooled)
Turbine Wheel	3768300 (Ind. 69.72 mm, Exd. 59.89 mm, Trm 8.05, 12 Blades)
Comp. Wheel	3599017 (Ind. 57.91 mm, Exd. 84.32 mm, Trm 5.71, 7+7 Blades, Superback) $79.44 NEW IN STOCK
Back plate	4046252 (4046253) $40.00 NEW IN STOCK
Heat shield Number	NEW IN STOCK
Repair Kit	(Major)(1154300755) $90.00 NEW IN STOCK
Nozzle Ring	3799839 $334.08 NEW IN STOCK
VNT kit	$160.00 NEW IN STOCK
Turbine Housing	3779769
Electronic Actuator	5498269 (5452689, 5494878, 5494878NX, 5494878RX, 5498269NX, 5498269RX, 5579127, 5579127HX, 68232771, 68232771AA, 68244609, 68244609AA, 68307025, 68307025AA, 68445522AA, 68481772, 68481772AA, R8481772AA) $808.86
Speed Sensor	5550060 (2839964, 4032806, 4034198, 4034198H, 4327174, 5550060, 5550060H, 5550060HX) $177.02
Gasket Kit	3786285 (33616, GS33616K, MAGGS33616K) $29.07K
Turbine Housing AR	VGT

Applications

2003-12 turbocharger for Dodge Ram 2500 All Engine ISB
