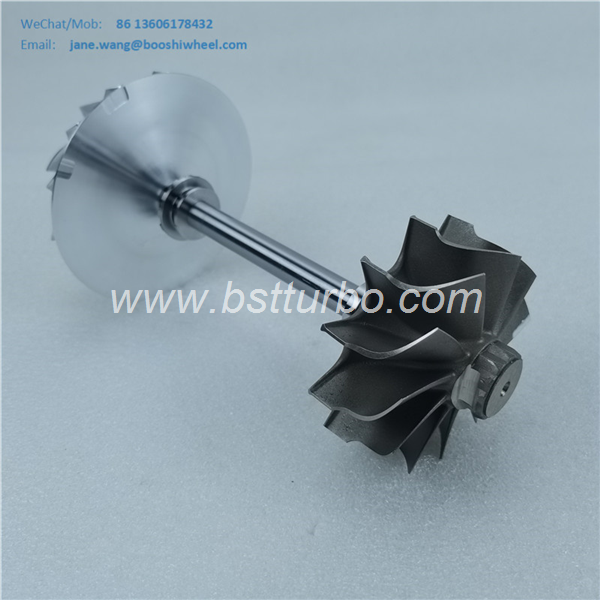

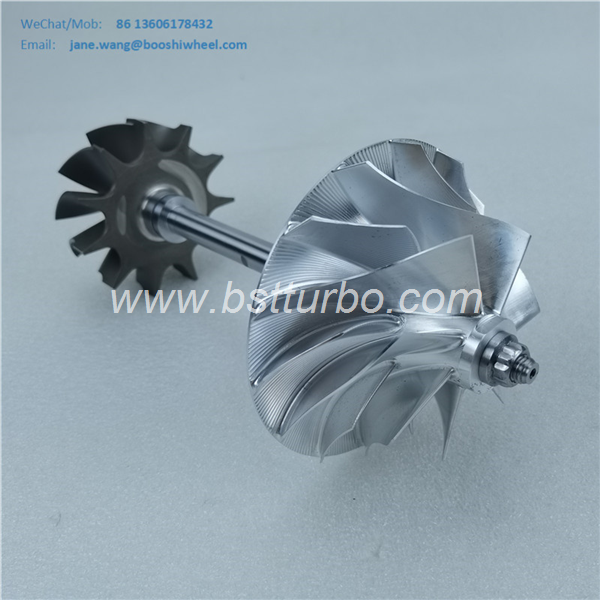

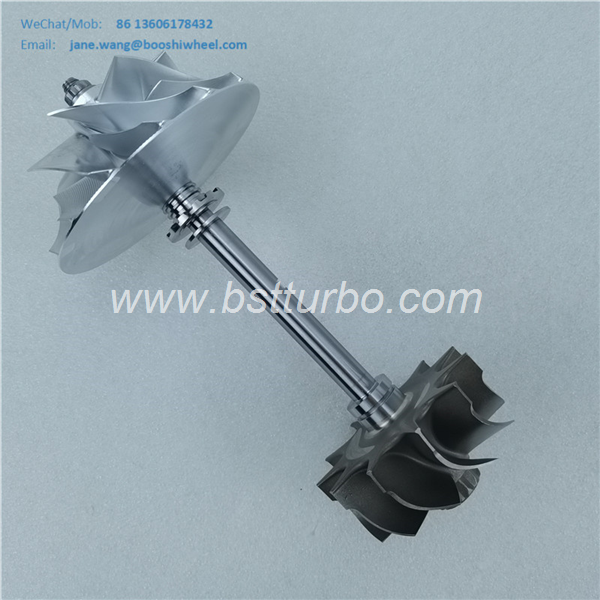

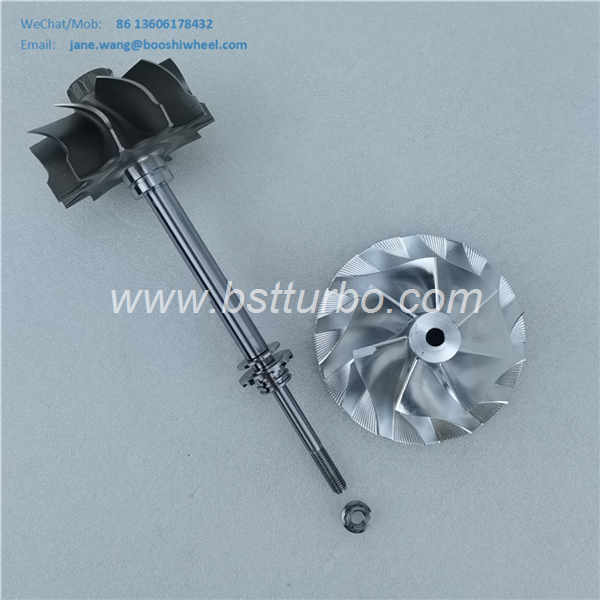

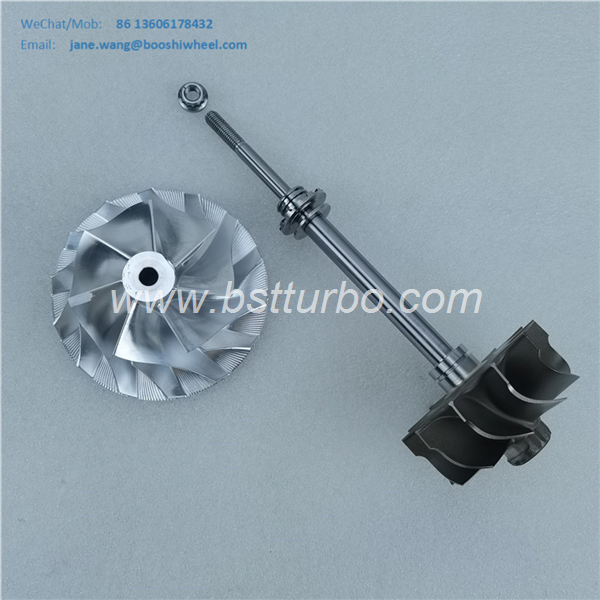

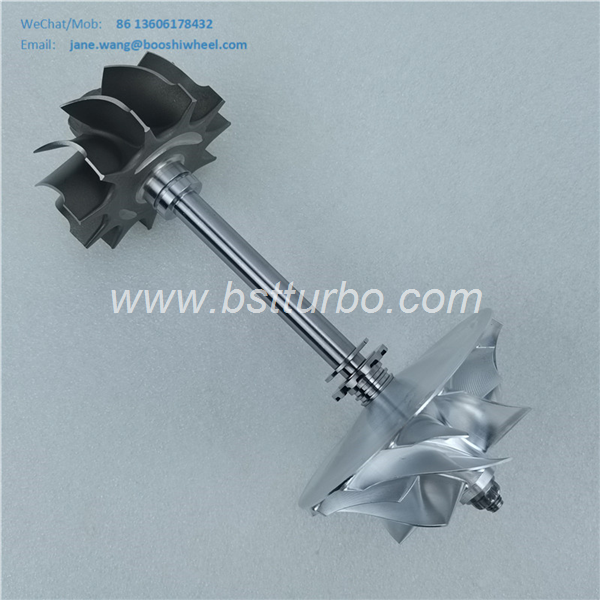

HE451VE Turbo shaft 2882111 288211100 2882111NX 2882111RX 2841220 Turbine wheel rotor for Cummins Various with ISX, QSX Engine

Product description:

Turbo Model : HE451VE, HE400VG rotor

Fuel : Diesel

Part Number : 2882111

Brand Name : Booshiwheel

Engine Manufacturer : 2843481

Displacement : 15.0L, 1500 ccm

OE number : 8773568, 3783568, 2843893, 3792584, 3773566, 3768191, 2882110

Year : 2005-15

Manufacturer Part Number : 2843481

Applications : turbocharger for Cummins Various with ISX, QSX Engine

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com

Specification

Part Number	2882111
Previous Version	2882004NX, 288211100, 2882111NX, 2882111RX, 2841220, 2841221, 2841222, 3768194, 3773569, 3792586, 2882111, 2881807, 2882004, 2840007, 3773562, 3773561, 2882110, 3792586H, 2882110NX, 3792586HX, 288211100HX
Year	2005-10
OE Number	8773568, 3783568, 2843893, 3792584, 3773566, 3768191, 2882110NX
Description	Various Trucks
Manufacturer Part Number	2843481
Turbo Model	HE451VE, HE400VG
CHRA	$1400.00 NEW IN STOCK
Engine	ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X114, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102
Displacement	15.0L, 1500 ccm
Fuel	Diesel
Angle α (compressor housing)	275°
Angle β (turbine housing)	155°
Turbine Wheel	2840238RX (Ind. 66.35 mm, Exd. 71.28 mm, 11 Blades) NEW IN STOCK
Comp. Wheel	(Ind. 61.95 mm, Exd. 92.96 mm, 7+7 Blades, Superback) NEW IN STOCK
Nozzle Ring Assemble	$340.00 NEW IN STOCK
Repair Kit	$124.00 NEW IN STOCK
Turbine Housing AR	VGT
Speed Sensor Kit	4034201H
Gasket Kit	3685535 $21.48
Superseded	5350503
NOTE	This turbo is sold without the Electronic Actuator
Electronic Actuator	4034289H Reman $951.47 Exchange only
NOTE	Actuator it needs to be calibrated to the turbo

Applications

2005-15 turbocharger for Cummins Various with ISX, QSX Engine
