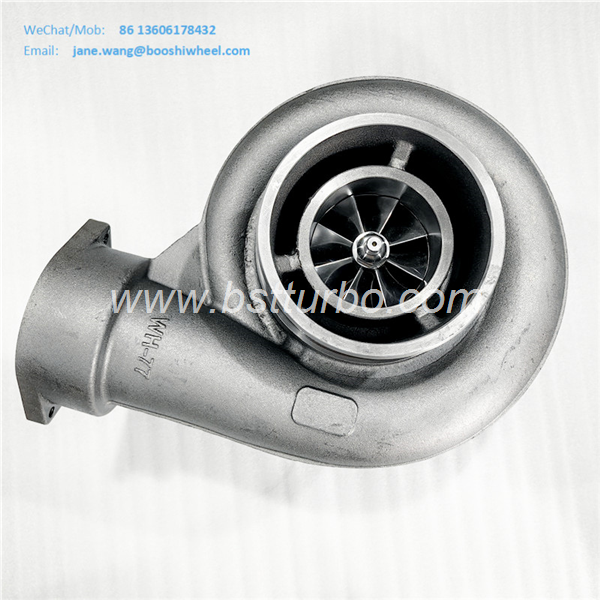

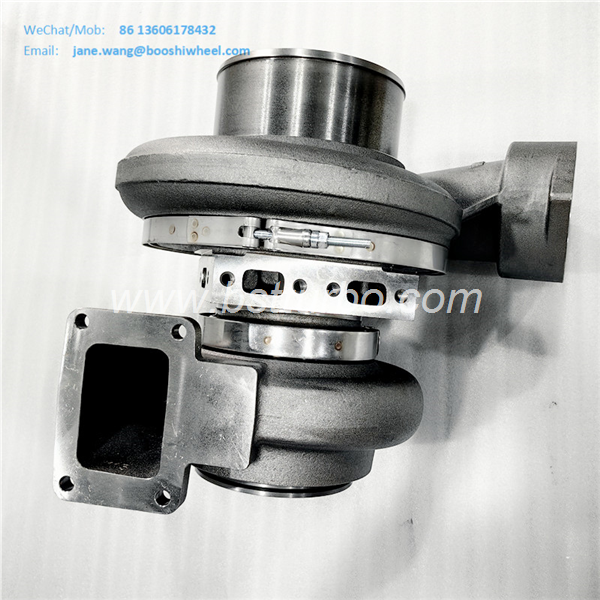

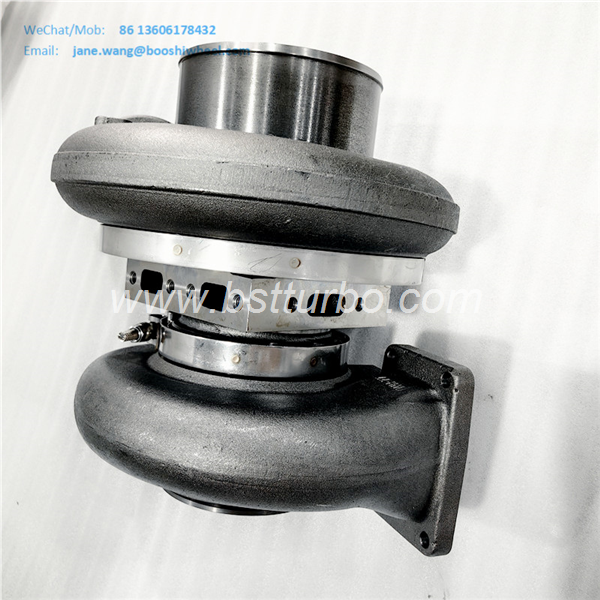

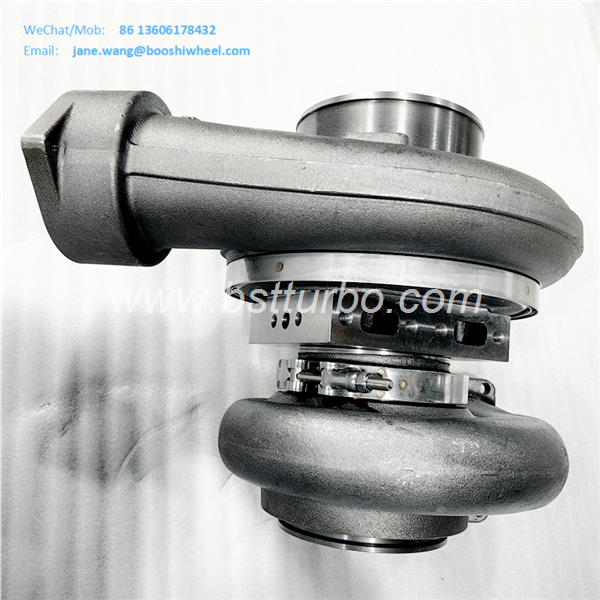

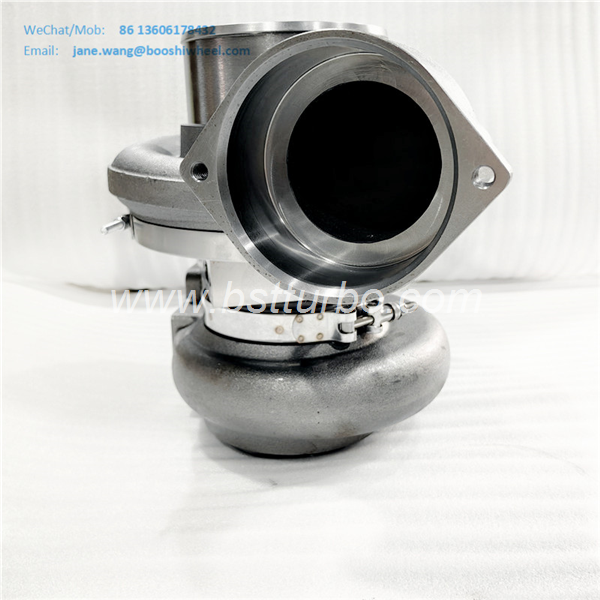

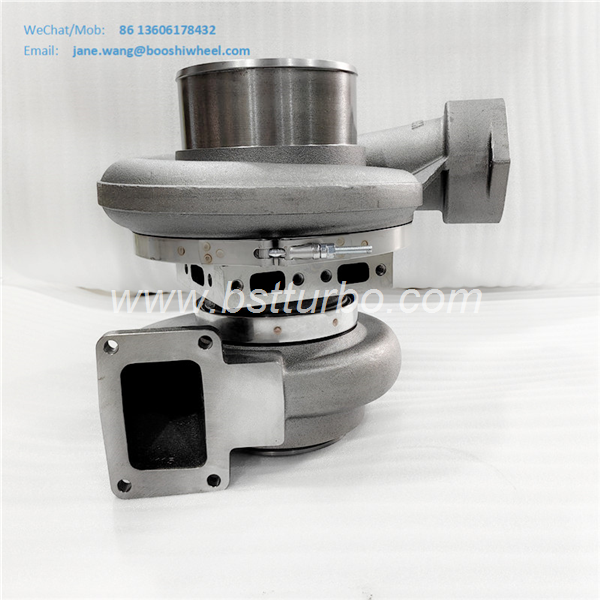

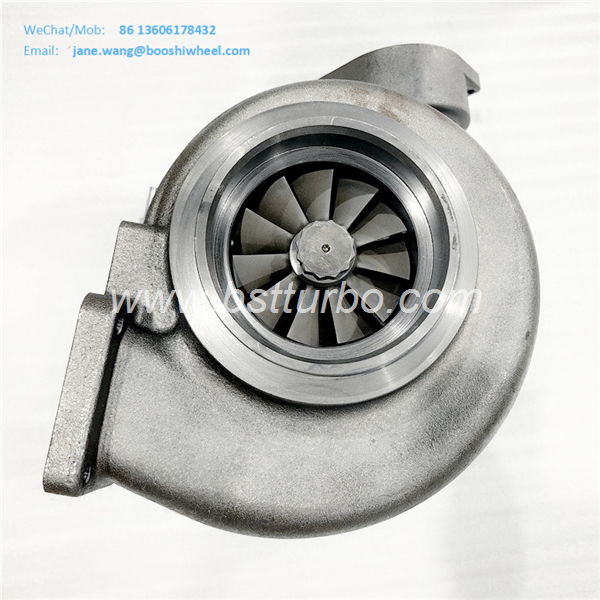

high quality turbo 10R2464 10R-2464 10R6143 10R-6143 10R9057 10R-9057 15009700017 15009880017 turbocharger for engine 3516HD

Product description:

Turbo Model : 10R-2464

Brand Name : Booshiwheel

Engine Manufacturer : 3516HD

OE number : 178663R 20R1112

Manufacturer Part Number : 174858 176865 176865R 178663

Applications : Caterpillar

标签 : CAT,TURBO

Welcome to contact us :

Whatsapp / Wechat :+86 13606178432 Skype : jane.wang_15

QQ: 1127776325

Email:jane.wang@booshiwheel.com



Specification



Part Number 176865
Previous Version 176865R, 178663, 178663R, 15109700009, 1500-970-0017, 1500-988-0017, 15009700017, 15009880017
OE number 3014203, 3371983, 3766453, 2521603, 301-4203, 337-1983, 376-6453, 252-1603, 0R6143, 10R9057, 20R1112 20R-1112, 20R-7915, 20R1112, 20R7915, 301-4203, 3014203, 337-1983, 3371983, 376-6453, 3766453, 396-6006, 3966006, 476865, 478663, 301-4204
Year 2004-10
Description Off-Highway Truck 793D, Machine Engine, Earth Moving
Manufacturer Part Number 174858
CHRA 178844 (178400, 178844R, 174859, 1700702013, 170-070-2013, 478844)(10R-9493, 10R9493, 20R-7920, 20R7920, 252-1786, 2521786, 337-1986, 3371986, 396-6007, 3966007) $3.911.24 NEW IN STOCK
Turbo Model S510C012
Engine C9, 3516 HD
Displacement 70.0L, 7000 ccm
KW 1776/2415
RPM Max 1750
Prefix 7DS, CPW, DSR, KNS, MSK, MSW, MSX, MWJ, SPW, 4AR, 4GZ, ATY, FDB
Fuel Diesel
Machine Engine 3516, 3516B
Off-Highway Truck 793C, 793D
S/N 8WM979-1888, 8WM979-2378, 8WM2379-2920, FDB00001-UP, KNS00001-UP, 8WM2921-UP
Angle a (compressor housing) 310º
Angle ß (turbine housing) 68º
Bearing Housing (671761-8)(Water Cooled) NEW IN STOCK
Turbine Wheel (6564)(Ind. 94.91 mm, Exd. 128.02 mm, Trm 14.55, 11 Blades) NEW IN STOCK
Comp. Wheel (hipped) 175320 (Titanium)(Ind. 86.43 mm, Exd. 127.36 mm, Trm 60, 8+8 Blades, Superback) NEW IN STOCK
Back plate NEW IN STOCK
Heat shield Number NEW IN STOCK
Repair Kit 173611 (318423, 7E-2747) $264.99 NEW IN STOCK
Turbine Housing 2521799 (252-1799) $905.14
Compressor Cover 3014201 (301-4201) $837.69
Gasket oil inlet 1215736 $13.52
Listed $8791.43
Manufacturer Borg Warner - 3K - Schwitzer, BWTS USA



Applications

2004-10 Caterpillar Off-Highway Truck 793D, Machine Engine with C9, 3516 HD Engine
